Sweet Mfg Chrome Steering U-Joint, 3/4 In DD to 3/4 In DD, Universal

SAME DAY SHIPPING! Order within the next 3 hours 10 minutes and receive same day shipping

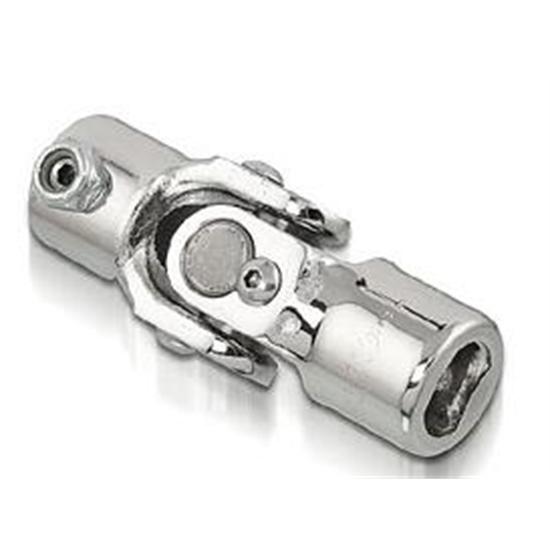

Sweet Mfg Chrome Steering U-Joint, 3/4 In DD to 3/4 In DD, Universal

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Don't jeopardize your safety with inferior quality steering components. Speedway offers only the finest steering U-joints available. Made by Sweet Manufacturing. These steering universal joints feature a double D end to make use of the double D shaft.

  • Full compliment bearings
  • Forged Vanadium steel yokes and u-joint
  • Highest quality for racing
  • Features needle bearing u-joints
  • 1.354" not including the screws (1.534" including), width on the u-joint.
  • 1.125" OD on the ends not including the nut (1.345" including the nut).

Steering U-Joints and Couplers Application Chart (GIF)

Steering Box/Rack/Spline Chart (Link)

Spline Size (Link)

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

Application

When purchasing U-Joints, 3 easy steps will help ensure that they will be correct for your application.

STEP 1
Be sure to measure the diameter of the shaft and count the number of splines on the shaft. Some shafts have a blank spot ground on one side. To get the correct number of splines, use a flat edge and cover the blank half of the shaft through the diameter and count the splines on the other half. Multiply that number by 2, thus giving you the total number of splines on the full circumference of the shaft.

STEP 2

Choose which shaft type best suits your application: 3/4" weld on, 3/4" DD or 1" DD.

STEP 3
With these two pieces of information at hand, refer to our chart to find the appropriate part number of the ujoint for your specific application.

Notes

Tech Tip #1: When using more than two universal joints in a system, a support heim must be used.

Tech Tip #2: Increasing a U-Joint's angle of operation beyond 30° dramatically increases the stress on the joint, weakening the whole steering mechanism. If a greater angle is needed, add another u-joint.

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

can anyone tell me what the width of this UJ (3/4DD) across the knuckle and also overall outside width of the female part of the joint regards Chris

Chris
London UK
April 20, 2011

can anyone tell me what the width of this UJ (3/4DD) across the knuckle and also overall outside width of the female part of the joint regards Chris

Answers

April 21, 2011
Nick
Chris - this is 1.354" not including the screws (1.534" including), width on the u-joint. 1.125" OD on the ends not including the nut (1.345" including the nut).
Page 1 of 1
