Sweet Mfg. 801-70004 Aluminum Quick Release Hub, 3/4 Inch Sleeve

Specs
Material Type:
Aluminum
Color:
Red
Sold in Quantity:
Each
Finish:
Anodized
Overall Diameter:
3.18
Inside Diameter:
.75
Thread Pitch:
5/16"-18
Steering Wheel Style:
3 Bolt
Major Spline Diameter:
1.24
Spline Count:
19
Spline Length:
1.88
MFG. Part #:
801-70004
Garage Sale:
No

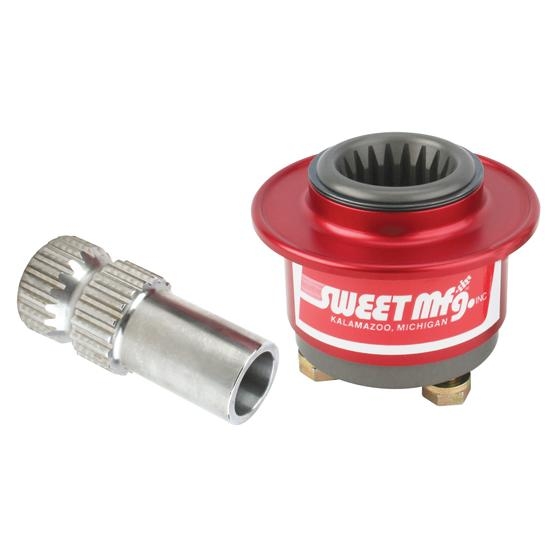

Sweet Mfg. 801-70004 Aluminum Quick Release Hub, 3/4 Inch Sleeve

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

From Sweet Manufacturing come these quick release hubs for 3/4" steering shaft. Splined steel sleeve minimizes slop.

Hubs are available in your choice of steel (gold) or aluminum (red).

Customer Reviews

Rated 5 out of 5 by 3 reviewers.
RATING BREAKDOWN
3 reviews
5 Stars
3
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Tom
Verified Purchaser
Chico, ca

Nice product

July 10, 2015
Slid right over the 3/4 tube and welded right in. No play in the steering wheel at all. Quality product.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Kansas334
Verified Purchaser

Impressed

March 15, 2015
I was pleasently suprised at the fit and finish. There was very little fore and aft play, virtually nothing side to side. The additional shank length made it easy to plug weld to the steering column.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

mod racer 90
Verified Purchaser
Luxemburg, WI

one "sweet" steering coupler

November 11, 2010
Absolutly no slop, put one in every car I ever had, worth the extra money.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

1 questions : 2 answers

2 answers

is the spline made of aluminum or steel. i have a steel steering shaft and i need to weld it all together

Mr. Carlson
Crownsville, md
September 18, 2012

is the spline made of aluminum or steel. i have a steel steering shaft and i need to weld it all together

Answers

January 14, 2013
gunslinger
drill and pin with roll pin
September 19, 2012
Eric
The splined sleeve is made of steel. The quick release portion is made of aluminum.
Page 1 of 1
