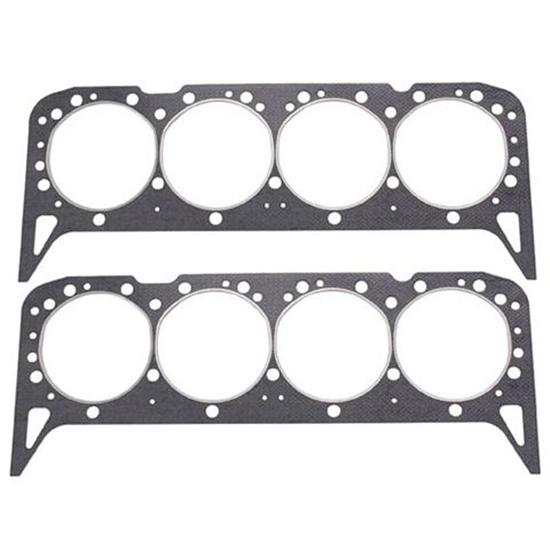

Speedway 1955-76 Small Block Chevy Head Gasket Set

Speedway 1955-76 Small Block Chevy Head Gasket Set

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

Speedway Small Block Chevy (SBC) composite head gaskets use premium materials to ensure a positive seal on any race or street engine. This gasket is sold in pairs.

  • Sold in Pairs
  • 4.0" bore steel shim (.016")
  • Small Block Chevy
  • 1957-1976 Only

NOTE: Only fits 1957-1976 Chevy blocks and heads (they will leak at the bottom of later heads). Will NOT fit 1996-1999 GM "Vortec" 906 heads and 062 heads, or RHS Vortec heads.

Customer Reviews

Rated 5 out of 5 by 4 reviewers.
RATING BREAKDOWN
4 reviews
5 Stars
4
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

billy567
Verified Purchaser
burien .wa
Product Rating

good product

August 26, 2014
These worked on a 1979 sbc 350. They do work on later model engines
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Ozzy2112
Verified Purchaser
San Antonio, TX, USA
Product Rating

If you build it,It will hold!

May 16, 2014
Have built high rev,high out put motors all my life.I have also payed high prices for head gaskets that could,and would handle the power I was pushing.The price,and strength of these head gaskets,are by far the best I have ever used.197 psi per cylinder,and not a problem one.Great buy!!!!!
Pros:
  • the best head gasket on the market.
  • cheap price.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

tl
Verified Purchaser
pa
Product Rating

great compression builder

April 20, 2011
nice
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Bear Racing
Verified Purchaser
Lawndale, CA
Product Rating

easy to install and pleasure to use.

August 29, 2010
I like that this shim can be used with mls gaskets.
Pros:
  • Easy Installation
  • D
  • Works with mls
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

5 questions : 10 answers

Are these simular to the felpro 1094 brand?

2 answers
br549
February 07, 2013

Are these simular to the felpro 1094 brand?

Answers

July 20, 2013
dirtracer66
they are similar, yet a little different. the fel-pro 1094 is a 4.100" bore with .015" compressed thickness, and is a bare steel shim that needs to have a sealer applied to it. these gaskets are 4.165" bore with .024" thickness, is a steel shim that is already coated and ready to install. so if you are using a 400 block, you will need to use these ones, if you want a shim. there are no steam holes for 400 in either of them.
February 07, 2013
Jason
These gaskets are similar to the Fel-Pro but have a different coating on them than the FePro 1094

Can these gaskets be used by themselves to increase compression or do they have to be used with other gaskets?

3 answers
br549
February 07, 2013

Can these gaskets be used by themselves to increase compression or do they have to be used with other gaskets?

Answers

May 17, 2014
Ozzy2112
Yes they can.Being that thickness is .015 compressed,compression change.No other gasket needed.
July 20, 2013
dirtracer66
it is its own gasket, nothing else is required, it is not a head saver shim, it is an actual gasket.
February 07, 2013
Jason
This set of Super Seal head gaskets are intended to be used with out any other gasket. These gaskets are only applicable to the 1957-76 chevy blocks and heads due to the design of the gasket, they will leak water on later models. Will not work with Vortec heads

Do they work on AFR air flow research #1034 aluminum sb heads ?

1 answers
S.New Jersey
January 24, 2012

Do they work on AFR air flow research #1034 aluminum sb heads ?

Answers

January 25, 2012
Eric
No these steel shim gaskets would not be recommended for your aluminum heads. AFR recommends Fel-Pro gasket 1003 for all applications except for 400. If your engine is a 400 then use Fel-Pro 1034. We have both of these gaskets in stock as part numbers 344-1003 and 344-1034 respectively.

Will they work on a 350 crate motor or goodwrench

3 answers
Steve
Matawan, NJ
September 05, 2011

Will they work on a 350 crate motor or goodwrench

Answers

May 17, 2014
Ozzy2112
Yes they will,have used them on all small block chevy motors,but the 400.
July 20, 2013
dirtracer66
yes they will, you will pick up about .25 of a compression ratio.
September 06, 2011
Jason
"THIS IS ONLY APPLICABLE TO 1957-76 CHEVY BLOCKS AND HEADS. DUE TO THE DESIGN OF THE GASKET, THEY WILL LEAK COOLANT AT THE BOTTOM OF LATER MODEL HEADS.

sbc 57-76 heads. What is difference between these heads and later heads? Why different head gaskets?

1 answers
Roofer Ron
Prescott AZ
June 01, 2011

sbc 57-76 heads. What is difference between these heads and later heads? Why different head gaskets?

Answers

June 03, 2011
Jason
The difference is steam holes in the gaskets or no steam holes and newer heads are shaped different at the bottom of head and these gasket will leak water if used on newer style heads.
Page 1 of 1

You may also be interested in:

Fel-Pro P1003 S/B Chevy 265-400 Steel Ring Head Gasket 4.166 Inch Bore
(Part #3441003)


These Fel-Pro gaskets work with both cast iron and aluminum heads. Pre-flattened steel wire ring gaskets have the strength of steel wire sealing with minimum brinelling of aluminum heads. Pre-flattened copper wire ring gaskets will not brinell aluminum heads. They offer superior heat dissipation. Multi-layer steel gaskets offer current leading-edge technology and provide a long-term, leakproof seal called Perma Torque MLS.

  • Gaskets are sold each
  • Pre-flattened steel wire
  • Nominal compression thickness: .041"
  • Compressed volume: 9.1 cc
  • 4.166" bore gaskets can be used on 400 race engines with up to 4.155" max bore with minimal chamfer
  • When using aluminum heads, we recommend gaskets with soft copper wire rings (such as 344-1010). This ensures that the aluminum head is not "scarred" by the combustion seal. Shim style 344-1094 will also work well with aluminum heads.

Head Gasket Application (JPEG)

Speedy Tip for Proper Head Gasket Seal (GIF)

Fel-Pro 1094 S/B Chevy 265-350 Head Gasket, Embossed Ring, 4.100 Bore
(Part #3441094)


These Fel-Pro gaskets work with both cast iron and aluminum heads. Pre-flattened steel wire ring gaskets have the strength of steel wire sealing with minimum brinelling of aluminum heads. Pre-flattened copper wire ring gaskets will not brinell aluminum heads. They offer superior heat dissipation. Multi-layer steel gaskets offer current leading-edge technology and provide a long-term, leakproof seal called Perma Torque MLS.

  • Gaskets are sold each
  • Embossed shim
  • 4.100" gasket bore
  • Nominal compression thickness: .015"
  • Compressed volume: 3.2 cc
  • Not for use with small block 400. Extra thin to increase compression.
  • When using aluminum heads, we recommend gaskets with soft copper wire rings (such as 344-1010). This ensures that the aluminum head is not "scarred" by the combustion seal. Shim style 344-1094 will also work well with aluminum heads.

Head Gasket Application (JPEG)

Speedy Tip for Proper Head Gasket Seal (GIF)

Speedway S/B Chevy 400 Head Gaskets, 4.125 In Bore w/Steam Holes
(Part #91010202)


Speedway Small Block Chevy (SBC) composite head gaskets use premium materials to ensure a positive seal on any race or street engine.

Sold as each.

Speedway 1976-85 Chevy 305 Complete Gasket Set
(Part #91010249)


Speedway Chevy gaskets are for 2-piece rear main blocks. Oil pan gasket can be used with either RH or LH dipsticks and includes both thin and thick seals. Valve cover gaskets are 5/16" rubberized cork suitable for racing.

  • Suitable for engines up to 600 h.p.
  • Intake Gasket: 1205 style, 1.28" x 2.09"
Gasket Set Includes:
  • Valve Cover
  • Timing Cover
  • Head Gasket
  • Intake Gasket
  • Oil Pan Gaskets
  • Front Seal
  • Rear Seal
  • Water Pump
  • Distributor
  • Fuel Pump
  • Fuel Pump Block
Speedway Small Block Chevy 400 Head Gaskets, 4.165 Inch Bore
(Part #91010226)


Speedway Small Block Chevy (SBC) composite head gaskets use premium materials to ensure a positive seal on any race or street engine.

Sold as each.
