Polished, chrome plated steel body shocks with 5/8" I.D. urethane bushings. Note: Not for use with coil-over springs. Pro Street Rod Shock Chart (GIF) This shock is garage sale priced because the chrome is peeling on the body. NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS
Replacement hardware and parts for AFCO Hot Rod/Street Rod coilovers.
Speedway Curtis-style radius rods have a classic shape that's more distinctive than most hairpin-style designs. At 36" in length, these are ideal for non-fendered street rods. The axle ends are tapped 5/8" NF RH threads, while the chassis ends have female 11/16" RH threads to accept Ford tie rod ends for the perfect nostalgic touch. NOT for use with rear suspension.
These premium aluminum bodied shocks are not a revalved race shock - they were built specifically for street rods. QA1 shocks feature 18 easily adjustable rebound settings to fine tune your hot rod's ride. Springs NOT included. Billet aluminum shock body 5/8" centerless ground, hard chrome plated, solid piston rod Deflective Disc Valving 3-step sealing system 18-position adjuster knob changes the rebound valving Allows suspension control in one easy-to-reach location 100% dyno tested and serialized Revalveable and rebuildable by QA1 authorized service centers Note: Shock lengths ...
These premium aluminum bodied shocks are not a revalved race shock - they were built specifically for street rods. QA1 shocks feature 18 easily adjustable rebound settings to fine tune your hot rod's ride. Springs NOT included. 13-3/4" - 14-1/4" @ ride height 17" extended, 11-5/8" compressed Use 12" spring Width of Mount Bushings: 1.25" Note: Shock lengths represent approximate mounted length at ride height. Coil Over Mounting Guide (GIF) Coil Over Mount Illustration (Link) This shock is garage sale priced because it has been installed and returned. What you see is what ...
Pro shocks new aluminum small body coil over shocks are 3-way adjustable . They are fitted a with 2-1/2" chrome spring and aluminum coil over kit and make one of the cleanest coil overs on the market for your street rod. Each shock features urethane mounting bushings with both 1/2" and 5/8" mounting sleeves. Suggested Installed Height: 13-1/4” to 13-1/2” Adjustment Instructions (GIF)
Pro shocks new aluminum small body coilover shocks are 3-way adjustable . They are fitted a with 2-1/2" chrome spring and aluminum coilover kit and make one of the cleanest coil overs on the market for your street rod. Each shock features urethane mounting bushings with both 1/2" and 5/8" mounting sleeves. Suggested Installed Height: 13-1/4” to 13-1/2” Adjustment Instructions (GIF)

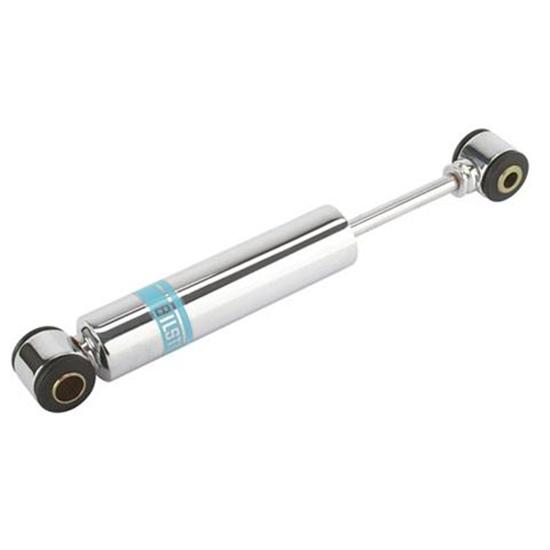

You will find Bilstein shocks as standard equipment on all the European sports and luxury cars. Now you can have Bilstein shocks for your street rod as well. Beautifully chrome plated. 7/16" top bushing and 5/8" bottom. The inner sleeve is 3/4" on these shocks so removing the sleeve will net a 3/4" I.D. and will not work on shock mounts with a smaller O.D. Main body is 8-3/4" long to the center of the mounting bushing
See Application tab for specific fittment information. AFCO's Eliminator BNC Valving Twin Tube Double Adjustable Shocks eliminate bounce. The BNC shocks are designed to better absorb the impact of the car after a wheel stand launch. Works great in Stock, Super Stock, Outlaw 10.5, True Street, and other drag racing classes. 106-3870FBNC Body Mount: Tie Bar Mount w/ 2.625" bolt centers Shaft Mount: 1/2" I.D. Bearing (1.06" wide) Lightweight aluminum construction also helps dissipate heat Rebound settings are adjusted via a shaft-mounted knob with 32 clicks Compression settings are adjusted ...
