Stewart Warner 82171 Heavy Duty Tachometer, Electric, 3-3/8 Inch

Specs
Sold in Quantity:
Each
Overall Diameter:
3.69
Gauge Type:
Electric
Stud Diameter:
.16
Lighted:
Yes
Depth:
3.40
Bezel Finish:
Black Paint
Liquid Filled:
No
Gauge Face:
Black
Body Length:
2.45
Body Diameter:
3.33
MFG. Part #:
82171
RPM Range:
0-8000 RPM measurement range.
Lettering Color:
White
Needle Color:
White
Garage Sale:
No

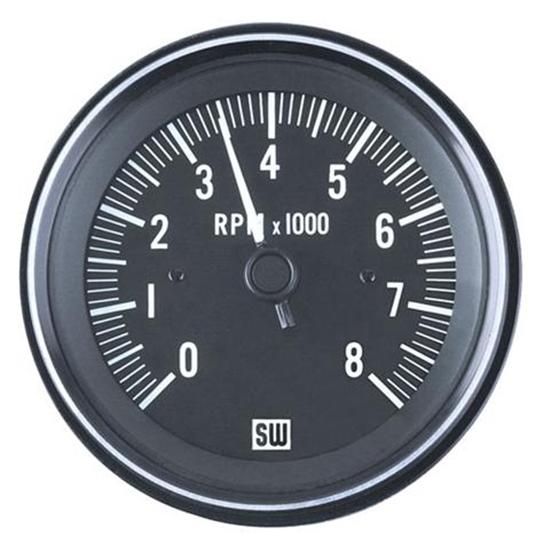

Stewart Warner 82171 Heavy Duty Tachometer, Electric, 3-3/8 Inch

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Stewart Warner Heavy Duty Series gauges feature bold white graphics on black face, 270° sweep dials with white pointers. The black raised bezel has a distinctive brushed bright rim and the patented 12 volt light ring provides excellent night-time visibility.

Works on nearly any 12 volt, negative ground engine of 4, 6 or 8 cylinders with points-type or electronic ignitions. 8,000 RPM. 3-3/8" diameter.

Item Details

Electric

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

WBSam
Verified Purchaser
Dearborn, MI, USA
Product Rating

Easy to install

July 25, 2014
This was a perfect fit as a replacement of the stock in dash tach of my 62 GT Hawk.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1
665D997J

Product Q&A

4 questions : 5 answers

1 answers

: What accessories go with this? Is a rear cup and steering column mount available for this tach? Thanks,John.

chargerjohn
Northeast,USA
March 02, 2015

: What accessories go with this? Is a rear cup and steering column mount available for this tach? Thanks,John.

Answers

March 03, 2015
EricM
Sorry we do not offer a tach cup or column mount for this tach. It is intended for an in dash mounting.
1 answers

is this tacho fit to gr caravan 2010

mimche
Montreal, QC, Canada
November 02, 2013

is this tacho fit to gr caravan 2010

Answers

November 04, 2013
Jason
This Stewart Warner tach is a universal mount application. It fits a 3-3/8" tachcup, 3.40" deep and has a face diameter of 3.69".
2 answers

Will the tach work for "in-dash" application?

Carp65malibu
Henderson,NV
March 27, 2011

Will the tach work for "in-dash" application?

Answers

March 16, 2015
hotrod1967
In my application this gauge fit fine. I did machine spacer rings for the tach and speedo as my instrument panel is custom and can fit larger import gauges.
March 30, 2011
Bill
You can mount this tach in a dash panel or gauge holder as this is a universal tach. Works on nearly any 12 volt, negative ground engine of 4, 6 or 8 cylinders with points-type or electronic ignitions. 270° needle sweep. 8,000 RPM Tach. 3-3/8" diameter.
1 answers

What is the outside bezel diameter of this gauge?

Ronnie B
Wilson, NC
November 11, 2011

What is the outside bezel diameter of this gauge?

Answers

November 11, 2011
Jason
The od of the lip on bezel is 3.700". The od of outer face is 3.50"
