Standard Steel Heim Joint Rod Ends, 3/16 Inch (10-32) RH Female

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Steel
Finish:
Natural
Hole Diameter:
0.1875
Thread Pitch:
10-32
Threads:
RH Female
Standard Steel Heim Joint Rod Ends, 3/16 Inch (10-32) RH FemaleStandard Steel Heim Joint Rod Ends, 3/16 Inch (10-32) RH Female

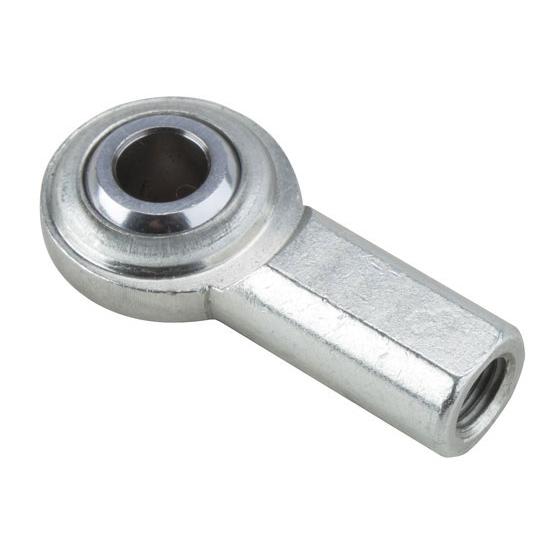

Standard Steel Heim Joint Rod Ends, 3/16 Inch (10-32) RH Female

Click image to enlarge

Speeday Motors Logo
X
Standard Steel Heim Joint Rod Ends, 3/16 Inch (10-32) RH Female

Details

Reviews

Q & A

What's in the Box

Standard rod ends are for general purpose applications and are a 2-piece design with a low carbon steel body and a hardened steel ball without a race (metal to metal contact).

Applications: Clutch, brake, steering linkage, & suspension components on moderate horsepower applications.

Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Item Details

10-32
