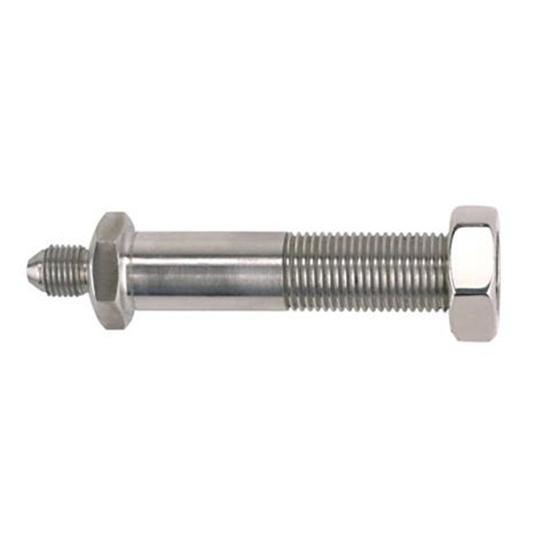

Stainless Thru-Frame Brake Line Fittings, 2-1/4 - 2-3/4 Inch

Specs
Sold in Quantity:
Pair
Finish:
Polished
Angle:
Straight
Material Type:
Stainless Steel
Thread Pitch:
9/16"-18
Fitting End A:
-3 AN male
Fitting End B:
1/8" NPT female
Overall Length:
3.92
Shank Length:
3.125
Shank Diameter:
0.545
Notes
Requires drilling a 9/16" hole in your frame rail.
Stainless Thru-Frame Brake Line Fittings, 2-1/4 - 2-3/4 Inch
Product Video
Stainless Thru-Frame Brake Line Fittings, 2-1/4 - 2-3/4 Inch

Click image to enlarge

Watch the video below to learn more about the differences in brake lines, flare types and fittings you may want to consider before plumbing away on your current chassis project.

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

Use these 100% stainless steel fittings to eliminate unsightly tabs and clamps from your frame rails. Each fitting has -3 AN male threads on one end and 1/8" NPT female threads on the other. Fits frame rails 2-1/4" to 2-3/4" wide.

Sold in pairs.

Item Details

1/8" NPT female to -3 AN male

Customer Reviews

Rated 4.7 out of 5 by 9 reviewers.
RATING BREAKDOWN
9 reviews
5 Stars
6
4 Stars
3
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Nonsence
Verified Purchaser
El Cajon, CA, USA

Great Product, However!

April 08, 2015
Actually the frame fittings are too long and if you cut them off the 1/8 NPT internal thread is not deep enough, and I purchase a brand new tap from MSC and another from ENCO and they both broke, so I decided to purchase a second set and just leave them the full lenght, which is not as custom. Have them made with 1/2 inch deeper internal thread!
Pros:
  • great if used full length
Cons:
  • not great if have to cut
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Charlie51
Verified Purchaser
Elizabeth City, NC, USA

Good product.

April 02, 2015
This thru-frame brake line fitting is just what I was looking for to make my brake runs on my hot rod frame neat and clean. The fitting is quality made, looks good, and will last a long time.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Jammer37
Verified Purchaser
Lindenhurst, IL, USA

Good quality

March 13, 2015
Very nice piece, wish I had the choice of which thru frame fitting I could put in the kit
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Chucho
Verified Purchaser
Joliet, IL, USA

this product will give your project a pr

March 08, 2015
For anyone building a hotrod this product will give your project a professional finish. I use this product on my last project and they look great on the chassis.
Pros:
  • gives your chassis a clean look.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

eodcowboy
Verified Purchaser
San Diego, CA, USA

Excellent product at a great price!

October 15, 2014
This is a great product with an unbeatable price!!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Mr65390
Southington, CT, USA

Quality stainless parts.

August 22, 2014
Nice thru frame fitting.I purchased them thinking they would work.But my application needs another solution.I sent them back and the company refuned my cc no questions.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Mr Larry
Verified Purchaser
Illinois

be careful on installation

July 15, 2012
Nice product to clean up brake plumbing. Be SURE to use anti-seize prior to installation or test fitting, as threads may gall after one test fitting ! (mine did)
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

129fordroadster
Verified Purchaser
Arizona

The right product for the right price.

September 23, 2011
Building all home made roadster pickup, and Speedway is the best in parts and getting them to your door. F A S T
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

tf
Verified Purchaser
GA.

brake fitting

September 05, 2011
What I wanted
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

1 questions : 1 answers

1 answers

What fittings would I use to go from the -3n to my brake line and to my tubing. I am using 33/8 tubing and 3/8-24 lines.

reward
April 18, 2013

What fittings would I use to go from the -3n to my brake line and to my tubing. I am using 33/8 tubing and 3/8-24 lines.

Answers

April 18, 2013
Jason
The thru-frame fitting has AN 3 male threads on one end and 1/8" NPT female threads on the other. We offer part #91031831 to connect hard line. This is designed to use AN 3 lines to caliper.
