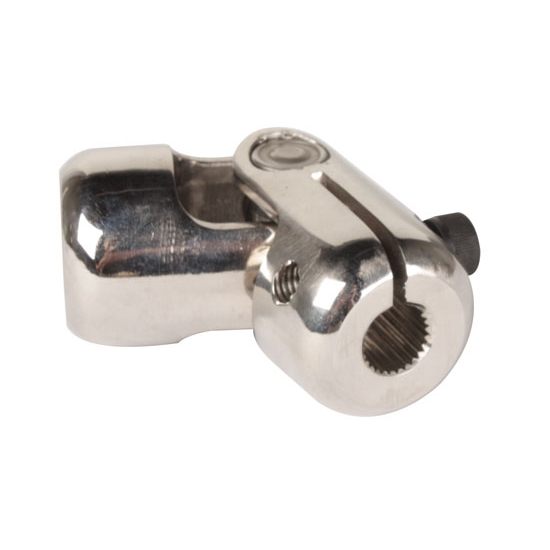

Unisteer 8050430 Steering U-Joint-9/16 In-26 Spline to 3/4 Inch Smooth

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Stainless Steel
Overall Length:
3.75
Sold in Quantity:
Each
Finish:
Polished
Outside Diameter:
1.25
End #1:
3/4 inch Round
End #2:
9/16"-26 spline
Spline OD:
.5625
Spline Count:
26
MFG. Part #:
8050430
Set Screw Included:
Yes
Max Operating Angle:
30
Unisteer 8050430 Steering U-Joint-9/16 In-26 Spline to 3/4 Inch SmoothUnisteer 8050430 Steering U-Joint-9/16 In-26 Spline to 3/4 Inch Smooth
Unisteer 8050430 Steering U-Joint-9/16 In-26 Spline to 3/4 Inch Smooth

Click image to enlarge

Speeday Motors Logo
X
Unisteer 8050430 Steering U-Joint-9/16 In-26 Spline to 3/4 Inch Smooth

Details

Reviews

Q & A

What's in the Box

These polished stainless steel U-joints look & function beautifully and use non-pinch bolts which will need to be either welded, cross-drilled and pinned or bolted.

The outside diameter of this steering universal joint is approximately 1.25" and the length is approximately 3.75"

Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Application

When purchasing U-Joints, 3 easy steps will help ensure that they will be correct for your application.

STEP 1
Be sure to measure the diameter of the shaft and count the number of splines on the shaft. Some shafts have a blank spot ground on one side. To get the correct number of splines, use a flat edge and cover the blank half of the shaft through the diameter and count the splines on the other half. Multiply that number by 2, thus giving you the total number of splines on the full circumference of the shaft.

STEP 2
Choose which shaft type best suits your application: 3/4" weld on, 3/4" DD or 1" DD.

STEP 3
With these two pieces of information at hand, refer to our chart to find the appropriate part number of the ujoint for your specific application.

Notes

Tech Tip #1: When using more than two universal joints in a system, a support heim must be used.

Tech Tip #2: Increasing a U-Joint's angle of operation beyond 30° dramatically increases the stress on the joint, weakening the whole steering mechanism. If a greater angle is needed, add another u-joint.

Item Details

Stainless Steel
Not a pinch bolt style u-joint

You may also be interested in:

Steel Heim Joint Rod Ends for Steering Shaft, 3/4-16 RH Male .757 Hole
                        3/4" heim for steering shaft.  Has .757 ball hole. Slides right over standard 3/4" steering shaft. 3/4" NF right hand threads. Jam nut sold separately.


Sweet Mfg Steering U-Joint, 9/16 Inch 26-Spline to 3/4 Round, Mustang II Manual


Don't jeopardize your safety with inferior quality steering components. Speedway offers only the finest steering U-joints available. Made by Sweet Manufacturing. These steering universal joints have 3/4 weld-on ends.

  • Full compliment bearings
  • Forged Vanadium steel yokes and u-joint
  • Highest quality for racing or street
  • Features needle bearing u-joints
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

Sweet Mfg. Double Steering U-Joint, 9/16 Inch-26 Spline to 3/4 Inch Round, MII


Sometimes you need just a little bit more clearance than a standard steering u-joint can give you. Our double u-joints allow up to 70 degrees of angle or 1" of offset for just those occasions. These steering universal joints are made of forged vanadium steel and real needle bearing joints.  5-5/8" overall length.

Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.



3/4 O.D. Solid Steel Steering Shaft


Speedways steering shaft is made for you to cut-to-fit. This steering shaft entails:

  •  3/4" O.D.
  • 1018 solid steel steering shaft
  • Available in 24", 36", 48", 60" and 72" lengths



Steer Shaft Application Chart

Firewall Mount Flanged Bearing for Steering Shaft
                        This firewall mount allows up to 30° of mis-alignment. Includes ball with two pressed steel flanges with 5/16" square mounting holes.

Choose 3/4" (750) or 1" (1000) shaft size.

91032375-1000

  • Height: .74"
  • Length: 3.00"
  • Width: 1.90"
  • Mount C to C: 2.26"
91032375-750
  • Height: .87"
  • Length: 3.00"
  • Width: 1.90"
  • Mount C to C: 2.26"
Steering Shaft Aluminum Heim Joint Rod Ends, 3/4-16 RH Male, .757 Hole
                        3/4" heim for steering shaft.  Has .757 ball hole. Slides right over standard 3/4" steering shaft. 3/4" NF right hand threads. Jam nut sold separately.

Unisteer 8050420 Steering U-Joint, 3/4 Inch Smooth to 3/4 Inch Smooth


These polished stainless steel U-joints look & function beautifully and use non-pinch bolts which will need to be either welded, cross-drilled and pinned or bolted. These steering universal joints are 3-3/4 inch in total length and have a 1.650 inch diameter.

  • The OD is 1.650" (41.90mm)
  • 3-3/4" in total length
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.
Unisteer 8050330 Steering U-Joint-3/4 Inch Double D to 3/4 Inch Smooth


These polished stainless steel U-joints look & function beautifully and use non-pinch bolts which will need to be either welded, cross-drilled and pinned or bolted. These steering universal joints are 3-3/4 inches in length and have an outside diameter of 1.650 inches.

  • The OD is 1.650" (41.90mm)
  • 3-3/4" in total length
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

NOTE:  These u-joints contain a safety feature that requires the DD steering shaft to be notched for pinch bolt clearance. Once notched, the pinch bolt MUST be torqued to 45 ft/lbs to ensure a tight fit.

Unisteer 8050300 Steering U-Joint, 3/4 Inch Double D to 3/4 Inch DD


These polished stainless steel steering U-joints look great and use a pinch bolt on each end for easy installation.

This particular steering universal joint is made to fit 3/4"DD shafting on both sides. Both sides incorporate the pinch bolt design.

Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

NOTE:  These u-joints contain a safety feature that requires the DD steering shaft to be notched for pinch bolt clearance. Once notched, the pinch bolt MUST be torqued to 45 ft/lbs to ensure a tight fit.

Unisteer 8050310 Steering U-Joint-1 Inch Double D to 3/4 Inch Double D


These polished stainless steel U-joints look great and use a pinch bolt on each end for easy installation.

This is a size that is used on some large GM steering columns. This specific steering universal joint uses a pinch bolt fastener on the 3/4"DD side and a set screw on the 1"DD side, due to the large size

Steering U-Joints and Couplers Application Chart (GIF)

Steering Box/Rack/Spline Chart (Link)

Spline Size (Link)

NOTE:  These u-joints contain a safety feature that requires the DD steering shaft to be notched for pinch bolt clearance. Once notched, the pinch bolt MUST be torqued to 45 ft/lbs to ensure a tight fit.

Fits IDIDIT/Flaming River 1" Double D

Unisteer 8050290 Steering U-Joint, 5/8 Inch-36 Spline to 3/4 Inch DD


These polished stainless steel U-joints look great and use a pinch bolt on each end for easy installation.

  • The OD is 1.650" (41.90mm)
  • 3-3/4" in total length

This universal joints size is 5/8"-36 count spline by 3/4" DD Shaft. It is the common size for the Vega style steering box.

Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

NOTE:  These u-joints contain a safety feature that requires the DD steering shaft to be notched for pinch bolt clearance. Once notched, the pinch bolt MUST be torqued to 45 ft/lbs to ensure a tight fit.

Unisteer 8050850 Steering U-Joint, 3/4 Inch 36-Spline to 3/4 In Smooth


These polished stainless steel steering U-joints look & function beautifully and use non-pinch bolts which will need to be either welded, cross-drilled and pinned or bolted These steering universal joints are 3-3/4 inch in length and are 1.650 inch in outside diameter.

  • The OD is 1.650" (41.90mm)
  • 3-3/4" in total length
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.
Unisteer 8050230 Steering U-Joint, 9/16 Inch-26 Spline to 3/4 Inch DD


These polished stainless steel U-joints look great and use a pinch bolt on each end for easy installation. These universal joints are 3-3/4 inch in length and have a 1.650 inch outside diameter.

  • The OD is 1.650" (41.90mm)
  • 3-3/4" in total length

This size of spline works with Unisteer's Cross Steer Rack & Pinion, Prostock Rack, and Manual Camaro Rack & Pinion and is also the size of manual Mustang Style Rack & Pinions.

Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

NOTE:  These u-joints contain a safety feature that requires the DD steering shaft to be notched for pinch bolt clearance. Once notched, the pinch bolt MUST be torqued to 45 ft/lbs to ensure a tight fit.

Unisteer 8050880 Steering U-Joint, 3/4 Inch-36 Spline to 3/4 Inch DD


These polished stainless steel steering U-joints look great and use a pinch bolt on each end for easy installation.

This particular steering universal joints Size is 3/4"-36 count spline by 3/4"DD. This is the size that is used on Ford Power rack & pinions such as the Mustangs. This U-joint uses pinch bolt fasteners on either side.

  • The OD is 1.650" (41.90mm)
  • 3-3/4" in total length
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

NOTE:  These u-joints contain a safety feature that requires the DD steering shaft to be notched for pinch bolt clearance. Once notched, the pinch bolt MUST be torqued to 45 ft/lbs to ensure a tight fit.

Flat Heim Joint Rod End Support Bracket
                        Overall length of 3 1/2 inches long.  Offered with a 3/4 clearances hole for steering heim with a slotted adjustment of 1 7/8 inch long. Bracket is 3/16 thick steel.

Steering Shaft, 3/4 Inch O.D, Double D Polished Stainless Steel


Steering shafts that are just plain looking look kind of silly with those shiny stainless steel U-joints. Our polished, stainless steel, double D steering shaft would be more compatible. We offer steering shafts in 18", 22", and 36" cut to fit lengths.
