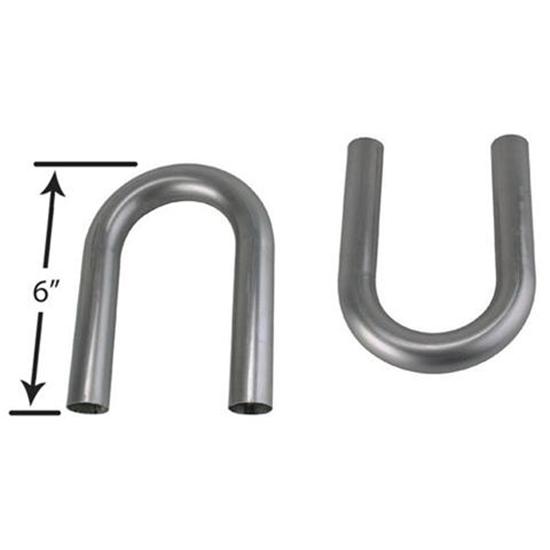

Stainless Steel Exhaust U-Bends, 2-1/4 Inch O.D.

Specs
Material Type:
Stainless Steel
Overall Width:
8.50
Overall Length:
-
Sold in Quantity:
Each
Finish:
-
Outside Diameter:
2.25
Center to Center:
-
Bend Style:
U-Bend
Material Thickness:
.059
Mandrel Bent:
Yes
Garage Sale:
No
Notes
8 inches of tube from bend. 304 grade stainless steel, annealed to A269 condition (prevents work hardening during construction/fabrication).
Stainless Steel Exhaust U-Bends, 2-1/4 Inch O.D.
Stainless Steel Exhaust U-Bends, 2-1/4 Inch O.D.

Click image to enlarge

Speeday Motors Logo
X
Stainless Steel Exhaust U-Bends, 2-1/4 Inch O.D.

Details

Reviews

Q & A

What's in the Box

Mandrel bent 304 stainless steel U-bends. For building your own headers or replacing bent or damaged header tubing. Exhaust tubing is annealed to A269 condition, which prevents work hardening during the construction and fabrication process.

  • Choose polished or raw stainless header pipe
  • 2-1/4" O.D. tubing
  • 3.125" radius
