Stainless Steel Dietz Type Headlights, Standard Bulb

Free Shipping Free Shipping
Specs
Sold in Quantity:
Pair
Finish:
Polished
Overall Diameter:
7.00
Stud Length:
1/2"-13
Lens Color:
Clear
Bulb Type:
H-4
Housing Material:
Stainless Steel
Garage Sale:
No
Stainless Steel Dietz Type Headlights, Standard Bulb
Stainless Steel Dietz Type Headlights, Standard Bulb
Stainless Steel Dietz Type Headlights, Standard Bulb
Stainless Steel Dietz Type Headlights, Standard Bulb
Stainless Steel Dietz Type Headlights, Standard Bulb
Stainless Steel Dietz Type Headlights, Standard Bulb

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

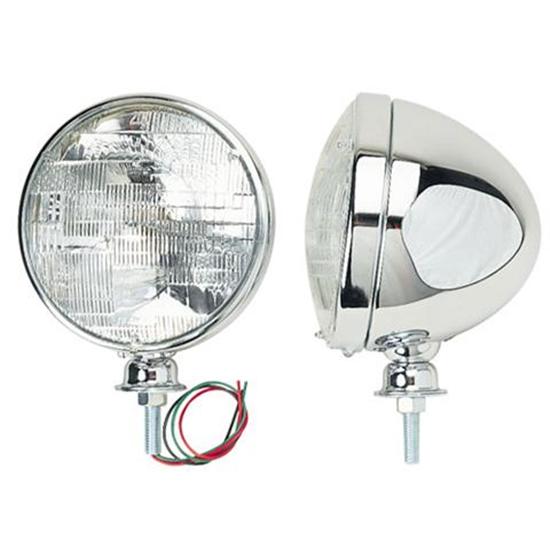

Our universal fit Deitz-type 7" headlights feature stainless steel housings and a 12 volt sealed beam bulb with both high & low beams. "Drilled" mounting stud measures 1/2"-13. The pre-wired plug has 3 wires with 6" leads.

Notes

  1. Our turn signal indicator for H-4 bulbs (item 910-64150) CANNOT be used in these headlights. These headlights feature sealed beams, not H-4 replaceable filaments.
  2. If you remove the enclosed flat bottomed mounting base and use the rounded boss at the bottom of the headlight in such an application as a dropped headlight bar or a dished mounting bracket, the stud measures 2-3/4" from the light boss to the end of the stud.
  3. Wiring Guide:
    • Black Wire - Ground
    • Red Wire - Low Beam
    • Green Wire - High Beam

Specs

  • Length of Mounting Stud:  1-15/16" (from bottom of flat mounting base)
  • Stud Diameter:  1/2"
  • The nut requires a 3/4" wrench
  • Distance from middle of stud to back of housing is 3-3/8"

Customer Reviews

This product has no reviews.

Product Q&A

3 questions : 3 answers

1 answers

Are the stainless steel lights polished?

October 12, 2011

Are the stainless steel lights polished?

Answers

October 13, 2011
Jason
Yes, these are polished
1 answers

is the price for a set of lights or just one

barney58
springdale,ar
June 13, 2011

is the price for a set of lights or just one

Answers

June 13, 2011
Jason
These are sold as a pair of lights
1 answers

Can these buckets be used with the H-4 replacement bulbs with built in turn signals? (Item # 910-64150, for example)

Skoon
Concord, NC
November 27, 2011

Can these buckets be used with the H-4 replacement bulbs with built in turn signals? (Item # 910-64150, for example)

Answers

November 30, 2011
John
Part # 91101006 The Dietz head lights will accept the replacement halogen lights using the H4 bulb. These turn indicators do not work with the majority of the housings on the lights without modification. The turn indicators also do not offer sufficient light to meet state requirements in many states. What you may consider is part number 9106127 or 9106129 which is an H4 style light that has built in turn signal in the bottom. Numbers quoted were with clear turn signal that turns amber when the light comes on and we also offer one with an amber lens if desired.
