91002939Overall Length4.000"Center Hole to End of Shank3Stud Length0.750" (3/4")Stud Diameter0.500" (1/2")ThreadsRH FemaleThread Pitch11/16"-18Thread Length2.000"Material TypeStainless SteelFinishPolishedSold in QuantityEachNotesFit closer to tapered hole compared to our 91002919 which is.150" shorter. 1-1/8" from center of threaded shaft to the bottom of the taper.

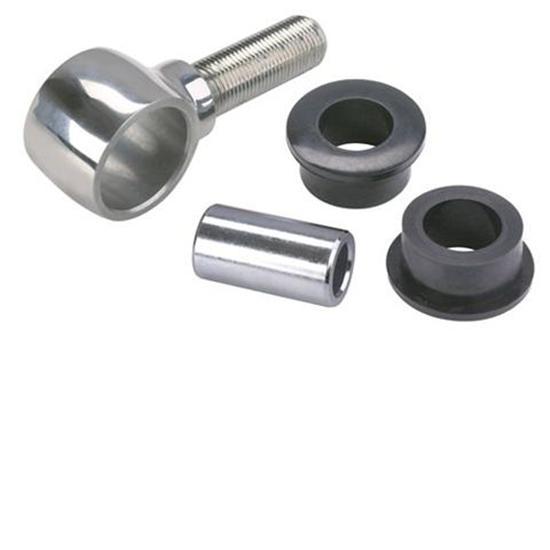

Don't settle for a weak 4-bar end made out of a piece of tubing welded to a bolt. These Speedway rod ends come in eitherforged steel or fully polished investment cast stainless steel for superior strength and durability.
If you are building a hot rod just a little bit different than the next guy, you will probably need a special length tie rod or drag link sleeve. We stock many common and uncommon lengths along with custom, made-to-order lengths. Measurements are in assembled eye-to-eye lengths.
These unpolished stainless steel tie rod/drag link kits are pre-cut and tapped lengths of 7/8" O.D. tubing available inmultiplelengths.Each kit comes complete with 5/8" heim joint rod ends and jam nuts. Adjustable 1/4" shorter to 1/2" longer. Always use anti-seize during final installation.
These tie rod or drag link kits are pre-cut and tapped lengths of brushed stainless 78" O.D. tubing available multiple lengths. Kits come complete with 11/16" traditional 7 tie rod ends and jam nuts. Adjustable from 1/2" shorter to 3/4" longer. All lengths measured eye to eye. Tapped right-hand & left-hand threads.
These tie rod or drag link kits are pre-cut and tapped lengths of 78" O.D. tubing available multiple lengths. Kits come complete with 11/16" traditional 7 tie rod ends and jam nuts. Adjustable from 1/2" shorter to 3/4" longer. All lengths measured eye to eye. Tapped right-hand & left-hand threads.
91002929Center Hole to End of Shank3.250Degree of Taper7 degreeShank Diameter0.780"Shank Length2.500" (2 1/2")Thread Pitch11/16"-18Thread Length2.000"Material TypeStainless SteelFinishPolishedSold in QuantityEachNotesFit closer to the tapered hole in comparison to our plain tie rod 91002909 as they are .150" shorter.
These unpolished stainless steel tie rod/drag link kits are pre-cut and tapped lengths of 7/8" O.D. tubing available inmultiplelengths.Each kit comes complete with 5/8" heim joint rod ends and jam nuts. Adjustable 1/4" shorter to 1/2" longer. All lengths measured eye to eye. Tapped right-hand & left-hand threads. Always use anti-seize during final installation.
These tie rod or drag link kits are pre-cut and tapped lengths of brushed stainless 78" O.D. tubing available in a custom length. Kits come complete with 11/16" traditional 7 tie rod ends and jam nuts. Adjustable from 1/2" shorter to 3/4" longer. All lengths measured eye to eye. Tapped right-hand & left-hand threads. Always use anti-seize during final installation.
Stainless steel fine thread jam nut for use with rod ends, heim joints, and clevis.
These tie rod or drag link kits are pre-cut and tapped lengths of brushed stainless 78" O.D. tubing availablein a customlength. Kits come complete with 11/16" traditional 7 tie rod ends and jam nuts. Adjustable from 1/2" shorter to 3/4" longer. All lengths measured eye to eye. Tapped right-hand & left-hand threads. Always use anti-seize during final installation.
These stainless steel double adjusters can be used with female rod ends to build tie rods or other components. 1-3/4" long on each side, with 5/8"-18 LH and RH threads. 3/4" widthacross theflats.
Four barsuspensions allow your front axle to travel freely, thus providing better ride and handling than traditional radius rods. Plus, their polished stainless construction will keep your front end glowing forever! Speedway kitsfeature bat wings and tapped bar ends, complete with nylon rod ends. For axles with 2" or 2-1/4" boss - use spacers916-35003 if necessary.
5464110Outside Diameter1.000"Inside Diameter0.625" (5/8")Overall Thickness0.250" (1/4")Material TypeSteelSold in QuantityBagNotes8 spacers per bag.
This rod end is made to eliminate the headache of steering shaft installation. It is .007" oversized to slide on 3/4" steering shaft.
Excellent for use as a medium-duty suspension rod endBall - case hardened steel hard chrome platedBody - Low carbon steel chromate treated
Chromoly body - 2 piece designDesigned for heavy duty applicationRough conditions steering/offroadBall - 52100 steel hard chrome plated Body - 4130 Chromoly
ASSEMBLY TIP:To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.
91002106ThreadsRH MaleSold in QuantityEach
1/4" plated steel rod w/ r/h 1/4" male threads on both ends Includes carb bushings, 1/4" female rod ends, jam nuts, & rodNote: Extra-long thread allows more adjustment
If you are building a hot rod just a little bit different than the next guy, you will probably need a special length tie rod or drag link sleeve. Sorry, no custom order chrome sleeves. Measurements are in assembled eye-to-eye lengths.
Normally used with '49-'54 Chevy style spindles and flat steel steering arms. Can be used with stock type Ford arms if drilled out to 5/8".
These tie rod ends are just like our standard Ford 7 taper tie rod ends except they are made of beautifully chrome plated steel. They have 11/16"-18 thread and include hardware. Make sure to use anti-seize on the threads.
