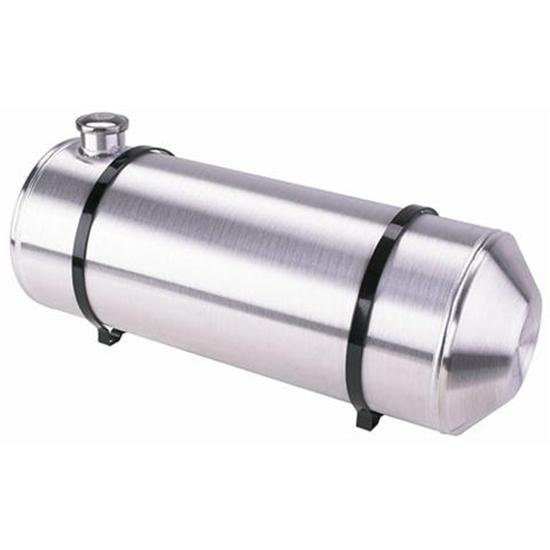

Spun Aluminum Fuel Tank, 7 Gallon, 8 x 33 Inch

SAME DAY SHIPPING! Order within the next 3 hours 39 minutes and receive same day shipping

Spun Aluminum Fuel Tank, 7 Gallon, 8 x 33 Inch

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

These spun aluminum tanks have an unpolished, spun aluminum finish, 2-1/4" neck, and a 1/4" NPT female outlet. For all off-road vehicles. The screw-on vented cap and brackets are included and can be found in a false bottom of the packaging box.

Item Details

8" x 33"

Customer Reviews

Rated 4 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
0
4 Stars
2
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

-j
Verified Purchaser
Ca

Great clean tank

June 22, 2015
Fits my project perfect
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

The Bucket Guy
Phoenix AZ

Spun Aluminum Fuel Tanks

March 27, 2010
Looks great installation was simple. If you are going to have fuel sensor you will have to have a plate welded on the top to install the sensor. Gas cap is not a great fit it is not snug on the tank.
Pros:
  • Easy
  • Looks great installation
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

10 questions : 10 answers

1 answers

What is the total length of the tank? I have very limited room and need to know if its any more than 33". Thanks

CJ
ontario canada
June 18, 2011

What is the total length of the tank? I have very limited room and need to know if its any more than 33". Thanks

Answers

June 20, 2011
Jason
Tank is 8" in diameter and 33" long
1 answers

how much does the five gallon tank weigh?

March 20, 2011

how much does the five gallon tank weigh?

Answers

March 21, 2011
Jeremy O
The five gallon tank weighs approx. 7.24 lbs.
1 answers

will this gas tank work in a boat , Plus where are the gas outlets located, and does this tank have a breather outlet.

chuck
Albuquerque nm
February 26, 2011

will this gas tank work in a boat , Plus where are the gas outlets located, and does this tank have a breather outlet.

Answers

March 14, 2011
Waymon
These spun Aluminum tanks(p/n 91076249) are a universal mount with the brackets that are supplied with them. The last one I looked at the fuel outlet(single) was in the center on the bottom of the tank. The only other opening in this tank is the cap on the top to put fuel in them.
1 answers

how far is the filler from the end of the tank ?

rex
galt , ca
January 05, 2011

how far is the filler from the end of the tank ?

Answers

January 06, 2011
John
You inquired about the distance from the end of the tank to the filler and I have actually measured one of the larger 11 gallon ones and from the end of the tank to the center of the filler is 4 1/2'”. This is on part number: 91076256 which is our spun aluminum 11 gallon tank that measures 10” x 33”.
1 answers

How much gallons is this fuelcell

April 05, 2011

How much gallons is this fuelcell

Answers

April 05, 2011
Tech Support
Tank #91076253 is a 7 gallon tank.
1 answers

the 1/4 in. npt fitting on the tank,is it male or female thread?

brace
watertown,ny
April 16, 2011

the 1/4 in. npt fitting on the tank,is it male or female thread?

Answers

April 18, 2011
Tech Support
Female thread.
1 answers

What is the height of the fill neck? (Top of tank to top of cap)

October 26, 2011

What is the height of the fill neck? (Top of tank to top of cap)

Answers

October 27, 2011
Jason
Top of tank to top of filler neck is 1-1/4"
1 answers

Is the gas cap vented?

Curt
NM
July 27, 2011

Is the gas cap vented?

Answers

July 28, 2011
Jason
Yes, the cap is vented
1 answers

How much higher do the mounts for this tank raise it up? And can the mounts be shifted anywhere on the tank? Do you offer a longer 8" diameter tank? Thanks!

Rob
April 30, 2015

How much higher do the mounts for this tank raise it up? And can the mounts be shifted anywhere on the tank? Do you offer a longer 8" diameter tank? Thanks!

Answers

May 01, 2015
Eric
Expert
The mounting brackets shim the tank up about 3/4". The brackets can be slid to any position that you desire. Sorry we do not offer an 8" long tank.
1 answers

Can you order same size tank but with a 3/8" outlet?

David
Clarkston, WA
August 02, 2015

Can you order same size tank but with a 3/8" outlet?

Answers

August 03, 2015
Wayne
Expert
Thank you for the question. I am not finding a tank in a similar dimension of 8 x 30 inch. All of them in this category have the 1/4" outlet. What kind of vehicle are you going to put this in? I do have a 8" x 20.5" 4 gallon tank that might work for you. It has 3/4" outlet at the bottom and two 3/8" on top. If you don't want to use the 3/4" on the bottom and would prefer to use the 3/8" on top, I can pull the part from the warehouse to see if one of the 3/8" on top have a tube that will pull fuel up from the bottom. Then you could just plug the 3/4" at the bottom. Let me know what you wish!
Page 1 of 1
