Canadian Leaf

Sprint Left Front Brake Kit with Speedway Brake Rotor

SAME DAY SHIPPING! Order within the next 3 hours 20 minutes and receive same day shipping

Specs
Centerline of Holes:
3.25
Material Type:
Aluminum
Sold in Quantity:
Kit
Finish:
Anodized
Thread Pitch:
3/8"-24
Hardware Included:
Yes
Rotor Diameter:
10.88
Caliper Pistons:
Two
Rotor Thickness:
.31
Caliper Finish:
Anodized
Rotor Construction:
Solid
Rotor Hat Bolt Pattern:
3 x 5.00"
Garage Sale:
No
Rotor Location:
Front
Rotor Shape:
Round
Drilled:
Yes
Slotted:
No
Notes
Includes rotor, caliper, caliper bracket, pads, and bolts.
Sprint Left Front Brake Kit with Speedway Brake Rotor
Sprint Left Front Brake Kit with Speedway Brake Rotor

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

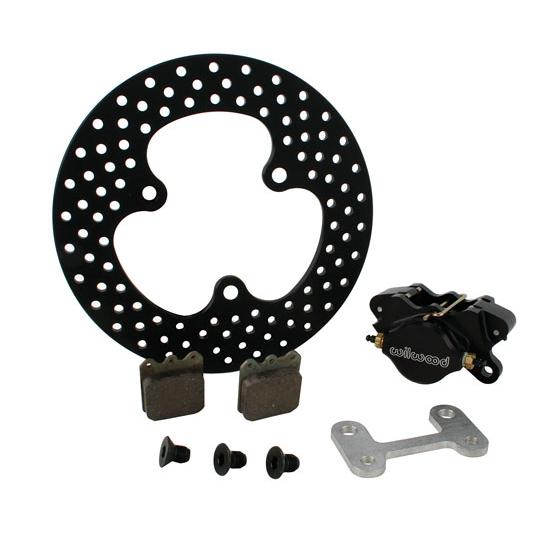

We put together this left front brake kit for the racer looking for the best quality while keeping cost down. Included is a Wilwood Dynalite caliper with 3.25" mounts, 2 brake pads, a 10.875" aluminum Speedway brake rotor and mounting bolts.

Components also available separately.
