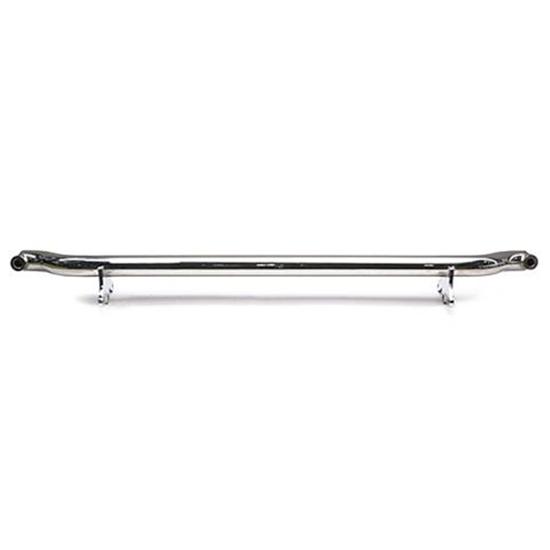

Spring Over Front Tube Axle, Ford Spindle, 6 Inch Drop, Stainless

SAME DAY SHIPPING!

Specs
Material Type:
Stainless Steel
Sold in Quantity:
Each
Finish:
Diameter:
2.00
Drop:
6.00
Material Thickness:
.250
King Pin Centers:
48.00
Spindle Type:
Ford

Share by Email

From
To

Click image to enlarge

Watch the video below to learn more about Speedway Motors Spindles

X

Details

Reviews

Q & A

What's in the Box

Speedway Double Dropped axles are constructed from 2" x .250" wall stainless steel tubing. They feature welded-on radius rod and spring brackets and work with 1937-1948 Ford style spindles.

  • Spring-over axle design
  • 48" eye-to-eye
  • Use with 26" spring

Spring Over Suspension Image (Link)

Leaf Spring Measuring Guide (Link)

Caster Angle Illustration (GIF)

Specs

  • Axle Bracket Thickness:  3/8"
  • Axle Bracket Spacing:  5" eye to eye (outside holes)
  • Spring Shackle Pivot Hole to Center of the Axle:  3-3/4"
