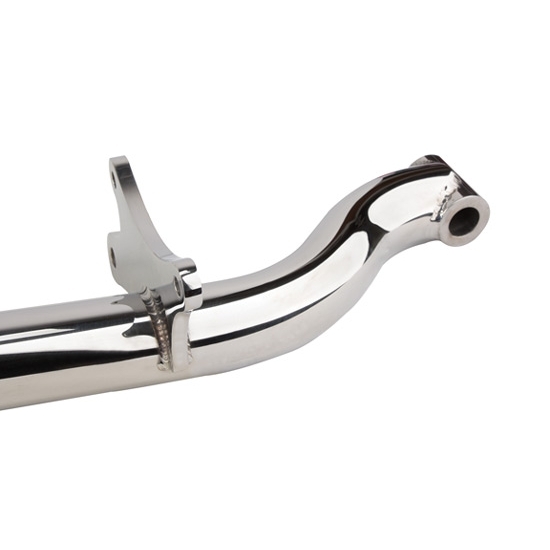

Spring Over Front Tube Axle, Chevy Spindle, 4 Inch Drop, Stainless

Spring Over Front Tube Axle, Chevy Spindle, 4 Inch Drop, Stainless
Spring Over Front Tube Axle, Chevy Spindle, 4 Inch Drop, Stainless

Click image to enlarge

Watch the video below to learn more about Speedway Motors Spindles

Details

Reviews

Q & A

What's in the Box

Speedway Double Dropped axles are constructed from 2" x .250" wall stainless steel tubing. They feature welded-on radius rod and spring brackets and work with 1949-1954 Chevy style spindles.

  • Spring-over axle design
  • 48" eye-to-eye
  • Use with 26" spring

Spring Over Suspension Image (Link)

Leaf Spring Measuring Guide (Link)

Caster Angle Illustration (GIF)

Specs

  • Axle Bracket Thickness:  3/8"
  • Axle Bracket Spacing:  5" eye to eye (outside holes)
  • Spring Shackle Pivot Hole to Center of the Axle:  3-3/4"

You may also be interested in:

Spring Over Front Tube Axle, Chevy Spindle, 4 Inch Drop, Chrome
(Part #91335112)


Speedway Double Dropped axles are constructed from 2" x .250" wall steel tubing. They feature welded-on radius rod and spring brackets and work with 1949-1954 Chevy style spindles.

  • Spring-over axle design
  • 48" eye-to-eye
  • Use with 26" spring

Spring Over Suspension Image (Link)

Leaf Spring Measuring Guide (Link)

Caster Angle Illustration (GIF)

Spring Over Front Tube Axle, Chevy Spindle, 4 Inch Drop, Plain
(Part #91335113)


Speedway Double Dropped axles are constructed from 2" x .250" wall steel tubing. They feature welded-on radius rod and spring brackets and work with 1949-1954 Chevy style spindles.

  • Spring-over axle design
  • 48" eye-to-eye
  • Use with 26" spring

Spring Over Suspension Image (Link)

Leaf Spring Measuring Guide (Link)

Caster Angle Illustration (GIF)

Spring Over Front Tube Axle, Ford Spindle, 4 Inch Drop, Stainless
(Part #91335308)


Speedway Double Dropped axles are constructed from 2" x .250" wall stainless steel tubing. They feature welded-on radius rod and spring brackets and work with 1937-1948 Ford style spindles.

  • Spring-over axle design
  • 48" eye-to-eye
  • Use with 26" spring

Spring Over Suspension Image (Link)

Leaf Spring Measuring Guide (Link)

Caster Angle Illustration (GIF)

Spring Over Front Tube Axle, Chevy Spindle, 6 Inch Drop, Stainless
(Part #91335412)


Speedway Double Dropped axles are constructed from 2" x .250" wall stainless steel tubing. They feature welded-on radius rod and spring brackets and work with 1949-1954 Chevy style spindles.

  • Spring-over axle design
  • 48" eye-to-eye
  • Use with 26" spring

Spring Over Suspension Image (Link)

Leaf Spring Measuring Guide (Link)

Caster Angle Illustration (GIF)

Speedway 1949-1954 Chevy Car Modified Spindles w/ King Pins
(Part #91032100)


Speedway has produced these new forged steel reproduction car spindles. They have many features not available with GMs' original design! These spindles are the choice of professional builders because of their clean look, strength and ease of installation.

  • Made to direct mount Mustang II hubs and rotors plus many other later GM's
  • Kingpin geometry changed to work with current radial tire construction
  • Includes many features not found on GM's original design
  • Forged steel (not cast) reproduction spindles
  • Kit includes pair of new spindles with new kingpins fit to spindle
  • Spindle nuts NOT included (sold separately)

Spindle Identification Guide (GIF)

Super Glide T-Bucket Front Spring, Standard Eye, Plain
(Part #91033026)


Achieve a smoother, more comfortable ride with Speedway Super Glide™ T-bucket front leaf springs. The ends of the spring leaves of a Super Glide™ spring have a unique nylon button which works as a dry lubricant to significantly reduce leaf-to-leaf friction. This allows the spring to move more easily, thereby giving a softer, quieter ride.

Four-leaf design with standard spring eyes and a bare steel finish.

Leaf Spring Measuring Guide (Link)

Speedway 1-3/4 Nylon Spring Shackle Kit, Stainless Steel Finish, Pair
(Part #91033323-SS)


Fits front or rear springs. All measurements are width of spring. All nylon bushed shackles are 1-1/2" shackle bolt center to shackle bolt center.

Bushings are included. Bushing O.D. is 3/4".



Leaf Spring Measuring Guide (Link)
