Spring-Over 4 Inch Drop Front End for Chevy Spindles, Plain

SAME DAY SHIPPING! Most orders ship within 24 hours.

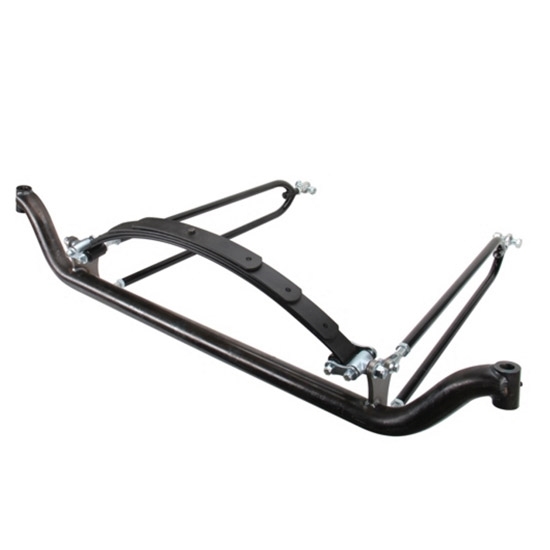

Spring-Over 4 Inch Drop Front End for Chevy Spindles, Plain
Product Video
Spring-Over 4 Inch Drop Front End for Chevy Spindles, Plain

Click image to enlarge

Watch the video below to learn more about Speedway Motors Spindles

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

For T's and early 1930's street rods using 1949-54 Chevy passenger car spindles. Maximum car weight 2500 lbs.

Kit includes:

  • Two 1-3/4" spring shackles with nylon bushings
  • Two spring pivots
  • 26" 4-leaf Super Glide™ spring, 1-3/4" wide
  • Two axle brackets
  • Tube axle, 48" eye-to-eye, 4" drop
  • Two 27" radius rods
  • Four clevises with jam nuts and bolts
  • Two 5/8" heims with jam nuts
  • Spring U-bolts sold separately

Front Axle/Suspension Tech Tips (GIF)

Customer Reviews

This product has no reviews.

Product Q&A

2 questions : 2 answers

WHAT DO YOU DO OR USE FOR SHOCK MOUNTS UPPER & LOWER

1 answers
Anderson Mo
December 30, 2011

WHAT DO YOU DO OR USE FOR SHOCK MOUNTS UPPER & LOWER

Answers

January 02, 2012
John
Several options are available for shock mounts upper and on the axle. A kit is offered and applicable to T buckets and early 30’s rods under part number 715150. There is also a shackle plate itself with an extra hole for a shock stud under part number 91036120 and several frame mounts such as 91636001, 91036008, 91036006, 91636004, and more. The various options can be seen on our website and also in our catalogs. If still in question feel free to call and visit with a tech.

on a spring over straight axel what should the king pins be leand back in degrees

1 answers
January 13, 2012

on a spring over straight axel what should the king pins be leand back in degrees

Answers

January 16, 2012
John
Part number 91339009 In assembled fashion with vehicle sitting at ride height the castor, or lean back of the king pins at the top normally should be between 5 and 7 degrees positive.
Page 1 of 1

You may also be interested in:

Ford Model T - 1934 Front Spring U-Bolt Kit, Plain Steel
(Part #91633006)


Use with original or reproduction Model "T" thru '34 Ford crossmembers. Includes two U-bolts with nuts, one spacer plate and one lower bracket.

Chevy Front Axle Steering & Brake Kit, 48 Inch Axle
(Part #9133901)


Speedway's exclusive steering & brake kits save you time and money by combining all necessary parts into one part number. Each kit includes brake kit, spindles, dust caps, spindle nuts, AN3 caliper fittings, Rubber Brake Lines, kingpins, flat steering arms, tie rod assembly and hardware.

For 48" kingpin-to-kingpin axles. Traditional steering arm for left front wheel NOT included with Traditional steering kit.

  • Speedway 1949-1954 Chevy Spindles
    • One piece forged 4140 steel
    • Modeled after the 49-54 Chevy passenger car spindles
    • Steering arms may be mounted to the top or bottom of the spindle
    • Standard king pins fit to spindles
  • Speedway 9-1/4" Brake Kit
    • 9-1/4" Mustang II rotors
    • 5 x 4-1/2" or 5 x 4-3/4" bolt patterns
    • Wheel studs - 1/2" Fine (4-1/2" BP), 7/16" Fine (4-3/4" BP)
    • Hub flange (hat) diameter - 5.74"
    • GM Metric '78-'88 calipers, 2-1/2" piston
    • 7/16" banjo bolt to -3 AN line adapter kit
  • Traditional or Cross Steering Kit
    • Flat plate steering arms
    • 5/8" tie rod steering link
    • 5/8" standard heim joint rod ends
    • Seals-It 5/8" rod end seals
    • 5/8" steel cone heim spacers

Spindle Identification Guide (GIF)

Chevy Wilwood Front Brake & Steering Kits, 48 Inch Axle
(Part #9133903)


Speedway's exclusive steering & brake kits for 1949-54 Chevy spindles save you time and money by combining all necessary parts into one part number. Each kit includes premuim Wilwood brake components, spindles, flat steering arms, tie rod assembly and hardware. Hubs are drilled for both 4-1/2" and 4-3/4" bolt patterns. Must be used with a 15" or larger wheel. For use on cars up to 2800 pounds with rear discs or on cars up to 2400 pounds with rear drums. Kits can be used with either manual or power boost master cylinders.

Choose:

  • Traditional or cross steering
  • Chrome or plain steering arms and tie rod cross bar

Features these Wilwood components:

  • 4-piston Forged Billet Dynalite Calipers
  • 10-3/4" diameter x .380" thick solid steel rotors - black finish
  • Lightweight clear-anodized aluminum hubs

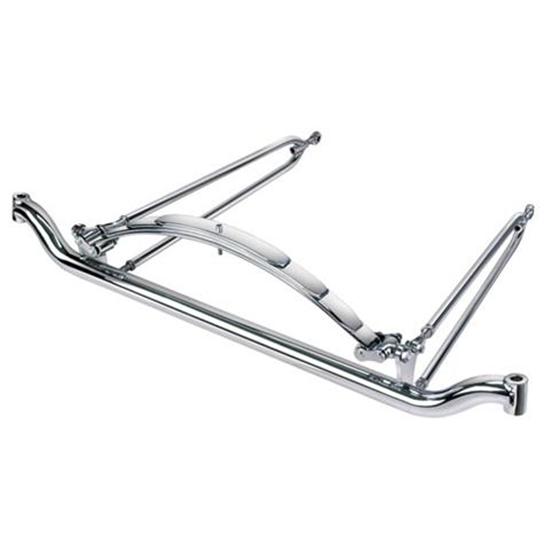

Spring-Over 4 Inch Drop Front End for Chevy Spindles, Chrome
