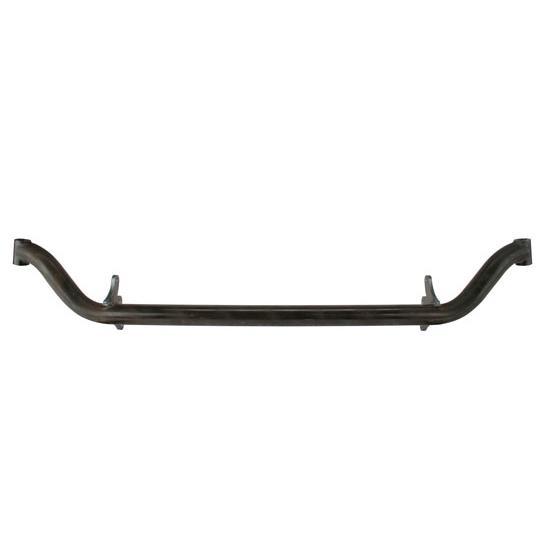

Spring Behind Front Tube Axle, Ford Spindle, 4 Inch Drop, Plain

SAME DAY SHIPPING! Most orders ship within 24 hours.

Free Shipping Free Shipping
Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Natural
Diameter:
2.00
Drop:
4.00
Material Thickness:
.250
King Pin Centers:
48.00
Spindle Type:
Ford
Spring Behind Front Tube Axle, Ford Spindle, 4 Inch Drop, Plain
Spring Behind Front Tube Axle, Ford Spindle, 4 Inch Drop, Plain
Spring Behind Front Tube Axle, Ford Spindle, 4 Inch Drop, Plain
Spring Behind Front Tube Axle, Ford Spindle, 4 Inch Drop, Plain
Product Video
Spring Behind Front Tube Axle, Ford Spindle, 4 Inch Drop, Plain

Click image to enlarge

Watch the video below to learn more about Speedway Motors Spindles

Details

Reviews

Q & A

What's in the Box

Speedway Double Dropped axles are constructed from 2" x .250" wall steel tubing. They feature welded-on radius rod and spring brackets and work with 1937-1948 Ford style spindles.

  • Spring-Behind Axle design
  • 48" eye-to-eye
  • Use with 26" spring

Spring Behind Axle Illustration (GIF)

Leaf Spring Measuring Guide (Link)

Caster Angle Illustration (GIF)

Specs

  • Axle Bracket Thickness:  3/8"
  • Axle Bracket Spacing:  5" eye to eye (outside holes)

Customer Reviews

Rated 4 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
0
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

henry23t
Sunnyvale Ca. USA

spring behind the ftont tube axle - ford

June 21, 2014
the front tube axle is cool looking. you have two choice-1 is a hairpin radius rod. 2 four bar rod setup. plus it's a ford spindle or a Chevrolet spindle.
Pros:
  • the hairpin radius rods setup has a better steerin
Cons:
  • four bar setup you need panhard bar
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 3 answers

1 answers

HOW FAR APART ARE THE BRACKETS WELDED ON THE AXLE?

November 19, 2011

HOW FAR APART ARE THE BRACKETS WELDED ON THE AXLE?

Answers

November 21, 2011
Jason
The brackets are 31-1/8" center to center or 30-3/4" in between brackets
1 answers

What steering arms are needed for this axle using traditional steering. I want the tie rod behind the axle, not out front.

Cyclone
Sonoma, CA 95476, USA
October 02, 2012

What steering arms are needed for this axle using traditional steering. I want the tie rod behind the axle, not out front.

Answers

October 03, 2012
Jason
You will need to use the flat plate steering arms number 91632022 that only accept heim ends and the upper arm for traditional steering is number 91632017 or 91632009 with a straight hole for heim ends or we also have them for the tapered stud tie rod ends if desired.
1 answers

what kind of weight can this support? i'm building a 1928 model A Tudor sedan with a 350sbc,th400 and no fenders. i'm using your reversed eye springs, short shocks (tbuckets) and hairpins. just trying to make sure it'll be safe enough for daily use. thanks

28tudor
houston tx
May 21, 2015

what kind of weight can this support? i'm building a 1928 model A Tudor sedan with a 350sbc,th400 and no fenders. i'm using your reversed eye springs, short shocks (tbuckets) and hairpins. just trying to make sure it'll be safe enough for daily use. thanks

Answers

May 21, 2015
Eric
Expert
Yes this axle is regularly used for your type of application. We even have customers with full fendered cars and big blocks using our tube axles.
Page 1 of 1
