Spring Behind Front Tube Axle, Chevy Spindle, 4 Inch Drop, Chrome

SAME DAY SHIPPING! Order within the next 14 hours 17 minutes and receive same day shipping

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Chrome
Diameter:
2.00
Drop:
4.00
Material Thickness:
.250
King Pin Centers:
48.00
Spindle Type:
Chevy
Spring Behind Front Tube Axle, Chevy Spindle, 4 Inch Drop, ChromeSpring Behind Front Tube Axle, Chevy Spindle, 4 Inch Drop, ChromeSpring Behind Front Tube Axle, Chevy Spindle, 4 Inch Drop, Chrome

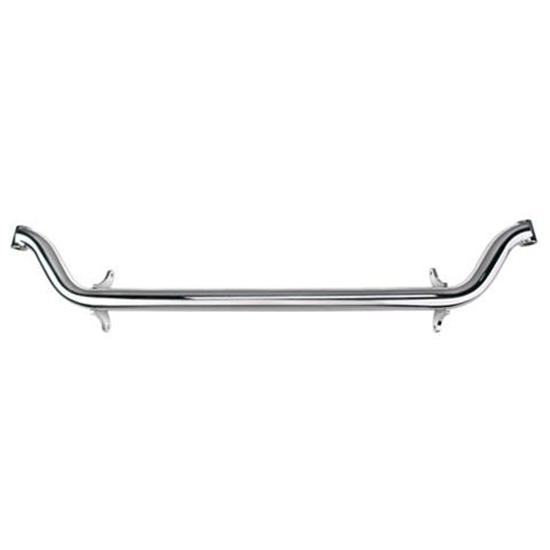

Spring Behind Front Tube Axle, Chevy Spindle, 4 Inch Drop, Chrome

Click image to enlarge

Watch the video below to learn more about Speedway Motors Spindles

Speeday Motors Logo
X
Spring Behind Front Tube Axle, Chevy Spindle, 4 Inch Drop, Chrome

Details

Reviews

Q & A

What's in the Box

Speedway Double Dropped axles are constructed from 2" x .250" wall steel tubing. They feature welded-on radius rod and spring brackets and work with 1949-1954 Chevy style spindles.

  • Spring-behind axle design
  • 48" eye-to-eye
  • Use with 26" spring

Spring Behind Axle Illustration (GIF)

Leaf Spring Measuring Guide (Link)

Caster Angle Illustration (GIF)

Specs

  • Axle Bracket Thickness:  3/8"
  • Axle Bracket Spacing:  5" eye to eye (outside holes)
