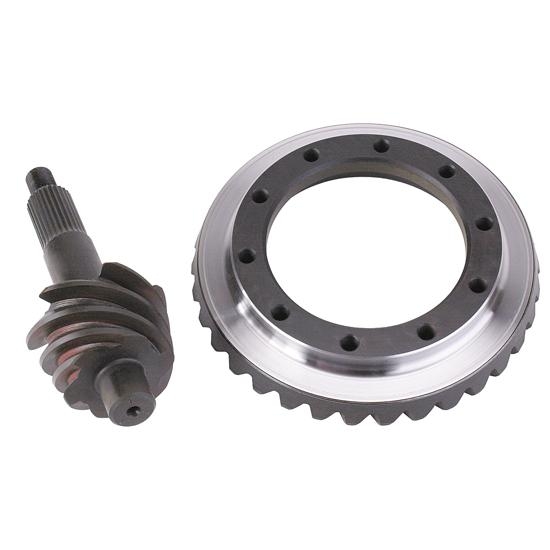

Speedway Ultra-Lite Ford 9 Inch Ring Gear, 5.43 Ratio

SAME DAY SHIPPING! Order within the next 4 hours 32 minutes and receive same day shipping

Specs
Material Type:
Steel
Sold in Quantity:
Each
Outside Diameter:
9.00
Ratio:
6.50:1
Speedway Ultra-Lite Ford 9 Inch Ring Gear, 5.43 RatioSpeedway Ultra-Lite Ford 9 Inch Ring Gear, 5.43 Ratio
Speedway Ultra-Lite Ford 9 Inch Ring Gear, 5.43 Ratio

Click image to enlarge

Speeday Motors Logo
X
Speedway Ultra-Lite Ford 9 Inch Ring Gear, 5.43 Ratio

Details

Reviews

Q & A

What's in the Box

  • Ultra lightweight ring gear and pinion
  • Speedway's in house lightening process can remove up to 2.6 lbs of rotating weight from your drive train

You may also be interested in:

9 Inch Ford Small Yoke
                        We found a limited supply of new small yokes for the 9" Ford.  They accept the 1310 series U-joints (1-1/16" caps x 3-7/32").  Fits standard 28 spline pinion gear.

Aluminum 9 Inch Ford Daytona Pinion Support


This forged aluminum pinion support is far superior to the original cast iron model. This pinion support uses a standard Ford 9" front pinion bearing and the Daytona style pinion bearing on the rear.

Bearings and races sold seperately.

Timken bearing and race numbers (for reference only):

  • M88048 Front pinion bearing
  • M88010 Front pinion race
  • HM89443 Rear Daytona pinion bearing
  • HM89410 Rear Daytona pinion race
Ford 9 Inch Steel Full Spool


Lightweight and standard steel Ford 9" full spools are available with 28 or 31 splines. Standard steel spool weighs 8.7 lbs. (28 Spline) & 8.0 lbs. (31 Spline).  The lightweight steel spool weighs 6.2 lbs. (28 Spline) & 6.1 lbs. (31 Spline)

NOTE: All Ford 9" full spools use overhaul kit #919-0950-31, even if they are a 28 spline spool.  The 919-0950-31 contains the large I.D. standard O.D. carrier bearings and pinion bearings.

If you are using the H.D. nodular iron center section which use the large diameter carrier bearings, order kit # 919-0950-31s, which also includes the large pinion bearings for use with the Daytona pinion support.
9 Inch Ford Rear End Overhaul Kit
                        This 9" Ford overhaul kit includes: pinion pilot, pinion shaft, pinion nut, pinion seal, gasket, shims, crush collar, sealant, gear marking grease, brush and Loctite. Ring gear bolts not included.

NOTE: All Ford 9" full spools use overhaul kit 9190950-31, even if they are a 28-spline spool. The 9190950-31 contains the large I.D. standard O.D. carrier bearings and pinion bearings needed for use with our full spools.

If you are using the H.D. nodular iron center section which uses the large diameter carrier bearings, order kit 9190950-31s, which also includes the large pinion bearings for use with the Daytona pinion support.

9" Ford Carrier Bearing Chart (GIF)  - Double check your bearing p/n.

Ford 9 Inch Megalite Steel Full Spool, 31-Spline
                        These Ford 9" megalite steel full spools weigh just 5.49 lbs.

Comparison spool weights:

  • Aluminum - 5.0 lbs.
  • Lite Steel - 6.1 lbs.
  • Standard Steel - 8.0 lbs.
  • Stock carrier with mini spool - 13.7 lbs.

Note: All Ford 9" full spools use overhaul kit 9190950-31. The 9190950-31 contains the large I.D. standard O.D. carrier bearings and pinion bearings needed for use with our full spools.

If you are using the H.D. nodular iron center section which uses the large diameter carrier bearings, order kit 9190950-31s, which also includes the large pinion bearings for use with the Daytona pinion support.

Ford 9 Inch Megalite Steel Full Spool, 28-Spline
                        These Ford 9" megalite steel full spools weigh just 5.55 lbs.

Comparison spool weights:

  • Aluminum - 5.0 lbs.
  • Lite Steel - 6.0 lbs.
  • Standard Steel - 8.9 lbs.
  • Stock carrier with mini spool - 13.7 lbs.

Note: All Ford 9" full spools use overhaul kit 9190950-31, even if they are a 28-spline spool. The 9190950-31 contains the large I.D. standard O.D. carrier bearings and pinion bearings needed for use with our full spools.

If you are using the H.D. nodular iron center section which uses the large diameter carrier bearings, order kit 9190950-31s, which also includes the large pinion bearings for use with the Daytona pinion support.

Cast Iron 9 Inch Ford Daytona Pinion Support


This pinion support is cast from 30,000 psi gray iron and is far superior to the original Ford unit. Daytona supports have a larger rear (inner) bearing and race along with improved oil flow to the bearings. This allows for higher torque, horsepower, and longer bearing life. Pinion support weighs 6 lbs.

Bearings and races sold seperately.

Timken bearing and race numbers (for reference only):

  • M88048 Front pinion bearing
  • M88010 Front pinion race
  • HM89443 Rear Daytona pinion bearing
  • HM89410 Rear Daytona pinion race
9 Inch R&P Lightweight, AX Series


Perfect for lightweight racing applications, these ring and pinion performance gear sets are designed to fit Ford 9" style rear end housings.  Motive Gear recommends the use of a daytona pinion support and solid pinion spacer in all racing applications.

  • Lightweight ring gear
  • Less rotating mass
  • Faster acceleration
  • Ring diameter: 9"
  • 10-7/16" x 20 right hand threaded bolts
  • Pinion diameter: 1.313" 28 splines
  • 8620 heat treated material

Note:  Circle track racing applications require a minimum of 4 qts. of rear end lube.  Using less than this amount will lead to immediate pinion bearing failure.

For use in:

  • NASCAR®
  • NEXTEL CUP®
  • BUSCH GRAND NATIONAL®
  • CRAFTSMAN TRUCK®
  • ARCA®
  • IMCA®
  • UMP®
  • IHRA®
  • NHRA®

Available in ratios:

Manufacturer P/N         #of Teeth          Ratio

F890422AX                 38-9                 4.22

F890430AX                 43-10               4.30

F890457AX                 32-7                 4.57

F890471AX                 33-7                 4.71

F890478AX                 43-9                 4.78

F890486AX                 34-7                 4.86

F890500AX                 35-7                 5.00

F890514AX                 36-7                 5.14

F890525AX                 42-8                 5.25

F890529AX                 37-7                 5.29

F890537AX                 43-8                 5.37

F890543AX                 38-7                 5.43

F890550AX                 44-8                 5.50

F890557AX                 39-7                 5.57

F890567AX                 34-4                 5.67

F890583AX                 35-6                 5.83

F890600AX                 36-6                 6.00

F890614AX                 43-7                 6.14

F890620AX                 31-5                 6.20

F890633AX                 38-6                 6.33

F890650AX                 39-6                 6.50

F890666AX                 40-6                 6.66

F890683AX                 41-6                 6.83

F890700AX                 42-6                 7.00

F890716AX                 43-6                 7.16

F890733AX                 44-6                 7.33
