Speedway Stump Puller Flathead V8 Starter, Manual Trans.

SAME DAY SHIPPING! Order within the next 14 hours 26 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Overall Height:
6.00
Overall Width:
5.00
Overall Length:
5.50
Weight:
7.85
Sold in Quantity:
Each
Finish:
Natural
Tooth Count:
10
Voltage:
12
Ratio:
4.4:1
Garage Sale:
No
Notes
If header clearance is an issue, starter can be mounted upside down, it won’t hang down too far, and the starter cable hookup point can still be accessed on the back side.

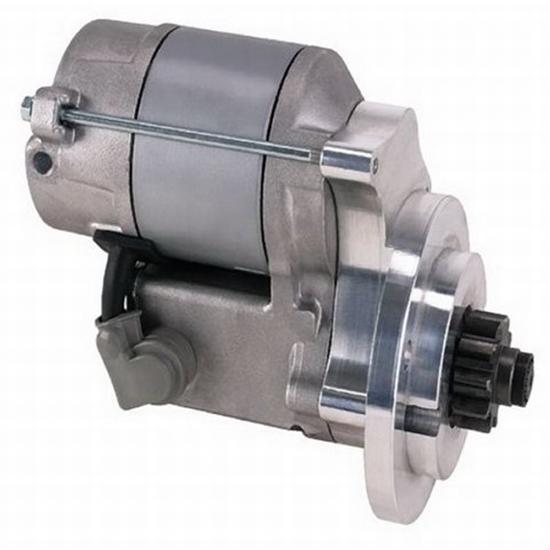

Speedway Stump Puller Flathead V8 Starter, Manual Trans.

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Speedway has you covered if you need a "stump puller" starter for your Flathead Ford V8. Our gear reduction starter is built using all new components and cranks out 200 ft./lbs. of torque. It bolts to the original mounting points on 1932-1953 engines with manual trannys & steel flywheels.

  • Small, compact size provides additional clearance
  • Bolts to original mounting points
  • For use with USA-made flathead Ford V8 blocks with steel, manual shift flywheels
  • Delivers 200 ft/lbs of force
  • 4.4:1 Gear Reduction Ratio
  • Cranking Power For up to 18:1 Compression
  • Drive Depth: 1.562" (from the mounting flange to the tip of the drive fully extended)

Item Details

12 volt

Application

  • Fits 1932-1953 USA-made flathead Ford V8s using a steel manual-shift flywheel
  • Will NOT work with our Aluminum (56052700 & 91015625) or Steel/Aluminum (91015624) flywheel on a '48 or older Flathead.

Specs


Customer Reviews

Rated 4.8 out of 5 by 4 reviewers.
RATING BREAKDOWN
4 reviews
5 Stars
3
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

streetrod builder
Verified Purchaser
Verified Reviewer
MN

worked vary good

May 15, 2015
Has a little wine on disengagement but works good.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

37cpe
Verified Purchaser

this is a great starter

November 03, 2014
GREAT PRODUCT,LIGHTER,TOUGHER,AND A LOT MORE TORQUE THAN ORIGINAL STARTER,THANKS SO MUCH SPEEDWAY
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Yomama
Verified Purchaser
Kansas City mo

good product is assume

August 13, 2014
It is a little overkill to use this Sartre on a mild flathead,It works really good spins motor big time.I. Found it works best to engage starter before turning on ignition.I like this starter. I've found the best made always works best.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Totoro
Verified Purchaser
Portland, OR

Works great

November 01, 2011
Fit right in to my stock '50 ford, wired up and rocked and rolled right off the bat. However, when I purchased it it claimed to include mounting bolts, but it does not. Be aware!
Pros:
  • Easy Install
  • Cranks great
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

4 questions : 4 answers

1 answers

starter trouble I bought this starter it does start my 8ba flathyead however the starter will not disengage from the fly wheel and know matter what I do it will not disengage-- please help paul tucker

lulu10
864 Fraser Road, Wickliffe, KY 42087, USA
July 18, 2014

starter trouble I bought this starter it does start my 8ba flathyead however the starter will not disengage from the fly wheel and know matter what I do it will not disengage-- please help paul tucker

Answers

July 21, 2014
EricM
We apologize for your problems but apparently you have incorrect pinion to flywheel clearance. Look at the pinion gear for surface contact and also the flywheel to make sure we are getting proper contact area and that there is some play in the pinion when engaged. If it is going too far in there may be a problem and if the teeth are setting too deep to where it is hanging up. You may need to shim the starter for proper clearances. Also see if the pinion extends and comes back out freely and easily when operating the starter out of the car. If everything checks out o.k. we can gladly try another starter in hopes of satisfactory results.
1 answers

What is the major difference between #910-67465 & 67470 I have a 46 Merc. flathead, 12V system...

Loner
Salinas, CA, USA
September 18, 2013

What is the major difference between #910-67465 & 67470 I have a 46 Merc. flathead, 12V system...

Answers

September 19, 2013
Jason
Most of the starter specifications are the same for these two starters. The 91067465 is our Speedway stump puller starter for the flatheads weighing in at 8.941 pounds and just slightly smaller than Powermaster number 91067470 which weighs in at 9.901 pounds. Both offer same cranking power and engine useag.
1 answers

Is this a 6 volt or 12 volt starter?

October 18, 2011

Is this a 6 volt or 12 volt starter?

Answers

October 19, 2011
Jason
This is a 12 volt starter
1 answers

Is this starter positive or negitive ground? Is your flathead 12 volt starter part #91092507 positive or negitive ground? Thank you.

TujungaTed
Bigfork, Mt
March 01, 2012

Is this starter positive or negitive ground? Is your flathead 12 volt starter part #91092507 positive or negitive ground? Thank you.

Answers

March 02, 2012
John
Part number 91092507 This starter is 12 volt negative ground but can be used with positive ground. The original 6 volt starters have been used with 12 volt negative ground applications successfully for decades. Alternators or powergens on the other side are specific negative or positive ground.
Page 1 of 1

You may also be interested in:

Powermaster 9507 Flathead Ford V8 Gear Reduction Starter
(Part #91067470)


Powermaster XS Torque gear reduction starters are built using all new components and cranks out 200 ft./lbs. of torque. It bolts up like an original starter, but its gear-reduction design gives it more power to crank over high-compression engines. Fits USA-made 1932-1953 flathead Ford V8 engines using manual transmissions & steel flywheels.

  • Small, compact size provides additional clearance
  • Bolts to original mounting points
  • Can be mounted upside down for header clearance
  • 4.4:1 gear reduction ratio
  • Cranking power for up to 18:1 compression
  • Works with our steel, manual-shift flywheels

Flathead Ford V8 Gear Reduction Starter Instructions (PDF)

Item Details

12 volt
Powermaster 9508 French Block Flathead V8 Starter
(Part #91067475)


Your original flathead starter is tired from years of service. This Powermaster XS starter is just the ticket for faster starting and increased clearance for French-made flathead blocks. It cranks out 200 ft. lbs. of torque and is designed for use with French-made flathead blocks or aftermarket flywheels.

  • Small, compact size provides additional clearance
  • Bolts to original mounting points (bolts NOT included)
  • Delivers 200 ft/lbs of force
  • 4.4:1 Gear Reduction Ratio
  • Cranking Power For up to 18:1 Compression

910-67475 Instructions (PDF)

Item Details

For French Block/Aluminum Flywheels
