Speedway Reduction Pulley Combo for Small Block Chevy Short Pump

SAME DAY SHIPPING! Order within the next 8 hours 10 minutes and receive same day shipping

Specs
Material Type:
Aluminum
Sold in Quantity:
Kit
Finish:
Natural
Belt Type:
V-Belt
Belt Width:
.41
Belt Length:
32.00
Garage Sale:
No
Notes
ncludes crank and water pump pulleys. Two belts also included. 20% reduction.
Speedway Reduction Pulley Combo for Small Block Chevy Short Pump
Speedway Reduction Pulley Combo for Small Block Chevy Short Pump

Click image to enlarge

Speeday Motors Logo
X
Speedway Reduction Pulley Combo for Small Block Chevy Short Pump

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

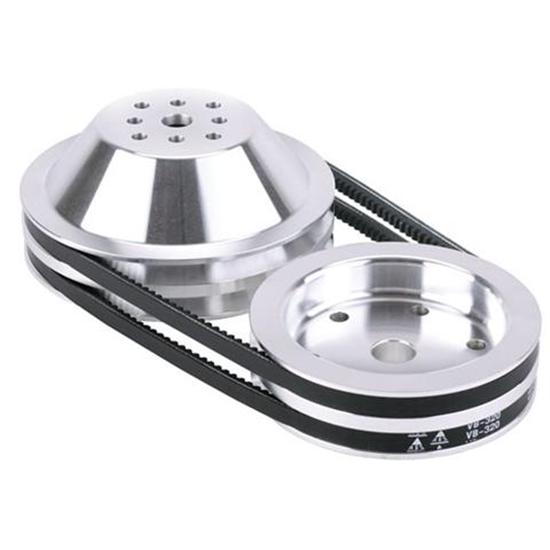

Kit includes a cast aluminum double groove cast aluminum water pump pulley, crank pulley, and a matched pair of heavy duty belts. Slows water pump speed by 20% for increased horsepower.

  • Upper Pulley Grooves:  Two
  • Lower Pulley Grooves:  Two
  • Upper Pulley Diameter:  6-5/8" O.D.
  • Lower Pulley Diameter:  5-7/16" O.D.
  • Upper Pulley Snout Hole:  5/8" O.D. (can be drilled out to 3/4")

Fits Small Block Chevy V8 with '55-'68 short-style water pump with 5/8" shaft.

Note: The lower crank pulleys in our combo kits are manufactured thicker than normal stock pulleys.  This requires longer 3/8" bolts to be purchased separately.  Allen head type bolts recommended.

Get the correct pulleys for your application by learning which water pump you have as explained in our tech article. SBC - Short vs Long Water Pump.



Specs
