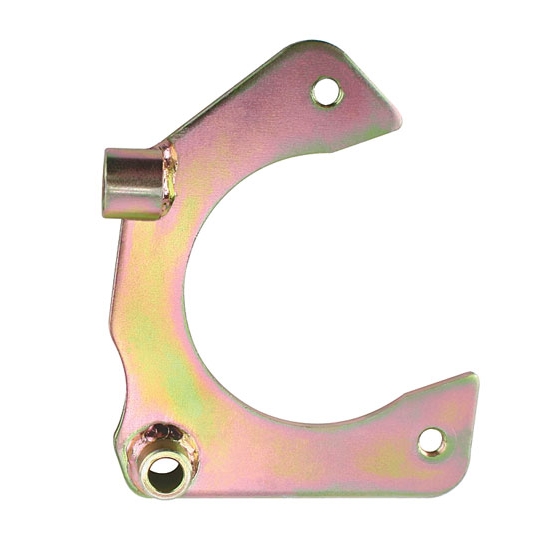

Speedway Granada 10-1/2 Inch Brake Caliper Bracket, LH

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Centerline of Holes:
5.50
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Zinc
Thread Pitch:
7/16"-14
Material Thickness:
.23
Garage Sale:
No
Notes
Mounts a GM metric caliper to a Pinto/Mustang II spindle for use with a Granada 10.5" rotor. Includes caliper pins.
Speedway Granada 10-1/2 Inch Brake Caliper Bracket, LH

Click image to enlarge

Details

Reviews

Q & A

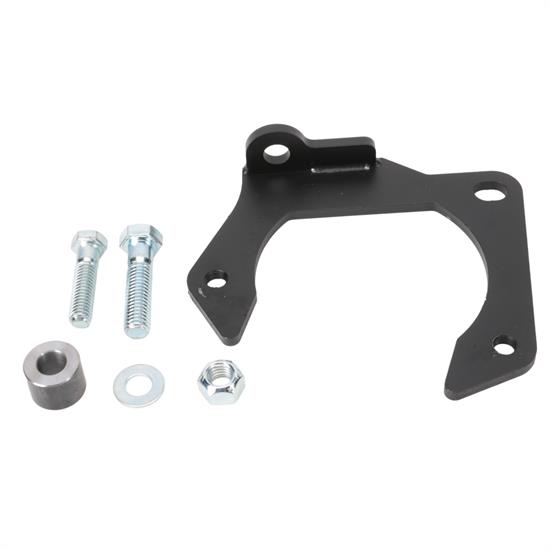

What's in the Box

These brackets are used to mount a GM "metric" calipers to 1974-1980 Pinto/Mustang II spindles for use with what is basically a "Granada" 10-1/2" brake rotor. Steel, bolt-on design mounts the caliper on the rear side of the left front wheel.

Customer Reviews

This product has no reviews.

Product Q&A

2 questions : 2 answers

1 answers

What GM rotor do you recommend with this bracket?

RobButtrum
April 29, 2014

What GM rotor do you recommend with this bracket?

Answers

April 30, 2014
EricM
This bracket is designed to be used with Granada style rotor part number 91674078 only. There is no GM rotor that works with this bracket.
1 answers

will these brackets work with a 2 inch dropped spindle?

everett
Virginia, USA
June 13, 2013

will these brackets work with a 2 inch dropped spindle?

Answers

June 13, 2013
Jason
This brake caliper bracket is designed to mount a GM metric caliper to a Pinto/Mustang II spindle for use with a 10.5" Granada rotor. It will not work with dropped spindles.
