Speedway Electric Fuel Pump, Blue

SAME DAY SHIPPING! Order within the next 7 hours 36 minutes and receive same day shipping

Free Shipping Free Shipping
Speedway Electric Fuel Pump, Blue
Speedway Electric Fuel Pump, Blue
Speedway Electric Fuel Pump, Blue
Speedway Electric Fuel Pump, Blue
Speedway Electric Fuel Pump, Blue
Speedway Electric Fuel Pump, Blue
Speedway Electric Fuel Pump, Blue
Speedway Electric Fuel Pump, Blue

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

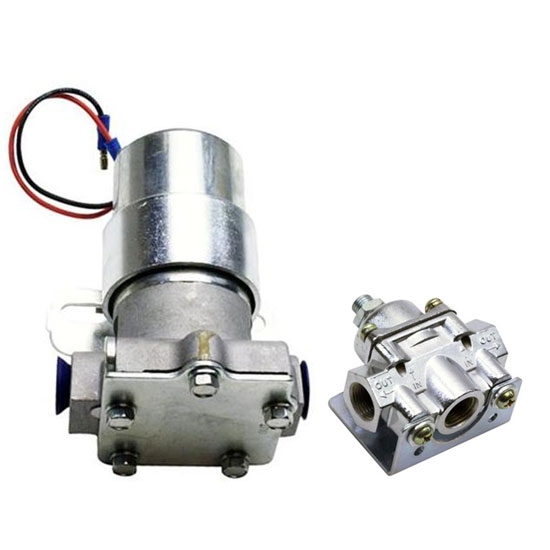

Speedway's Blue electric fuel pump with regulator is a max-pressure performance pump for gas applications only.  The pressure is preset at 14 psi and the free capacity is 110 gph.  It flows 70 gph while maintaining 9 psi.  Regulator 91012803 is supplied.

Customer Reviews

Rated 4 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
1
4 Stars
0
3 Stars
1
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Woody
Verified Purchaser
Indiana

fuel pump

June 26, 2015
quick delivery and excellent product
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

road racing nut
Verified Purchaser
Matthews, NC

Ports are British..hard to convert to AN

October 05, 2011
Was upset as couldn't locate AN adapter then found they were British threads. Push on hose OK for street use but not for competition. Finally took supplied fittings and tig welded on the male fitting I needed to use AN lines. Use NPT threads! Some buyers will need instructions as to where to mount the pump in relation to the bottom of the fuel tank.
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

5 questions : 5 answers

1 answers

can this pump be regulated with a different regulator down to 2.7 lbs without hurting it? I have a Speedway blue electric fuel pump and a holly regulator set at 2.7 lbs. The Weber carb I'm using can't go over that pressure. Will this pump work ok at that pressure.

dduty
Fort Collins, CO, USA
November 07, 2014

can this pump be regulated with a different regulator down to 2.7 lbs without hurting it? I have a Speedway blue electric fuel pump and a holly regulator set at 2.7 lbs. The Weber carb I'm using can't go over that pressure. Will this pump work ok at that pressure.

Answers

November 08, 2014
EricM
Yes this pump can be regulated down to 2 psi with a low pressure regulator such as 42712804 without hurting the pump.
1 answers

What filter set up is recommended for this pump? Is it a good idea to have one mounted before the pump as well as after the pump? Could you please recommend some options?

redwelter
Vancouver, BC, Canada
October 13, 2014

What filter set up is recommended for this pump? Is it a good idea to have one mounted before the pump as well as after the pump? Could you please recommend some options?

Answers

October 14, 2014
EricM
You will need to have a fuel filter before the pump to prevent damage to the pump. You can also install a fuel filter after the pump but it is not required in all applications. With most carbureted applications it is not necessary to have a filter after the fuel pump. A fuel filter in the 40 to 100 micron range should be sufficient for you. Here are some popular fuel filter part numbers: 91011733 91011731 91011770 91002335 94081821
1 answers

Mounting location As per the one review of this item, where do you mount this in relation to the fuel tank? I'm hoping to mount it to the frame rail forward of the tank which is mounted at the back just in front of the rear bumper. The vehicle has a fairly substantial rake so the further forward on the frame the lower it will be compared to the tank. In other words, the tank is the highest thing attached to the frame. Also, does the regulator have a guage port? Redwelter

redwelter
Vancouver, BC, Canada
June 30, 2014

Mounting location As per the one review of this item, where do you mount this in relation to the fuel tank? I'm hoping to mount it to the frame rail forward of the tank which is mounted at the back just in front of the rear bumper. The vehicle has a fairly substantial rake so the further forward on the frame the lower it will be compared to the tank. In other words, the tank is the highest thing attached to the frame. Also, does the regulator have a guage port? Redwelter

Answers

July 01, 2014
EricM
Yes you can mount this pump on your frame rail close to the fuel tank. This pump doesn't seem to have much issues with mounting location but as a general rule you want to keep electric pumps as low as possible and as close as possible to the tank in order to extend the life of the pump. The regulator does not have a dedicated fuel pressure gauge port. If you will only be using one of the outlets then you can use the other outlet for a fuel pressure gauge. Otherwise we offer a fitting with a fuel pressure provision such as 6177005 or 6177008.
1 answers

can pump be set to hold 7.5 psi ( blue or black pump ) 351 bored .060 over with Kieth Black pistons, extreme energy cam, aed carb 750ho double pumper

jimbro59
South Carolina, USA
February 03, 2013

can pump be set to hold 7.5 psi ( blue or black pump ) 351 bored .060 over with Kieth Black pistons, extreme energy cam, aed carb 750ho double pumper

Answers

February 04, 2013
Jason
The red Speedway electric fuel pump is preset to 7 psi. The blue and black are preset at 14 psi. To achieve 7.5 psi you will need an adjustable regulator. The blue pump does include a regulator adjusted from 4.5 to 9 psi
1 answers

how many amps does this fuel pump draw?

August 27, 2011

how many amps does this fuel pump draw?

Answers

August 29, 2011
John
This pump advertises only 3 amp of current draw and a 7.5 amp fused circuit is recommended. We also offer the similar pump in Holley format under part number 42512802 if desired.
Page 1 of 1

You may also be interested in:

Holley 12-802-1 110 GPH Blue Electric Fuel Pump with Regulator
(Part #42512802)


Holley's Blue electric fuel pump with regulator is a max-pressure performance pump for gas applications only. The pressure is preset at 14 psi and the free capacity is 110 gph. It flows 70 gph while maintaining 9 psi. Regulator 427-12803 is supplied. Has a 3/8" NPT inlet/outlet.

  • Tumble polished billet look
  • New lower housing casting for enhanced fuel flow
  • Improved design for street/strip applications
  • Distinctive "Blue" logo
  • Flows 110 GPH (free flow)
  • Flows 88 GPH at 9 PSI
  • Maximum pressure is 14 PSI
  • Includes fuel pressure regulator
  • Motor draws only 3 amps current
  • 7-1/2 amp fuse recommended
  • Provides constant fuel flow with no pulsation
  • Has externally accessible pressure relief valve (max 14 PSI)
  • Rotor/Vane pump design is more tolerant of contaminated fuels
  • Weighs only 3 lbs.
  • Includes mounting bracket
  • Repair kits are readily available
  • NOT compativle with alcohol or methanol fuels
  • Use of a safety shut-off switch recommended
  • Not designed or recommended for use with fuel injection systems
  • 3/8 NP intlet/outlet

Holley Fuel Pump Installation Instructions (PDF)

Fuel Pump Tech Info (PDF)

Aeromotive 11203 SS Series Red High Output Billet Fuel Pump
(Part #91011203)


This is the new standard in 12-volt electric fuel pumps. This high flow fuel pump boasts a high-quality billet aluminum body and pumping mechanism that feature Aeromotive's proprietary composite rotors, stainless steel vanes and precious-ground, heat-treated steel plates.

The red version is for street/strip or mild racing applications and flows more than 140 GPH with 18-20 psi of pressure and will need an external regulator.

Has a polished body that looks great on any street rod or race car.

  • P/N 910-11203 features 3/8” NPT inlet and outlet ports.
  • Perfect for use with a Bypass Regulator (P/N 910-12804).
  • Fuel flow exceeds 140 GPH at 13.5 volts.
  • Pump provides 14 PSI fuel pressure – perfect for cars that leave hard.
  • Pumping mechanism features our proprietary composite rotor, stainless steel vanes and precision ground, heat treated steel plates.
  • Ideal for dedicated nitrous delivery.
  • Alcohol compatible.
  • Low current draw. (under 5 amps)



Holley 12-753 Fuel Pump Relay Kit, 30 Amp
(Part #42512753)


This Holley kit is intended primarily for those applications running an electric pump. The long wire runs in these kinds of installations can sometimes result in a voltage drop at the electric pump. Installation of this kit is good insurance that the fuel pump will be receiving full voltage from the battery. Holley P/N 12-753 can be used with any electric fuel pump, as long as the current load is not above 30 amps. It will work with 12, 16 and 24 volt systems and comes equipped with 12 AWG that provide extra current carrying capacity with minimal voltage loss. A 30 amp relay is included with a relay socket wired with extra long leads specifically designed to reduce the number of splices required. Quality insulated crimp connectors are provided to make necessary splices where required. Detailed installation instructions are included.

  • Can be used with any electric fuel pump, as long as the current load is not above 30 amps
  • Will work with 12, 16 and 24 volt electrical systems and comes equipped with 12 awg wires that provide extra current-carrying capacity with minimal voltage loss
  • 30 amp relay is included with a relay socket wired with long leads specifically designed to reduce the number of splices required
  • Quality insulated crimp connectors are provided to make the necessary splices, where required
  • Detailed instructions included

Installation Instructions (PDF)

Holley 12-810 Universal Safety Pressure Switch
(Part #42512810)


The Holley P/N 12-810 fuel pump pressure safety switch is a good peace of mind to help save your engine in the unlikely event of oil pressure loss. The safety switch is installed in conjunction with the oil pressure switch and if a loss of oil pressure should occur, the switch will remove power from the electric fuel pump stalling the engine due to a loss of fuel. This safety switch can help to save your engine if it losses oil pressure.

  • Safety pressure switch that reads oil pressure
  • Will shut off fuel pump when oil pressure drops below 5 psi
  • Includes detailed instructions

Installation Instructions (PDF)

Holley 12-813 Mechanical Fuel Pump Mounting Pad Cover
(Part #42512813)


Mechanical Fuel Pump Mounting Pad Cover Big/Small Block Chrysler

  • Mechanical fuel pump mounting pad cover for Chrysler V-8's
  • Used to cover hole in block when mechanical fuel pump is removed to use an electric pump
Holley 12-814 Mechanical Fuel Pump Mounting Pad Cover
(Part #42512814)


Mechanical Fuel Pump Mounting Pad Cover Big/Small Block Chevrolet

  • Mechanical fuel pump mounting pad cover for small and big block Chevrolet V-8's
  • Used to cover hole in block when mechanical fuel pump is removed to use an electric pump
Longacre 43600 Low Pressure Shut-Off Switch
(Part #6044360)
                        This automatic shut-off switch shuts off the ignition or an electric fuel pump when pressure drops below 12 psi. Prevents engine damage, helps prevent fires, and keeps the motor from starting until oil-pressure rises. Should be used with a momentary bypass switch (913-64381).

Speedway Replacement Nitrile O-Rings for -6 AN Fittings, Pack/10
(Part #6173474)


Speedway replacment "Nitrile 1" AN fitting O-rings are designed for standard fuel or oil applications.

Bag of 10 O-rings.

Fitting Thread Application Chart (GIF)

Item Details

.468" I.D., .078" thick
