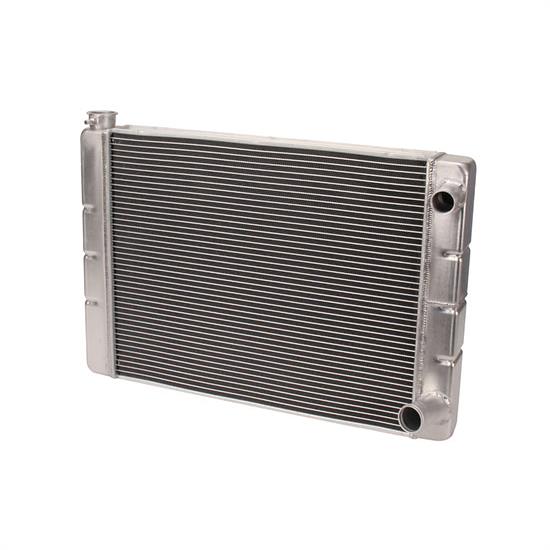

Speedway Double Pass Aluminum Radiator, Chevy

SAME DAY SHIPPING! Order within the next 7 hours 31 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Material Type:
Aluminum
Overall Height:
19.00
Overall Width:
-
Transmission Cooler:
No
Tube Style:
Crossflow
Sold in Quantity:
Each
Overall Thickness:
3.00
Row Quantity:
Dual
Finish:
Natural
Inlet Location:
Upper Right
Inlet Size:
1.50
Outlet Location:
Lower Right
Core Height:
18.25
Core Width:
-
Core Thickness:
2.25
Tube Size:
1.00
Filler Neck Height:
1.00
Shroud:
No
Radiator Style:
Double Pass
Garage Sale:
No
Speedway Double Pass Aluminum Radiator, Chevy
Speedway Double Pass Aluminum Radiator, Chevy
Speedway Double Pass Aluminum Radiator, Chevy
Speedway Double Pass Aluminum Radiator, Chevy
Speedway Double Pass Aluminum Radiator, Chevy
Product Video
Speedway Double Pass Aluminum Radiator, Chevy

Click image to enlarge



Details

Reviews

Q & A

What's in the Box

Leave it to Speedway Motors to offer you a professional quality aluminum racing radiator at an affordable price. This double pass radiator works well for oval track racing applications where maximum efficiency is needed. The double pass design offers a 5 to 20 degree coolant temperature drop versus a standard, single pass radiator with equal core size.

This double pass radiator features 100% all-aluminum construction. The furnace-brazed core increases durability compared to other radiators with epoxy-glued or crimped-gasket sealing methods. Two rows of 1 inch aluminum tubes allows this radiator to out cool  a similarly sized radiator with five rows of copper tubes. A rugged billet aluminum filler neck with screw-in bleed is also included.

This radiator is designed for Chevy applications with both water necks on the passenger side. The upper inlet measures 1-1/2 inches outside diameter and the lower outlet measures 1-3/4 inches outside diameter. The radiator is available in 22", 24", 26", 28", or 31" widths, including the end tanks. All sizes are 19 inches tall.

  • All-aluminum, furnace-brazed construction
  • No epoxy, glue or crimped in gaskets
  • Maximum amount of fins per inch allows greater heat transfer
  • Two rows of 1" aluminum tubes (out cools five rows of copper)
  • Billet aluminum filler neck
  • Available in 22", 24", 26", 28", or 31" width (measurements include tanks)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Customer Reviews

Rated 4.5 out of 5 by 22 reviewers.
RATING BREAKDOWN
22 reviews
5 Stars
15
4 Stars
5
3 Stars
0
2 Stars
2
1 Star
0
RECOMMEND THIS PRODUCT:

Speed racer
Verified Purchaser
Sedan ks

Just what the doctor ordered

June 25, 2015
B-mod race car went from running 240 to 180.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

BIG GUY
Verified Purchaser
PORTLAND ND

AAAAAAAAAAAAAAAAAAA++++++++++++++++++

June 17, 2015
GREAT PRICE GREAT PERFORMANCE WOULD BUY AGAIN AND AGAIN
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

schrader nation
Verified Purchaser
Verified Reviewer
colville wa

nice fit cools as good as my old affco radiator

June 17, 2015
fit awesome measured out exactly as addvertised and cooled as good as my expensive affco
Pros:
  • Would Buy Another One
  • Worked good
  • Perfect Fit
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

dennis the menace
Verified Purchaser
williston north dakota

these radiators are well built and worth the money u charge

June 04, 2015
funny enough I use the chevy double pass radiator on a ford engine with the older water pump it works out great
Pros:
  • Well built
Cons:
  • None
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

wydirt03
Glenrock WY

cheap great radiator

April 05, 2015
keeps my car running cool and they're cheap if I have to replace one. All I use in my race cars
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Guffey24
Verified Purchaser
Hendersonville, NC, USA

Cheap

February 23, 2015
I ended up buying two of these , only because I had already made the mounts for it, the first one leaked in two different spots, one around the lower hose area, and bottom right small tubes I would not have bought it again but I spent some time building the mounts in the vehicle
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Merchant Response:

Speedway Motors Customer Service team has issued this customer a shipping label for a refund/return. We apologize for any inconvenience this may have caused and are always happy to help in any way that we can!
DDayZ28
Verified Purchaser
Claremore, OK, USA

Best raditor I've bought ever!!

August 20, 2014
Got this raditor for my 1980 Z28 with a 383 running propane and combined it with a 1996 thunderbird cooling fan and a 70 amp relay from speedway and I got the car to idle at 155 degrees and when cruising runs around 165-170, very pleased with this would put this on any of my hot rods!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

holtff1074
Verified Purchaser
Bristol,Va

Great Product @ a great price

January 25, 2014
while I must say I haven't yet put the radiator I bought to use as it's for my project car,i don't believe I could have made a better choice.When I read other reviews and compared what I read to other radiator options I've shopped for I felt I had got extremely lucky because of quality & price.Plus I received a great price on shipping.This radiator offers both tne inlet/outlet options I had been shopping for and with crossflow cooling.I'm anxious for the completion of the car so I can put it to use!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

fordmod
fordmod

Works great

September 05, 2013
Used the chevy style double pass radiator on my Ford powered modified, and lowered the temp by 20*. Never had any problems with it and it gets abused every weekend.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

oldsguy
Bellevue, NE, USA

great quality for the price

September 04, 2013
i have used this and a few other speedway aluminum radiators in my projects. very well made, function the way they should, and can be compared to others of almost twice the cost. the only thing I did not care for was no build in was drain provided.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 3

Product Q&A

10 questions : 12 answers

1 answers

What is the max pressure for this radiator...the highest pressure cap that can be used?

ukyman
March 26, 2015

What is the max pressure for this radiator...the highest pressure cap that can be used?

Answers

March 26, 2015
EricM
In racing applications we commonly use a 28 to 32 psi radiator cap such as 91015707 or 91015628. You can certainly run a lower pressure cap if your application doesn't require a 32 psi cap.
1 answers

do you use a special top hose for sbc engines or change water neck?

bmod
June 10, 2014

do you use a special top hose for sbc engines or change water neck?

Answers

June 11, 2014
EricM
We typically use a pivoting water neck such as 91015821 or 91015820 along with a flex hose when using a double pass radiator with a SBC engine
1 answers

Is there material at the top and bottom of the radiator to drill through for mounting?

ukydude
December 17, 2013

Is there material at the top and bottom of the radiator to drill through for mounting?

Answers

December 17, 2013
EricM
There is a small flange at the top and bottom that is approximately 1/2" tall which can be used to mount the radiator. You may also be interested in one of our mounting kits which is part number 91734700.
2 answers

bottom outlet I need a 22 inch wide...which way does the bottom outlet point? It does look like it is mounted at an angle, from the pics. If it is straight and pointed to the water pump outlet it won't work on my truck. If it is straight and pointed down, it will work.

rebel
August 27, 2013

bottom outlet I need a 22 inch wide...which way does the bottom outlet point? It does look like it is mounted at an angle, from the pics. If it is straight and pointed to the water pump outlet it won't work on my truck. If it is straight and pointed down, it will work.

Answers

September 06, 2013
fordmod
Its pointed towards the water pump
August 27, 2013
Jason
The bottom outlet on the Speedway double pass radiator comes out straight and pointed in towards the center of radiator.
1 answers

Is there a fan shround that fits this radiator?

lfagan
Virginia
June 19, 2013

Is there a fan shround that fits this radiator?

Answers

June 20, 2013
Jason
The Speedway double pass radiator is offered in 22", 24", 26" 28" and 31" wide. If needing shroud only, Speedway offers part #91734300 that will work with the 22" and 24". We also offer a universal aluminum shroud part #9174022 that is 22" wide and part #9174032 that is 26" wide.
1 answers

exact dimensions I need to know the exact overall dimensions not including the filler neck on part number 917340-28

diehardgm
March 05, 2013

exact dimensions I need to know the exact overall dimensions not including the filler neck on part number 917340-28

Answers

March 05, 2013
Jason
The 28" speedway double pass radiator has the following dimensions: Overall Width : 28.00 " Overall Height : 19.00 " Overall Thickness : 3.00 " Core Width : 22.75 " Core Height : 18.25 " Filler Neck Height : 1.00 " Radiator Style : Double Pass Inlet Location : Upper Right Outlet Location : Lower Right Inlet Size : 1.50 " Outlet Size : 1.75 " Row Quantity : Dual Tube Size : 1.00 " Tube Style : Crossflow Transmission Cooler : No Material Type : Aluminum Finish : Natural
1 answers

What is the dry weight of this radiator?

August 24, 2011

What is the dry weight of this radiator?

Answers

August 25, 2011
Jason
The weight will depend on which size you get. 22" - 15 pounds 24" - 15.5 pounds 26" - 16 pounds 28" - 17.5 pounds 31" - 21.2 pounds
2 answers

How much of a gain would you typically see with a double pass over a standard radiator?

May 18, 2011

How much of a gain would you typically see with a double pass over a standard radiator?

Answers

September 06, 2013
fordmod
If your talking about temp wise my race car went from 220+ degrees after a race with a single pass radiator to 190 - 200 degrees after a race with a double pass radiator
May 18, 2011
Jason
There maybe a 5-10 degree change but this will depend on application. Is standard radiator working at or beyond its peak? Engine temperatures are often dictated more by fuel/ignition systems than by cooling system. Also water pumps are as key in a cooling system as a radiator.
1 answers

How many fins per inch are used? Also, the lower 1-3/4 hose, is it angled at all? Is it similar in angle to the Afco?

ScottR
Ohio
March 25, 2011

How many fins per inch are used? Also, the lower 1-3/4 hose, is it angled at all? Is it similar in angle to the Afco?

Answers

March 30, 2011
Mike
Thanks for your inquiry into our products, there is a variety of fin counts but generally they range from 11-18 per inch. The lower hose is angled but I cant tell you if it is exactly the same as Afco but it will be similar.
1 answers

Will a 26 x 18 fan shroud work on the 31x19 rad

some dude
18951
May 25, 2015

Will a 26 x 18 fan shroud work on the 31x19 rad

Answers

May 27, 2015
Eric
Expert
The core width of the 31" wide radiator is 25 3/4" so you will need to trim a 26" fan shroud some in order for it to fit properly.
