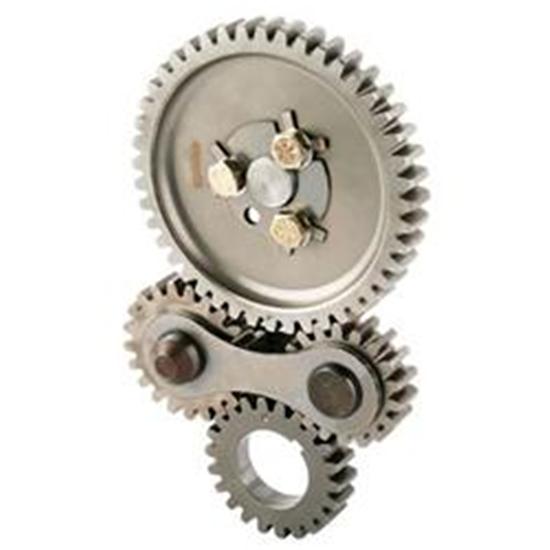

These Speedway Small Block Chevy Premium Gear Drives are made in the USA. Superior quality makes this the choice of engine builders everywhere.

  • All gears are 8620 carburized steel
  • Cam gear has press-fit Torrington bearing
  • Timing adjusted with dowel pin inserts or 3 keyway crank
  • Includes cam button, lockplate, and bolts
  • Quiet operation


Application

  • Chevy V6 200-229-262
  • Chevy V8 283-302-305-307-327-350-400

You may also be interested in:

Tru-Gear Small Block Chevy Gear Drive


Replace your timing chain with a Speedway Tru-Gear gear drive. Unlike timing chains, a gear drive doesn't stretch, so your cam timing stays more accurate. We builds these drives with dual idler gears, making them more stable than single idler gear drives. A Tru Gear gear drive is as easy to install as a timing chain and will fit under your stock timing chain cover.

  • Easy to install
  • Compatible with all standard camshafts
  • SAE 660 silicon bronze rear thrust ring included
  • Rugged Cr40 alloy steel gears assure prolonged trouble-free operation
  • Axial needle and cage forward thrust bearings reduce friction
  • Designed for precise multiple cam timing adjustments
  • Absolutely no adverse wear to camshaft or valvetrain components
  • Dyno tests prove no horsepower loss compared to a chain

For use on Chevrolet Small Block engines 1957–1995 262-400 c.i. all without “FACTORY” hydraulic roller camshaft.

Small Block Chevy Gear Drive Installation Instructions (PDF)

Chevy Cam Degree Bushing Kit, Even Degrees


Used for degreeing in camshaft. Even #s are a set of five. Use a 13/32” drill bit to re-drill dowel hole in cam gear. Be sure to securely fasten cam gear when drilling to prevent elongating the hole.

550-85 Instructions (PDF)

Shaver-Wesmar Small Block Chevy Gear Drive, Standard Cam Height


Ron Shaver and Bob Westphal have combined their 70+ years experience in the sprint engine building business to create the ultimate gear drive.

  • Made of ultra-light aluminum aircraft alloy
  • Crack resistant steel idler gear support
  • Gears precision cut from 9310 steel, with no more than a .001 total run out with 20 degrees pressure angle
  • Fits most small block Chevys
  • Highly adjustable and easy to install
Quick Change Cam Cover Kit, Plain


Quick change cam cover eliminates the need for dropping the oil pan when replacing timing chain or advancing camshaft. Fits small block Chevy with "long" style (1969-1986) water pump.

Use of this cover with a "short" water pump typically causes clearance issues with the back of the pump. It can be used with a short pump, but the pump would need to be shimmed for clearance.

Speedway Small Block Chevy Premium Noisy Gear Drive


These Speedway Premium Small Block Chevy Gear Drives are made in the USA. Superior quality makes this the choice of engine builders everywhere.

  • All gears are 8620 carburized steel
  • Cam gear has press-fit Torrington bearing
  • Timing adjusted with dowel pin inserts or 3 keyway crank
  • Includes cam button, lockplate, and bolts
  • Noisy

Tru-Gear Small Block Chevy Noisy Gear Drive


Replace your timing chain with a Speedway Tru-Gear gear drive. Unlike timing chains, a gear drive doesn't stretch, so your cam timing stays more accurate. We builds these drives with dual idler gears, making them more stable than single idler gear drives. A Tru Gear gear drive is as easy to install as a timing chain and will fit under your stock timing chain cover. Noisy gears give your engine a "supercharged" sound.

For use on Chevrolet Small Block engines 1957–1995 262-400 c.i. all without “FACTORY” hydraulic roller camshaft.

453-3271N Instuctions (PDF)

Cloyes Gear 9-3146A Hex-A-Just Timing Chain Set, S/B Chevy, Raised Cam


Cloyes Hex-A-Just True Roller Set is infinitely adjustable to plus or minus six degrees. No machining required, no fumbling with offset bushings. Simply dial in your cam timing with the turn of a wrench, then tighten the cam bolts to lock the cam position in place. Whether your destination is the street or the track, Hex-A-Just will get you there fast!

  • Includes needle bearing thrust bearing
  • Billet Steel, Induction Hardened Sprockets
  • Cloyes' Patented Hex-A-Just allows for +/- six degrees adjustment
  • Premium Cloyes True Roller Chain with .250” diameter rollers
  • 3 Keyway Billet Crank Sprocket
  • All sets “Hand Matched” at factory to ensure accurate center distance
