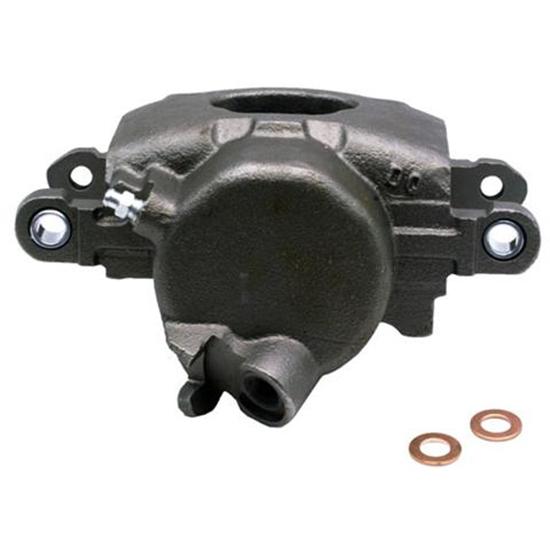

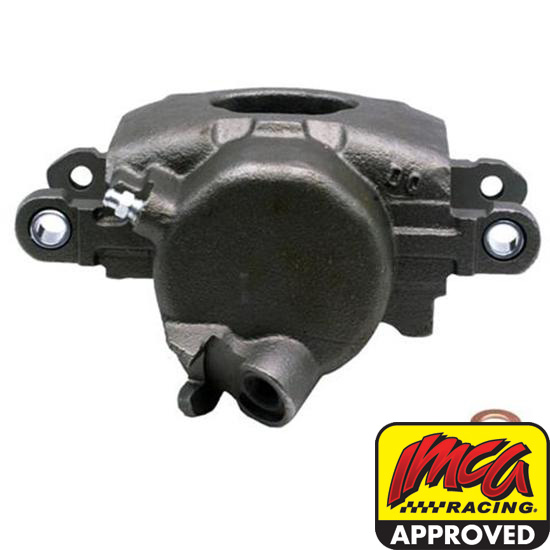

This caliper is a standard full size GM caliper used for years on many vehicles (1969-72 Chevelle, 73-77 A-Body, 1969-1981 Camaro, 1977 Caprice, S-10 pickups, etc). It will fit any bracket / spindle designed for the large GM calipers (7” mount width).
Depending on the spindle and rotor size it will not fit in most 14” wheels (nor in 15” drum brake wheels).
The overall length of these slide bolts is 4-3/8". The underhead length is 3-3/8". The thread on the bolts is 7/16-20 (US fine).
Stop guessing which banjo fittings go with which brake lines. With this kit you get two rubber front brake lines, two banjo bolts with seals, and a pair of easy-to-install brake line tabs and clips.
Lines are 18" in length. Features 3/8"-24 IFF at the chassis fitting to accept 3/16" brake line.
High performance street four piston aluminum caliper upgrade kit for '69-'77 GM cars with front disc brakes. Kit includes two calipers, pad pins, one set of brake pads, and mounting brackets.
Calipers are available in plain finish (clear coated) billet, fully polished, red powder coat, or black powder coat.
NOTE: Vehicle must be equipped with GM single piston calipers and stock diameter (11") rotors.
Polished is garage sale clearance!
One part number gets you all the parts needed to hook a -3 AN style line to a GM caliper. Each kit includes 2 banjo bolts, 2 banjo fittings, and 5 washers. Each kit services 2 calipers.
One part number gets you all the parts needed to hook a -4 AN style line to a GM caliper. Each kit includes 2 banjo bolts, 2 banjo fittings, and 5 washers. Each kit services 2 calipers.
