Small Block Chevy Hugger Tight-Fit Headers for Angle Plug Heads, Black

Free Shipping Free Shipping
Specs
Material Type:
Steel
Overall Height:
10.25
Sold in Quantity:
Pair
Finish:
Natural
Tube O.D.:
1.63
Port Height:
1.55
Port Width:
1.50
Flange Thickness:
.32
Flange Style:
Round Port
Collector Diameter :
2.50
Header Dimension A:
4.15
Header Dimension B:
10.30
Header Dimension C:
18.25
Gasket(s) Included:
Yes
Hardware Included:
Yes
Garage Sale:
No
Header Tube Type:
Block Hugger

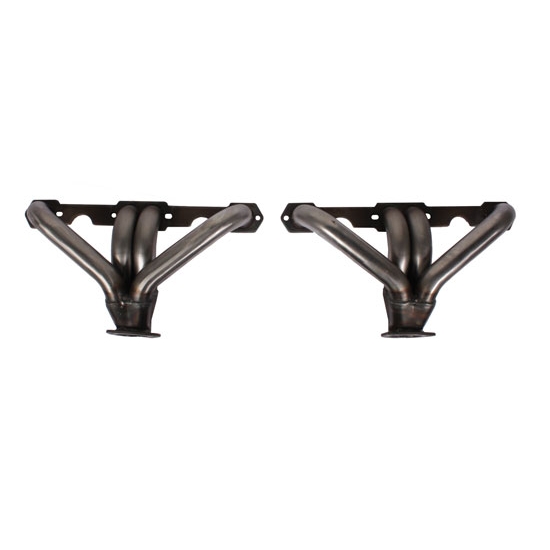

Small Block Chevy Hugger Tight-Fit Headers for Angle Plug Heads, Black
Small Block Chevy Hugger Tight-Fit Headers for Angle Plug Heads, Black
Small Block Chevy Hugger Tight-Fit Headers for Angle Plug Heads, Black

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

These tight-fit headers are designed to be used with standard exhaust port Small Block Chevy heads that have angle spark plugs. Features 1-5/8" primary tubes and 2-1/2" collectors with 2-1/4" outlets. These shorty headers are perfect for tight-fit installations.

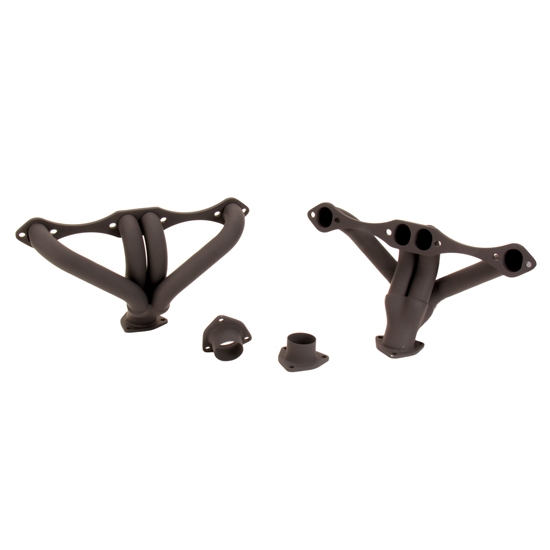

The block hugger hearders come with bolts, gaskets and reducers. The port openings on the tight fit headers are round and work fine on heads with round or rectangle ports.

Header Dimensions (GIF)

Application

  1. Can be used with most oil filter systems and transmission/starter combinations.
  2. Does not fit '55-'57 Chevy cars, Camaros, or other modern vehicles which have a crossmember below the engine's center two exhaust ports.

Customer Reviews

Rated 4 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
0
4 Stars
2
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

A/C Man
Verified Purchaser
Verified Reviewer
Lawton, Oklahoma

Got just what I ordered

May 24, 2015
These went on a 93 Volvo with an LT1 and TKO 5 speed. Passenger side was an easy fit. Drivers side needed a bit of modification to clear the stearing and the knock sensor had to be moved but all in all they worked out nicely. Thank you
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

curlcurl
Verified Purchaser

This product is a nice close fit

April 27, 2014
This product is a nice close fit. The header tubes stay away from the plug wires but hug the engine tight. Had to cut and extend the driver side because of steering column interference.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

5 questions : 5 answers

1 answers

Will these fit a 1987 s-10 with a 350 and angle plug heads?

ericq1977
Laurens, SC 29360, USA
January 29, 2015

Will these fit a 1987 s-10 with a 350 and angle plug heads?

Answers

January 29, 2015
EricM
No these will not fit an S10. The only header we offer to fit your application is 41869520 but they do not work with angle plug heads. Sorry we do not have a good option on headers for you.
1 answers

will these headers fit a 1974 nova with an engine swap?

alexhz
June 28, 2014

will these headers fit a 1974 nova with an engine swap?

Answers

June 30, 2014
EricM
The Nova is one of the hardest for header fit and these headers may not be the choice. From the head out they go 4.15” and from the top of the flange to the bottom of the collector is 10.25”. You need to verify clearance before ordering and the hook up pipe clearance as the collector is below the center two ports. You may want to look at header set number 9300108 as these exit more towards the rear.
1 answers

What gauge steel are these headers made of?

glenn1234
March 28, 2013

What gauge steel are these headers made of?

Answers

March 29, 2013
Jason
The tight fit headers have a 5/16" thick flange and 18 gauge primary tubes.
1 answers

Will these work with straigh plug heads too??

Hemirrhoid
Western Wisconsin
April 08, 2015

Will these work with straigh plug heads too??

Answers

April 09, 2015
EricM
Yes these will work with straight plug cylinder heads also but these do not hug as tight to the block as the standard tight fit headers such as 9300101.
1 answers

Will these fit a 4x4

Smokey
Culver,OR
April 18, 2015

Will these fit a 4x4

Answers

April 20, 2015
Eric
Expert
These headers may fit into some 4x4 applications. First check to be sure that there is sufficient clearance to connect the exhaust pipe up to these since the exit straight down from the center two exhaust ports. Also here are some measurements to help determine if they will fit in the space you have available: Header Dimension A: 4.15" Header Dimension B: 10.30" Header Dimension C: 18.25"
Page 1 of 1

You may also be interested in:

Small Block Chevy Hugger Headers for Angle Plug Heads, AHC Coated
(Part #9308037H)


These tight-fit headers are designed to be used with standard exhaust port Small Block Chevy heads that have angle spark plugs. Features 1-5/8" primary tubes and 2-1/2" collectors with 2-1/4" outlets. Comes with bolts, gaskets and reducers. The port openings on the header are round and work fine on heads with round or rectangle ports.

These shorty headers feature our unique AHC ceramic coating. Armor Hot Coating (AHC) is a heat resistant, ceramic coating applied to the outside of the header. This coating will reflect heat, which helps retain more heat within the header tube while simultaneously speeding up the exhaust flow. Not only will this coating help you make more horsepower, it also keeps your headers rust-free, looking great, and lasting longer (when properly maintained). If you are looking for a show-quality finish for your headers, this is it! Our AHC  ceramic coated headers will withstand exhaust temperatures of up to 1300° F.

Header Dimensions (GIF)
