Use these oil pump shafts to upgrade the weak link in any wet sump system. With steel sleeve. Works with stock or high volume pumps.
If you are running a serious small block Chevy in either a modified or sprint car you will need to step-up to this pan. At 7" deep it will still fit most applications, but has additional gates and scrapers to control the oil better. Must be used with a mini style starter.
For dry sump oil systems on 1957-1985 small block Chevys. Made from rugged steel to last. Features two crank scrapers and a removable horsepower saving louvered windage screen which will give maximum oil flow to the pickups. Has two -12 AN fittings on the passenger side. Measures 4-1/2" deep. Will work with stock or mini starters.
Provides oil from external dry sump oil pumps. With AN 10 fitting for supplying oil to the small block Chevy engine from the oil pump. Eliminates need to machine block for oil inlet fittings. Fits Small Block Chevy.
Champ style 7" deep, 6 trap doors, 2 runners, 3 crank scrapers, 7 quart sump. Stock starter will fit. These fit '55-'79 small block chevys. This oil pan is garage sale priced because the mounting flange is a little bent from shipping. NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS
Use these oil pump shafts to upgrade the weak link in any wet sump system. With steel sleeve.

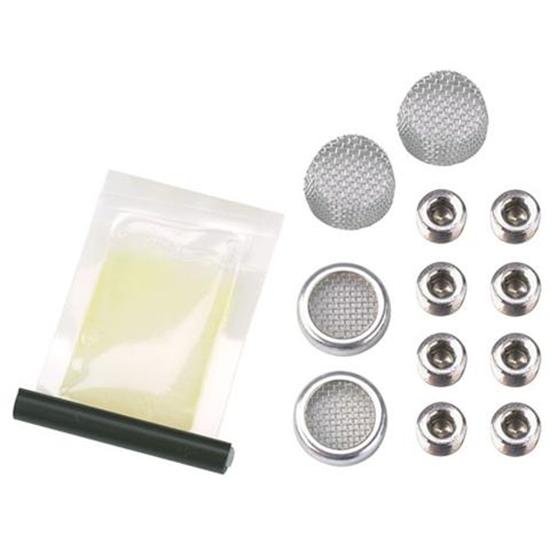

Includes 8 plugs that redirect oil to the front and rear return galleries. Returns oil to sump area. Inexpensive engine insurance Traps metal fragments or loose components resulting from valvetrain failure before reaching vital engine parts Stainless steel mesh screens are fitted over holes in lifter gallery with supplied epoxy
When running a dry sump oil system on your Small Block Chevy you should use this block-off plate on the rear main cap cover of the oil gallery. Simulates torque loading Anodized for protection Hardware included

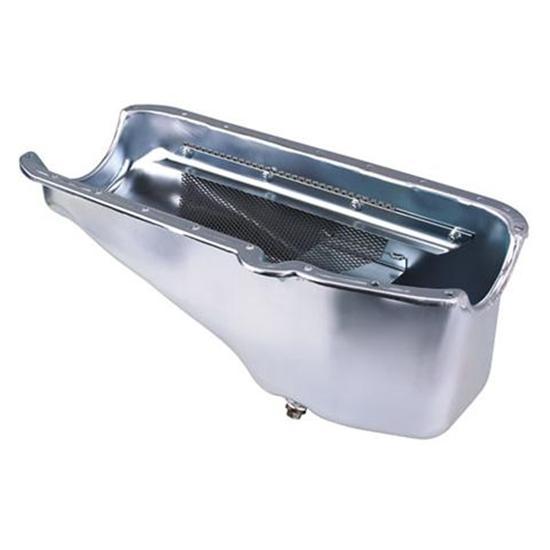

These stock appearing street oil pans feature a 7-1/2" deep rear sump and have one 6" trapdoor, one crank scraper, and a removable horsepower saving windage tray. The oil capacity is 5 quarts with a filter attached. This oil pan is garage sale priced because the left rear corner of the mounting flange is a little bent. NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS
If you are running a serious small block Chevy in either a modified or sprint car you will need to step-up to this pan.At 7" deep it will still fit most applications but has additional gates and scrapers to control the oil better.Must be used with a mini style starter.
Champ style pan for 1955-1979 Small Block Chevy. 7" deep, 6 trap doors, 2 runners, 3 crank scrapers, 7 quart sump. Stock starter will fit. Drivers side dipstick. Center to center of rear bolt holes is 5-13/16". 910-15104 Instructions (pdf)

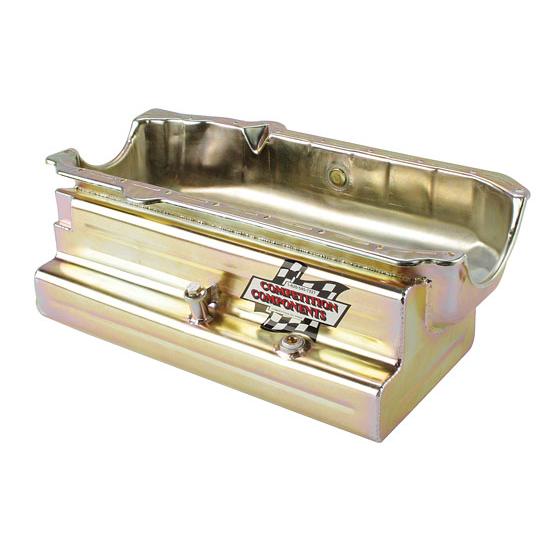

Comes with extra tough skid plate installed. 7 quart capacity, gold irridated wet sump pan for S/B Chevy street stocks and sprints. Helps eliminate oil problems. Includes windage tray and baffles. Pan is 13" wide and 7" deep.
Champ style pan for 1955-1979 Small Block Chevy. 7" deep, 6 trap doors, 2 runners, 3 crank scrapers, 7 quart sump. Stock starter will fit. Drivers side dipstick. Center to center of rear bolt holes is 5-13/16". 910-15104 Instructions (pdf) This pan is garage sale priced because it is the older style slightly different than what we currently offer. NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS

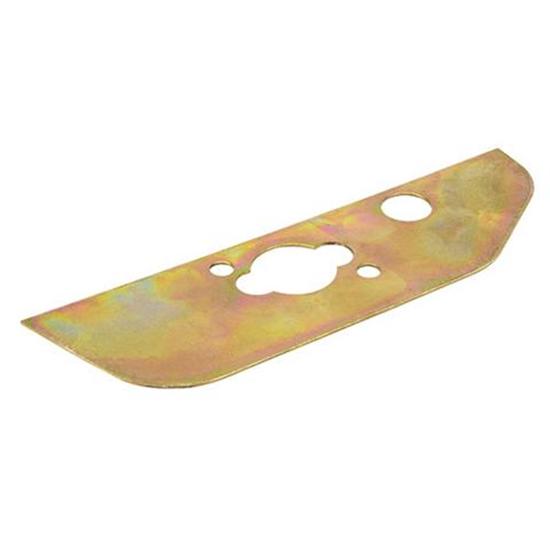

Keeps sump oil from reaching crankshaft. Mounts between pump and main cap. Requires trimming.
Fits dry sump systems in S/B Chevys. 4-1/4" deep. Kickout runs length of pan for increased oil control. AN 12 fittings on the passenger side only. Must use aftermarket starter. This oil pan is garage sale priced because the mounting flange is slightly warped and can't be sold as a first. NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS
For dry sump systems on 1957-85 small block Chevys. Measures 4-1/4" deep. Kickout runs length of pan for increased oil control and torque. It also has two crank scrapers and a removable horsepower saving windage screen that will give maximum oil flow to the pickups. Has two -12 AN fittings on the passenger side only. Must use aftermarket mini-starter.
If you are lucky enought to be putting together a '62-'67 Chevy II, you know the oil pan is a little bit special. These Moroso pans take the pain out of the engine install while giving it a better oiling system. Has a 6 quart capacity (not including filter). Wet Sump, 9" Deep Clears 3.80" stroke with most steel rods Notched sump clears steering linkage Compatible with most starter/flywheel combinations Reduces oil temperature For cars without power steering. Pump pick-up NOT included. Moroso Oil Pan Instructions (PDF)
If you are lucky enough to be putting together a '62-'67 Chevy II, you know the oil pan is a little bit special. These Moroso pans take the pain out of the engine install while giving it a better oiling system. Has a 6 quart capacity (not including filter). Wet Sump, 9" Deep Clears 3.80" stroke with most steel rods Notched sump clears steering linkage Compatible with most starter/flywheel combinations Reduces oil temperature For cars without power steering. Pump pick-up NOT included. Moroso Oil Pan Instructions (PDF)
Screen style oil windage tray for S/B Chevy engines using a stock style pan with rear sump. Ready to install.Fits 2 or 4 bolt main blocks.
When running a dry sump oil system on your Small Block Chevy you should use this block-off plate on the rear main cap cover of the oil gallery.Simulates torque loadingAnodized for protectionHardware included
Screen style oil windage tray for S/B Chevy engines using a stock style pan with rear sump. Ready to install.Fits 2 or 4 bolt main blocks.Fit the standard "medium" journal blocks which would be typical late 302 305 307 327 and 350 blocks.
Screen style oil windage tray for S/B Chevy engines using a stock style pan with rear sump. Ready to install. Fits 2 or 4 bolt main blocks. Fit the standard "medium" journal blocks which would be typical late 302, 305, 307, 327 and 350 blocks.
Screen style oil windage tray for S/B Chevy engines using a stock style pan with rear sump. Ready to install. Fits 2 or 4 bolt main blocks.
Tank mounting bracket for Peterson 6" diameter, 2.5 gallon dry sump tanks # 08-0827, 08-0827 (-16 Return), and 08-0828. Sprint car tank bracket bolts directly to the front of the small block Chevy engine. Fabricated from aircraft quality aluminum Uses stainless steel straps for durability
