Stock type oil dipstick replacement for Small Block Chevy. Works with 1955-1979 blocks where the dipstick is on the driver's side.
These unplated, stock capacity oil pans are perfect for projects that don't need a chrome or aluminum pan. Now also available with inspection plug!
These unplated, stock capacity oil pans are perfect for projects that don't need a chrome or aluminum pan. This oil pan is for a 1 piece rear main seal Now also available with inspection plug!
Chrome steel oil pan for 1955-79 small block Chevy with driver's side dipstick. Pan depth is 7". Center-to-center of the rear bolt holes is 5-13/16".
Comes with extra tough skid plate installed. 7 quart capacity, gold irridated wet sump pan for S/B Chevy street stocks and sprints. Helps eliminate oil problems. Includes windage tray and baffles. Pan is 13" wide and 7" deep.
This chrome steel oil pan fits '80-'85 Small Block Chevy V8s with a passenger side (RH) dipstick. Note: Center-to-center of rear bolt holes is 5-3/4".
Chrome steel oil pan for '86-newer Chevy blocks which have the dipstick on the passenger's side. Center-to-center for the rear bolt holes is 6-9/16". The half-moon dip at the back of the pan is 2-3/8" deep and 5-1/4" wide. Pan is 8" deep at its lowest point.
These unplated, stock capacity oil pans are perfect for projects that don't need a chrome or aluminum pan. Comes with inspection plug.
Champ style pan for 1955-1979 Small Block Chevy. 7" deep, 6 trap doors, 2 runners, 3 crank scrapers, 7 quart sump. Stock starter will fit. Drivers side dipstick. Center to center of rear bolt holes is 5-13/16". 910-15104 Instructions (pdf)
Polished, 1-piece cast aluminum finned oil pan, ribbed for beauty, strength and heat dissipation. This pan uses a drivers side dipstick. Includes drain plug and mounting bolts.
These raw oil pans with left hand side dipstick are perfect for building your own custom claimer race pan. Just purchase our claimer pan kit separately and assemble the kit to fit these oil pans. These oil pans are designed for use with 1955-1979 small block chevy applications. Works for street, strip, road race, and circle tracks Stock style oil pan for use with claimer pan kit Raw finish 1955-79 small block Chevy Left hand side dipstick Be sure include our claimer pan kit ( 91715900 ) with these raw ...
1980-'85 small block chevy raw oil pan with right hand side dipstick.
If you are running a serious small block Chevy in either a modified or sprint car you will need to step-up to this pan. At 7" deep it will still fit most applications, but has additional gates and scrapers to control the oil better. Must be used with a mini style starter.
Champ-style pan for 1986-Up small block Chevy. This pan is designed around the Camaro front stub with engine set back. Measures 7" deep with 6 trap doors, 2 runners, 3 crank scrapers, and a 8 quart capacity (including filter). Stock starter will fit. Measures 7" deep x 14" wide x 12" long.
These claimer series oil pans are our best selling circle track pans. This low cost, high quality pan designed for the budget racer. Six quart capacity, 7-1/4" deep with two gates for oil flow control. Fits with stock or mini starter. Will not fit rear steer cars unless the engine has been moved back. Vertical half moon notch in the rear near the drain plug is 1" from the rear corner, 1" wide and 5/8" deep. This notch is on the passenger side at rear. Drain plug is on the passenger side, approximately 1" from ...
These claimer series oil pans are our best selling circle track pans. This low cost, high quality pan designed for the budget racer. Six quart capacity, 7-1/4" deep with two gates for oil flow control. Fits with stock or mini starter. Will not fit rear steer cars unless the engine has been moved back. 917-15120 Instructions (PDF)
Fits Small Block Chevy. Polished aluminum oil pan, ribbed for beauty, strength and heat dissipation. This pan uses a passenger side dipstick and a one-piece rear main seal crankshaft. Includes drain plug and mounting bolts. They are 1 piece cast aluminum construction.
Fits Small Block Chevy. Polished aluminum oil pan, ribbed for beauty, strength and heat dissipation. This pan uses a passenger side dipstick. Includes drain plug and mounting bolts. They are 1 piece cast aluminum construction.

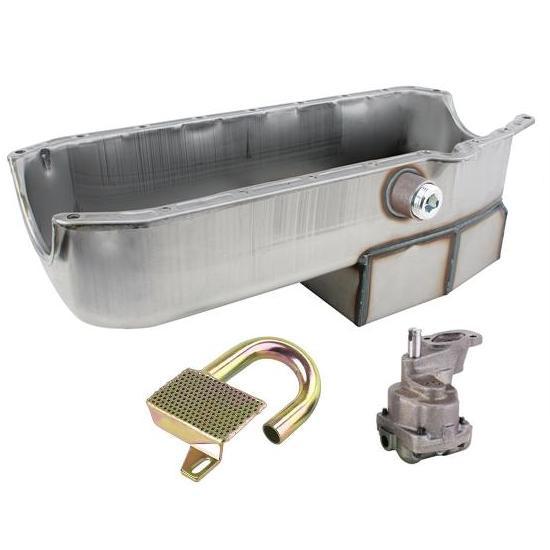

Save money with our Claimer Pan Combos! For Small Block Chevy 1955-79 (driver side dipstick). Meets 2011 IMCA rules. Will not fit rear steer cars unless the engine has been moved back. Works with stock or mini starters. Kits include: Claimer Oil Pan with 1" inspection plug (6 quart, 7-1/4" deep) Oil Pump Pickup, 5/8" diameter Stock Volume Pump (55-65 psi preset)
