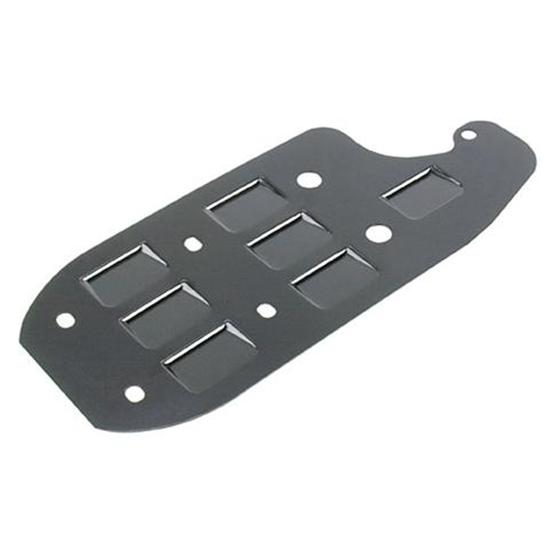

Small Block Chevy Louvered Windage Tray

SAME DAY SHIPPING! Most orders ship within 24 hours.

Small Block Chevy Louvered Windage Tray

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

For S/B Chevy. Provides drain-back path for oil thrown from crankshaft during normal bearing lubrication. Replica of early Corvette windage tray.

Customer Reviews

Rated 4.7 out of 5 by 3 reviewers.
RATING BREAKDOWN
3 reviews
5 Stars
2
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

REDRAT
Verified Purchaser
Idaho, USA

Excelent value.

October 02, 2014
I have used several of these. It dose the job it was designed for , without the price tag of other units. An excellent buy for anyone.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

primo
Verified Purchaser
San Lorenzo- Hayward,California

The tray was a perfect fit.No issues

June 04, 2012
I installed the tray in a mildly built 327,bored .20 over,242-262 cam,ported 882 iron heads,performance built Edel.650 on a Weiand street,med riser intake.I have had it on the street for 1700 miles since I finished it and I need to work out a few more small issuses.I resently drove it 350 miles without a single hickup.Got 21+ mpg.I will recomened the tray in every build I do for all my engines. The engine is in my 69 Malibu,TH350performance built,with 323 limited slip 10 bolt.Just a driver
Pros:
  • Improves Engine Efficiency
  • Lightweight
  • Durable
  • Increases Power
  • Cleared crankfirst try
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Bob
Verified Purchaser
Portland, Oregon

Good quality piece

January 15, 2011
Grinding required to work with polished aluminum pan
Pros:
  • Nice piece
  • Good Fit
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

2 questions : 2 answers

1 answers

do i need special bolts and or other hardware to install this? Camaro dirt car

toodamnold
January 31, 2015

do i need special bolts and or other hardware to install this? Camaro dirt car

Answers

February 02, 2015
Tech
Yes we offer stud kit 91015090
1 answers

Main Journal Size Does this windage tray fit the small or medium journal main bearing blocks?

InglisSpeed
January 16, 2015

Main Journal Size Does this windage tray fit the small or medium journal main bearing blocks?

Answers

January 16, 2015
EricM
This windage tray is for large journal applications. It will fit both 350 and 400 blocks due to the sloted holes for the main cap studs. I believe that the small journal blocks had the same bolt spacing as a large journal (350) block but you may want to research that. At any rate it would be extremely easy to slot the holes just a little more even if it's not made to fit your small journal engine.
Page 1 of 1

You may also be interested in:

Small Block Chevy Windage Tray, Stainless Steel
(Part #91015101)


Screen style oil windage tray for S/B Chevy engines using a stock style pan with rear sump. Ready to install. Fits 2 or 4 bolt main blocks.

Fit the standard "medium" journal blocks which would be typical late 302, 305, 307, 327 and 350 blocks.



Small Block Chevy Aluminum Windage Tray
(Part #91015102)


Bolt-in replacement, louvered windage tray for S/B Chevy champ style pan. Add horsepower and lower oil temperatures.

Works great with pan 91015108 when replacing the steel plate bolted to the bottom of the pan.

Fits in pan 91015137 but there is no way to attach the tray. Will need to come up with a way to mount it in the pan.

Fits with pan 91015106 but it doesn't fit the existing bolt pattern and would require a new way to mount as well as removing the studs in the pan.

Note: Not applicable to # 91015104 champ style pan.

Speedway Small Block Chevy Main Cap Studs, Set of 5
(Part #91015090)
                        Stock extended style main cap studs. Used to mount windage trays. Small Block Chevy. Set of 5.

Small Block Chevy Main Cap Baffle
(Part #54523000)
                        Keeps sump oil from reaching crankshaft. Mounts between pump and main cap. Requires trimming.

Speedway Small Block Chevy Crankshaft Wiper
(Part #54525800)


Removes excess oil from the crankshaft to improve top end horsepower and reduce windage. Fits Small Block Chevy. Mounts to the starter side of the block.

Slight trimming may be required. For best results, trim to within .045" of the rods and counterweights.
