Small Block Chevy Inboard Drive Kits, Alternator

Price:$369.99
SBC INBOARD DRIVE KIT (ALTERNATOR ONLY)
Price:
$369.99
KT
In Stock
Item #:
91067306
Open Kit Components
- Selection of individual components may be necessary for kit purchase.
Kit Components
SBC INBOARD ALTERNATOR BRACKET ONLY
Item #:
91667936
1
Aluminum Upper Pulley for S/B Chevy '55-'68 Short Pump
Item #:
91015471
Item Details:
Single Groove, 6-5/8" Diameter
1
  Show Specifications
  • 91015471
    Overall Length
    3.000"
    Inside Diameter
    0.630"
    Outside Diameter
    6.600"
    Groove Count
    1
    Belt Width
    0.380"
    Belt Type
    V-Belt
    Material Type
    Aluminum
    Finish
    Natural
    Sold in Quantity
    Each
    Notes
    Center hole can be drilled to .75" if needed.
Aluminum Lower Pulley for S/B Chevy '55-'68 Short Pump
Item #:
91015473
Item Details:
Single Groove, 6-5/8" Diameter
1
  Show Specifications
  • 91015473
    Inside Diameter
    1.098"
    Outside Diameter
    6.600"
    Groove Count
    1
    Belt Width
    0.312" (5/16")
    Belt Type
    V-Belt
    Material Type
    Aluminum
    Finish
    Natural
    Sold in Quantity
    Each
    Notes
    This pulley has no offset. It fits flat against the balancer edge of the pulley.
GM Chrome Remanufactured Alternator, One Wire, 60 Amp
Item #:
91067154
1
  Show Specifications
  • 91067154
    Belt Type
    V-Belt
    Belt Width
    0.375" (3/8")
    One Wire Alternator
    Yes
    Amperage
    60
    Material Type
    Steel
    Finish
    Chrome
    Sold in Quantity
    Each
Water Pump Pulley Shim Kit
Item #:
54564035
Item Details:
(2) 1/16" shims, (1) 1/8" shim
1
Aluminum Lower Pulley Spacer, .090" Thick
Item #:
91015721
1
SHORT WATER PUMP BOLT KIT, STAINLESS STEEL
Item #:
91303824
1
POLISHED RIBBED ALUMINUM WATER PUMP
Item #:
91015565
1
  Show Specifications
  • 91015565
    Outlet Size
    1.710"
    Shaft Diameter
    0.630"
    Shaft Length
    0.610"
    Gasket(s) Included
    Yes
    Hardware Included
    No
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
    Notes
    Backside clearance is 1.70"
S.S. LOWER PULLEY BOLT KIT
Item #:
91015486
Thread: Fine
1
S.S. Upper Pulley Bolts
Item #:
91015487
1
662061 - Endura Pipe Plugs - 1/2" NPT
Item #:
61766206
2
S.S. LOWER PULLEY BOLT KIT
Item #:
91015486
Thread: Coarse
1
Belt - Inboard Alt
Item #:
9107485
1
  Show Specifications
  • 9107485
    Belt Type
    V-Belt
    Belt Length
    49.180"
    Belt Width
    0.410"
    Sold in Quantity
    Each
    MFG. Part #
    7485

(1 Rating)
Click image to enlarge Click image to enlarge
No video at this time.

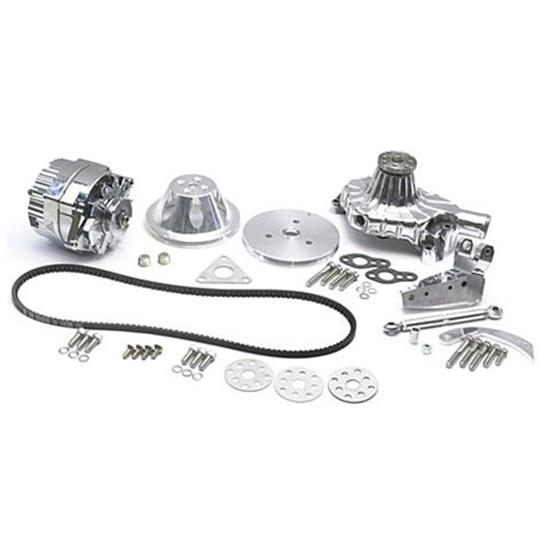

We all know what a pain it is to come up with a pulley, bracket, and belt combination to work on your small block Chevy engine. We have pre-engineered our package to include the nuts, bolts, polished billet aluminum brackets and belts to make this a simple installation. Each kit also includes a new short style aluminum water pump, aluminum pulleys, one wire chrome alternator and if chosen, a chrome A/C compressor.

Inboard (high) mount brackets for early cars.

Alternator only kits include single groove pulleys.

Note: S/B Chevy, short style water pump only.
