Small Block Chevy Harmonic Balancer, 6-3/4 Inch, Black

SAME DAY SHIPPING! Order within the next 12 hours 46 minutes and receive same day shipping

Specs
Material Type:
Steel
Weight:
8.50
Sold in Quantity:
Each
Overall Thickness:
2.31
Finish:
Painted
Inside Diameter:
1.20
Outside Diameter:
6.75
SFI Rated:
No
Thickness:
1.1875
Garage Sale:
No
Notes
Not recommended for RPM's in excess of 6500.
Small Block Chevy Harmonic Balancer, 6-3/4 Inch, Black

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Small block Chevy stock-type replacement 6-3/4" diameter harmonic balancer. For internal balance engines.

  • NOT recommended for RPM's in excess of 6500
  • NOT SFI certified
  • Internal balance

Application

  • Chevrolet Small Block 262-350 c.i. V-8 (1955-1995, except LT & LS 5.7L)
  • Chevrolet 348-409 W-blocks

Item Details

Not SFI Certified

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

jt
south dakota
Product Rating

i would buy this again

March 15, 2010
has multiple timing marks and additional marks for setting valves
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 3 answers

Where is the TDC mark? I understand that Chevy balancers changed the location a couple times, depending on year (pre-/post 1969).

1 answers
RonNova
Alabama
December 30, 2014

Where is the TDC mark? I understand that Chevy balancers changed the location a couple times, depending on year (pre-/post 1969).

Answers

December 30, 2014
EricM

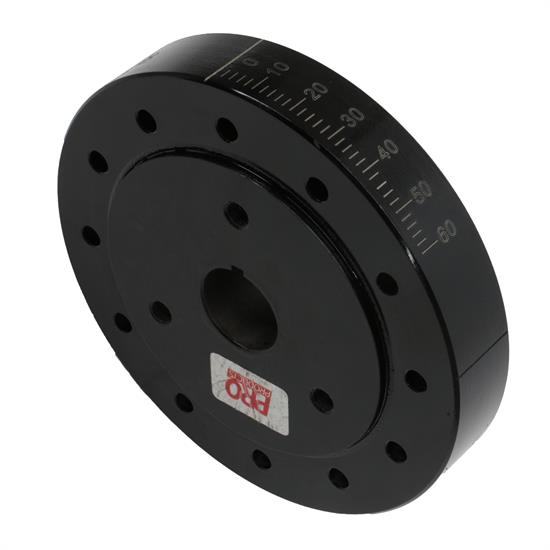

As you can see in the picture the TDC mark is just slightly offset from the crank keyway. I believe this is the pre-1969 location but you will want to compare that location to yours. We highly recommend checking your true top dead center location after installing any balance to make sure your timing pointer is correct. It is very common for balancers to vary a few degrees.

What single groove crankshaft pulley will match this balancer to my short water pump? I need a part recommendation for a single groove crank pulley that is compatible with the short water pump on the 350 SBC. The old damaged pulley is approximately 6 and 9/16" in diameter and 1.7" in depth. The depth does not appear to be a standard for either a short or a long water pump. Is there a Speedway part no.? Please advise.

1 answers
Macxmjm
North Carolina, USA
October 06, 2014

What single groove crankshaft pulley will match this balancer to my short water pump? I need a part recommendation for a single groove crank pulley that is compatible with the short water pump on the 350 SBC. The old damaged pulley is approximately 6 and 9/16" in diameter and 1.7" in depth. The depth does not appear to be a standard for either a short or a long water pump. Is there a Speedway part no.? Please advise.

Answers

October 08, 2014
EricM
We offer a single groove pulley for standard short water pumps which is part number 91015422 and it is 1.35" depth. If your 1975 engine has the stock water pump and pulleys then it is more than likely a Corvette engine. The Corvette in that era had an odd length water pump that was just a little longer than the standard "short water pump" for a small block Chevy. You will need to get the specific replacement for it in order to keep belt alignment correct. A Corvette restoration company may be your best bet for finding a replacement pulley.

What is total weight and what is thickness? looking for 6.75 diameter for my e mod motor lightest available but it must be 6.75 minimum diameter for SBC internal alance

1 answers
TECHMAN
Florida, USA
December 04, 2013

What is total weight and what is thickness? looking for 6.75 diameter for my e mod motor lightest available but it must be 6.75 minimum diameter for SBC internal alance

Answers

December 05, 2013
EricM
This is a stock replacement 6.75" balancer. The weight of it will be nearly identical to stock. I list it as approximately 8.5 lbs.
