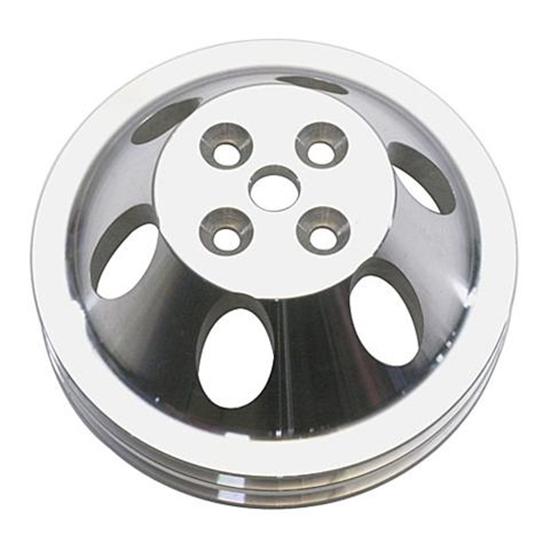

Small Block Chevy Aluminum Double Upper Pulley, Short Pump

SAME DAY SHIPPING! Order within the next 5 hours 27 minutes and receive same day shipping

Specs
Material Type:
Aluminum
Overall Length:
3.00
Sold in Quantity:
Each
Finish:
Natural
Shaft Diameter:
.63
Outside Diameter:
6.60
Belt Type:
V-Belt
Mounted Length:
2.71
Bolt Hole Pattern:
4 on 1.75
Belt Width:
.38
Groove Count:
2
Garage Sale:
No
Notes
Mounted length is from the face of the water pump pulley mount towards the front of the engine. 5/8" center hole can be drilled out to 3/4" if needed. .30" thick at the hub mounting flange.
Small Block Chevy Aluminum Double Upper Pulley, Short Pump

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Cast aluminum double groove V-belt pulley for 55-68 Small Block Chevy short style water pumps. Fits over 5/8" water pump snout, but can be drilled out to 3/4" if needed.
  • Precision machined aluminum construction
  • Lightweight and strong
  • Double grooves for two V-belts

Get the correct pulleys for your application by learning which water pump you have as explained in our tech article. SBC - Short vs Long Water Pump

Item Details

Double Groove, 6-5/8" Diameter

Notes

  1. It may be necessary to shim either or both of the pulleys to achieve perfect belt alignment. There are variances between manufacturers of both water pumps and pulleys.
  2. Water Pump ID Chart (GIF)
