Single Remote Oil Filter Bracket, Ford Filter

SAME DAY SHIPPING!

Specs
Material Type:
Aluminum
Sold in Quantity:
Each
Finish:
Thread Pitch:
3/4"-16
Inlet fitting:
1/2" NPT
Outlet Fitting:
1/2" NPT
Mounting Thread Material:
Steel
Notes
For use with Ford filters. Mounting flange measures 2-3/4" x 1-1/4".

Share by Email

From
To

Click image to enlarge

X

Details

Reviews

Q & A

What's in the Box

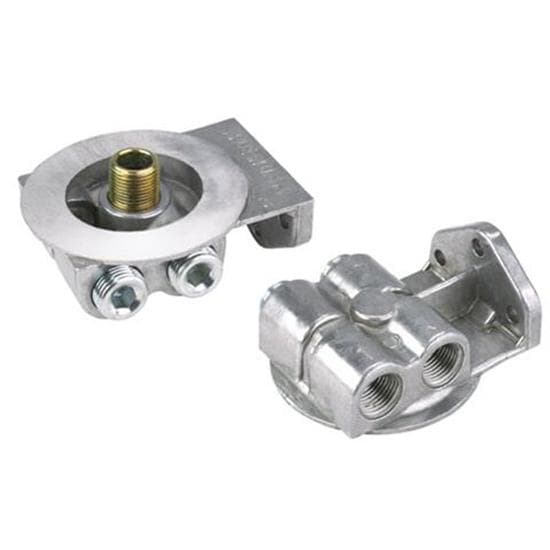

Aluminum remote oil filter bracket with horizontal hose inlet/outlet. Has 1/2" NPT female hose inlet/outlet threads. This oil filter relocator accepts Ford filters with 3/4"-16 threads. Use AC Delco PF2 or Fram HP1 filters.

Three items are needed for a remote oil filter assembly:

  1. Choose a remote oil filter bracket.
  2. Choose a remote bypass adapter to replace your oil filter.
  3. Choose a hose kit to connect the bypass adapter and oil filter bracket.

Item Details

Accepts 3/4"-16 Ford spin-on oil filter
