Single 14 Inch Fan Shroud Combo, 15 W x 18 H

SAME DAY SHIPPING! Order within the next 8 hours 46 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Material Type:
Aluminum
Sold in Quantity:
Each
Reversable:
No
Blade Count:
10
Cooling Fan:
Single
Rotation:
Counterclockwise
Blade Material:
Plastic
Cooling Fan Operation:
Pull
CFM:
1280
Cooling Fan Type:
Electric
Overall Height:
15.25
Overall Width:
19.68
Depth:
5.13
Material Thickness:
.06
Fan Diameter:
14.00
Voltage:
12.00

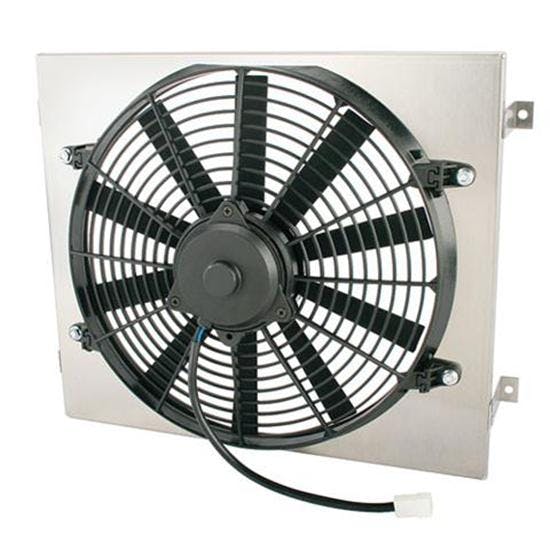

Single 14 Inch Fan Shroud Combo, 15 W x 18 H

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

These universal fit single fan/aluminum shroud assemblies fit many applications. Features heavy duty SPAL fans.

Radiator/Shroud Style Guide (GIF)

  • Total Height:  18"
  • Total Length:  15-1/4"
  • Total Depth:  3-1/8"
  • Total CFM:  1274
  • Total Amp Draw:  9.9

 917-4008 Diagram (PDF)

Note: Applications are for reference only and you need to measure your existing radiator for proper dimensions.

Learn more about the importance of using a fan and shroud with our radiators by reading our tech article. Radiator Cooling Performance.

Item Details

Style E & F Electric Fan & Shroud Only

Notes

*Relay and fan control sold seperately.

Customer Reviews

This product has no reviews.

Product Q&A

3 questions : 3 answers

1 answers

Does this fan and shroud mount to the front or rear of the radiator? Thanks,

Scottsssss
Kansas
May 07, 2013

Does this fan and shroud mount to the front or rear of the radiator? Thanks,

Answers

May 08, 2013
Jason
This single 14" fan is a pull type fan, it mounts to engine side of radiator
1 answers

may i take off the fan on my motor? does the fan work by itself, no need for the fan on the motor/ water pump?

blazee
tacoma
April 18, 2013

may i take off the fan on my motor? does the fan work by itself, no need for the fan on the motor/ water pump?

Answers

April 18, 2013
Jason
Yes, when using a electric fan you do not need the use of stock fan.
1 answers

what do you need to hook this fan up to operate properly

grayghost
ohio
July 13, 2011

what do you need to hook this fan up to operate properly

Answers

July 15, 2011
Ken
This item will need a switch or sensor to activate it (perhaps our 910-64014) which should be protected by a relay (such as 910-64044). You could get a temperature switch and relay combination in our 910-64028. We even offer a fan controller that works off your existing temperature gauge sender. That is part number 910-64023. So you see we have several paths to choose from, simple to trick. There are instructions with each of these sensors to guide you in their installation and hookup. Mounting the fan and shroud is somewhat self explanatory, but we can offer you suggestions for that as well if you cannot devise a method of your own.
