Shotgun Bill Big Block Chevy Tunnel Ram Kit

SAME DAY SHIPPING! Order within the next 9 hours 24 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Material Type:
Aluminum
Sold in Quantity:
Kit
Finish:
Natural
CFM:
600
Choke Type:
Manual
Fuel Type:
Gasoline
Carburetor Barrels:
4
Fuel Inlet Type:
Single
Intake Manifold Type:
Tunnel Ram
Carburetor Quantity:
Two
Carburetor Flange Type:
4-Barrel Square Bore
Carburetor Finish:
Natural
Secondary Type:
Air Valve
Gasket(s) Included:
Yes
Port Height:
1.89
Port Width:
1.56
Mounted Height:
10.63

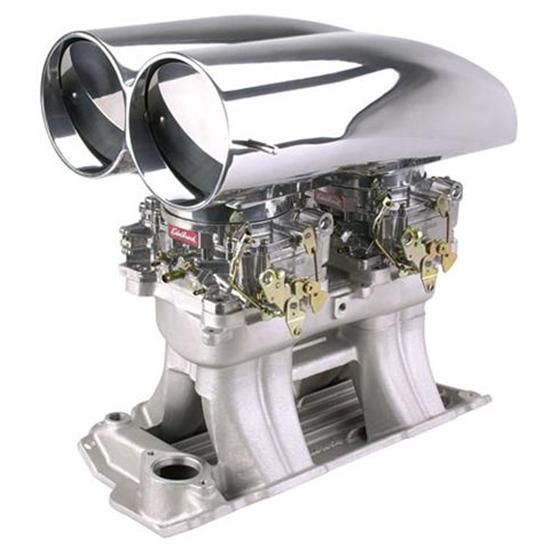

Shotgun Bill Big Block Chevy Tunnel Ram Kit

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

This complete Shotgun Bill Street Tunnel Ram Kit features the  Edelbrock 2-O unpolished manifold designed for use on 396-502 c.i.d. big-block Chevy V8s with large oval-port heads (1975 and earlier). Ideal for lightweight applications such as T-buckets or pro-street cars where low-end torque is not a prime factor. Especially suited to engines using slightly modified or aftermarket cylinder heads (9.5:1 or more compression is advised). Optimum power range is 3500-7500 rpm.

Includes: unpolished 7115 manifold, two 600 cfm manual choke 1405 Edelbrock Perfromer carburetors, polished Shotgun Bill scoop with filters and linkage. Not for the faint of heart!

Item Details

B/B Chevy Oval Port

Notes

  1. Top has vacuum outlet for power brakes.
  2. H.E.I. ignition will not clear manifold.
  3. Intake manifold will not accept stock EGR (Exhaust Gas Recirculation) equipment.

Specs

  • Port exit dimensions:  1.56" x 1.89"
  • Manifold Height:  10.63"
  • Air Scoop is 20-1/2" long, 11-1/4" wide, 6" tall
  • 5-1/4" diameter air scoop intakes

Customer Reviews

This product has no reviews.

Product Q&A

2 questions : 2 answers

1 answers

Does this include the Part Number 1351990 caarburetor and scoop linkage?

RocketscientistHSV
October 17, 2014

Does this include the Part Number 1351990 caarburetor and scoop linkage?

Answers

October 20, 2014
EricM
We apologize, but part number 1351990 is sold separately, and not included in the Shotgun Bill tunnel ram kits.
1 answers

Would this work on a 632ci stroker?

Fluff
Gillette, wy
December 18, 2015

Would this work on a 632ci stroker?

Answers

December 21, 2015
Eric
Expert
This intake is made for a standard deck height big block Chevy engine. You will need to verify the deck height on your 632 engine to be sure this will fit.
