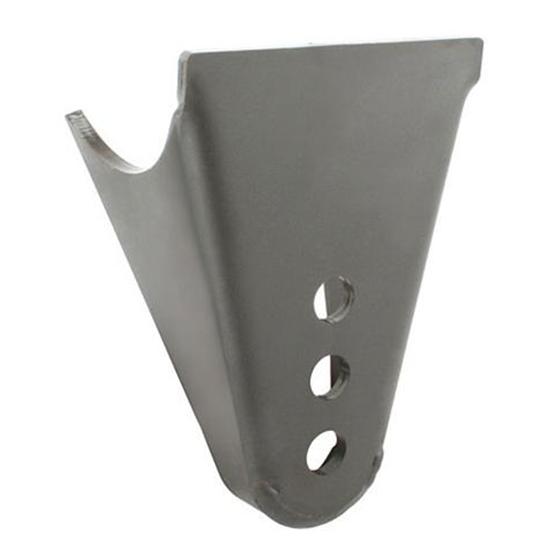

91636100Overall Length2.914"Overall Width3.750" (3 3/4")Overall Height5.450"Overall Thickness0.200"Hole Diameter0.500" (1/2")Sold in QuantityEachNotesAdjustable 3" - 5" below axle centerline.
Rear shock mounting bolt has a 1/2" stud and a5/8" shank. The under head length on this bolt is 2.75", and 1.5" of that is threaded.
Shock mounting stud is approximately 3-5/8" in overall length. The part where the shock rides, is 5/8" O.D. and approximately 1-1/4" wide and the threads at the shock end are 7/16"-20, about 7/8" long. The threads at the bracket end are 1/2"-20, about 1-1/8" long.
Speedway sells the ONLY fully engineered shock mount. The 5/8" forged button head bolt looks good whileoffering maximum support. The 1-3/4" x 1-3/4" billet aluminum support spacer has internal threads. This allows you to properly supportthis shock without crushing the bushing like others do, which leads to shock failures. There's a reason major chassis builders use this mount.

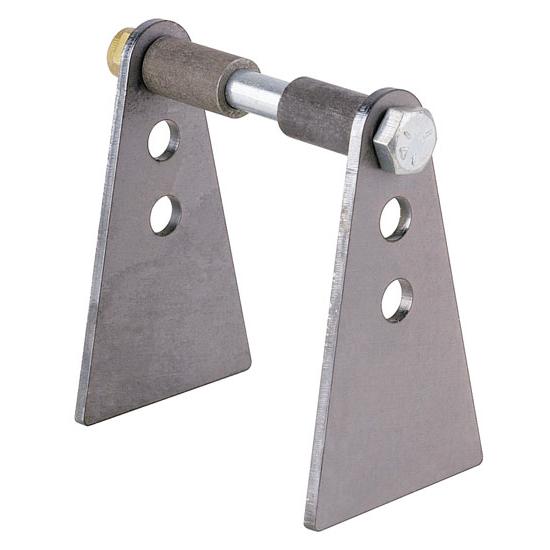

This damper shocks mount welds on top of rear end housing.
This plate allows you to use the shackle as a shock mount. Normally used on spring-behind axles with tube or friction shocks. Choose plain, polished stainless steel, or chrome. Shock hole is 3/8" I.D.
Universal weld-on shock mount for bearing end shocks (spherical bearing orheim). Has a1/2" hole and measures 2" L x 2" W x 1.5" H.
These are the headlight and shock mounts we designed for our T-buckets. They were designed to be welded to the outside edge of the frame rail and include a set of 1-3/4" leaf spring shackles that have an extended stud for lower shock mounting.
These tie bar shock mount kits will convert your bearing end shocks to a bar mount. For all AFCO shocks except K-Series.
Includes 2 replacement perch bolts and 2 bolt-on frame brackets. No welding or cutting necessary. Typically used with stock or "split" wishbones. Works well wtih shock 582SM500 (or equivalent).

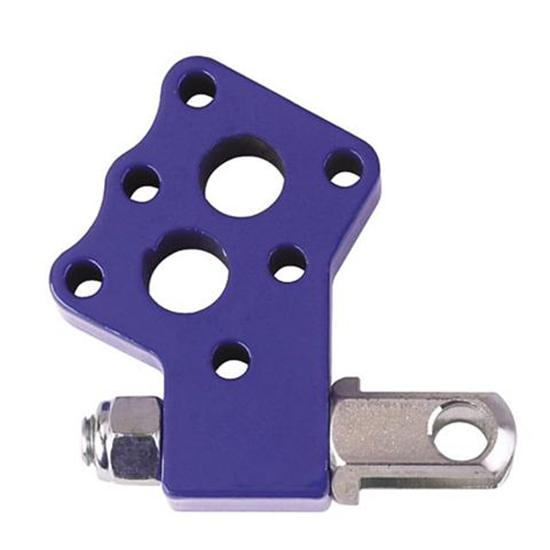

This 90 degree shock mount attaches to steel birdcages. It allows movement of the shock eye while keeping the shock eye from breaking off.
This aluminum shock mount fits our billet birdcages. Turns the shocks end parallel and prevents breaking off the shock. This assembly features a 6.0" and 7.0" shock drop. The mounting bolt center for link mounting is 1.75". Mounting holes are 4 on top and 4 below with 1.00" center to center measurements.
Keep your spare race shocks organized, clean and easily accessible with one of these simple shock racks. Precision-machined aluminum stems use O-rings to hold each shock in place, while powdercoated mounting straps are easy to hang in your trailer or shop.
Choose titanium or aluminum.4" overall length and 1/2"-20 thread
This aluminum shock bolt shock kit saves time, headaches and weight. Two mounting styles are available for Sprint Cars, Midgets, Micro's and Mini's.
Titanium bolts reduce unsprung weight which makes your suspension react quicker.
This deluxe birdcage features three 5/8" lower arm holes, five 5/8" upper arm mount holes and nylon sleeves and seals. Designed for 5/8" heims but can be converted to 3/4" if spacer kit is used.
AFCO 2-1/2 Inch Shock Mount Hairpin
This simple birdcage has two upper and lower 5/8" arm mounting holes. For 3" tube axles. Works with shocks.
Choose from titanium or aluminum.
91636502Outside Diameter1.370"Overall Thickness0.750" (3/4")Top of Taper0.520"Bottom of Taper0.600"Degree of Taper7 degreeMaterial TypeSteelFinishBlack OxideSold in QuantityEachNotesThis is intended only to be used w/ the monroe shock tie rod mounts or stud kit 535AK35. If Ford tie rod ends are considered, use 91636503 (triangular).
These coil/shocks lower link mounts locate strut tube to rear end housing.Mounts shock and slider assembly.Fits 3" axle tube. Weld-on style.
These upper rear shock brackets mount coil over shocks to your frame or crossmember. Perfect for use with Model A frames. Mount is set up for a 5/8" bolt.
After more than fifty years of use, the original upper shock mounts on the front of your vintage Ford pickup are likely worn out, damaged or missing.These forged steel upper shock mounts are reproductions of those used on 1948-1952 Ford F1 trucks, but are also adaptable to other beam-axle trucks from the 1940's and 1950's.
These stainless steel upper front shock mounts measure 4" from the top bolt hole to the centerline of the stud. Mounting bolts are spaced at 2-5/16" on center.Shocks bushing and stainless steel hardware is included.
AFCO Steel Body Stock Mount Shocks for GM Full Size & Mid Size
AFCO Steel Body Stock Mount Shocks for '68-'79 Chevy Nova
AFCO Steel Body Stock Mount Shocks for Mercury Monetego & Cougar.
Fits:
This 18 piece titanium through bolt shock kit saves time, headaches and weight. Set includes 8 bolts and 10 nuts. For Sprint Cars, Midgets, Micros and Minis.
These headlight and shock mounts were designed for our T-buckets, but they can be used for a variety of projects. Can be easily bolted onto the outside edge of your frame rail. Mounts have 1/2" holes for Dietz style or other headlightsHas two different 1/2" hole locations for upper shock mountingMeasures 6" from the upper shock mount hole to the top of the frame rail

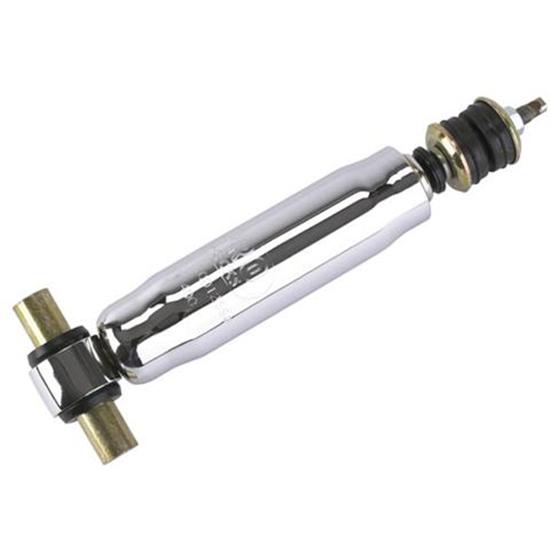

Stock mount style, modern gas cell shock. Fits where your original Mustang II shock went. Lower mount accepts a 7/16" bolt. Has a 10" ride height.
Bolt-on for early frames, heliarc welded steel. Perfect for shocks! 5" tall, 12" I.D. shock boss. Sold as a pair.
These are the headlight and shock mounts we designed for our T-buckets. They were designed to be welded to the outside edge of the frame rail.
Weld-on shock mount for bearing end shocks (spherical bearing orheim). Has a1/2" hole. Use short pin in place of shock bolt on this bracket.
Weld-on shock mount for bearing end shocks (spherical bearing orheim). Has a1/2" hole. For rectangular tube lower control arms.
Weld-on shock mount for bearing end shocks (spherical bearing orheim). Has a1/2" hole. Mount to your tubular lower control arm.
