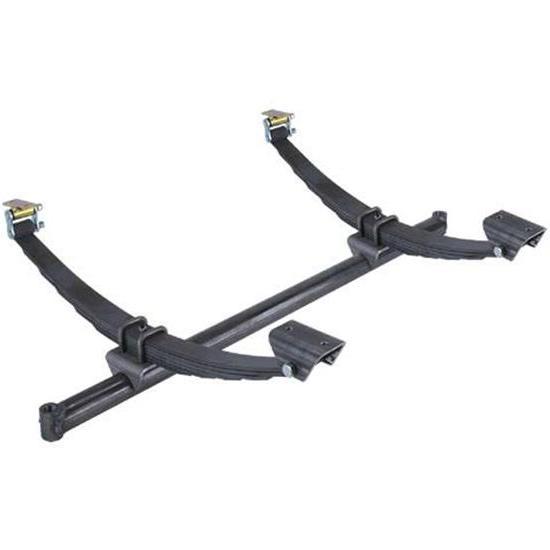

If you are looking for that "up in the front" gasser look or just need a straight axle, we've got your deal! We can supply you a complete semi-elliptical straight axle front end kit with springs and hardware. For 1937-41 Ford style spindles.

Gasser Build Info (PDF)

Plain steel, universal application, professionally engineered. The spring pads are adjustable on the axle for different frame widths (welding required). Choose axle length from kingpin to kingpin, or order a custom length.

Kit includes:

  • tube axle w/ welded ends (0.250" wall tubing)
  • two axle pads and U-bolts
  • two 1-3/4" spring shackles w/ nylon bushings
  • two frame mounting brackets
  • two 32" six-leaf springs
  • all hardware
916-3903 Instructions (PDF)

Notes

Tie Rod Length Needed (using flat plate steering arms):

  • 44" Axle - 43" eye-to-eye link
  • 46" Axle - 45" eye-to-eye link
  • 48" Axle - 47" eye-to-eye link
  • 50" Axle - 49" eye-to-eye link

Specs

  • Spring Arch:  4-3/4"
  • Total Leaves:  6 (each 1/4" thick)
  • Spring Rate:  400 lbs/inch
  • Axle Tube:  2.00" O.D.

Item Details

For custom width axle, specify length in comments section of shopping cart at checkout.

Customer Reviews

This product has no reviews.

Product Q&A

5 questions : 5 answers

1 answers

Can i order this kit with a custom axle width ?

Topolino
July 01, 2013

Can i order this kit with a custom axle width ?

Answers

July 01, 2013
Jason
Yes, Speedway does offer the semi-elliptical axle kit with a custom axle. There is a upcharge for custom axle
1 answers

i have a 1950 ford f-1 pickup. will my spindles and king pins work with this axel?

cj
nicholson,ga.
January 21, 2011

i have a 1950 ford f-1 pickup. will my spindles and king pins work with this axel?

Answers

January 24, 2011
Waymon
Yes, the 1928-1948 FORD CAR STRAIGHT AXLE KIT, Item #: 91639035, will work on your 1950 Ford F-1 spindles.
1 answers

I was wondering if it is possible to buy the springs separately from the kit, I have an axle, just need the springs. thanks

Aaron
Tucson, AZ
September 30, 2011

I was wondering if it is possible to buy the springs separately from the kit, I have an axle, just need the springs. thanks

Answers

October 03, 2011
Jason
Yes, the springs are part number 91033029
1 answers

will this work on a 1964/1965 fairlaine and what leinght axle would i need

wayne
americus ga
September 14, 2011

will this work on a 1964/1965 fairlaine and what leinght axle would i need

Answers

September 15, 2011
Zach
Speedway part number 91639035. This gasser axle kit is made to be universal, meaning that you can adapt it into just about any vehicle. To give this axle a place to mount on your frame, you may need to modify the original frame rails or replace them with square tubing. The axle is available in pre made widths from 44 to 50 inches, and we also offer custom widths. Our steering and brake kits add about 8 1/4" of width from hub to hub. If you want the track width to be about the same as it is no, I would recommend you measure your current hub to hub width, subtract about 8 1/4" and that will be your axle width.
1 answers

any one use this on 65 ford mustang?

woody
battle creek, mi.
February 03, 2011

any one use this on 65 ford mustang?

Answers

February 08, 2011
Ken
We have had several customers install these kits on the early-‘60s Ford cars. Every one that I saw used a fabricated “frame stub” that extended forward from the base of the firewall and incorporated an angle brace that came down from the hood hinge area. These frame stubs were constructed by the individual car builders, of square and rectangular steel tubing. They would incorporate fabricated, steel sheet, engine bay side panels and a portion of the original Ford radiator support. It was a fair amount of work but if done well it made a very sturdy and attractive package. If you would like to discuss this further, please call us at 1-800-979-0122 and we can perhaps give you some further suggestions for your project.
