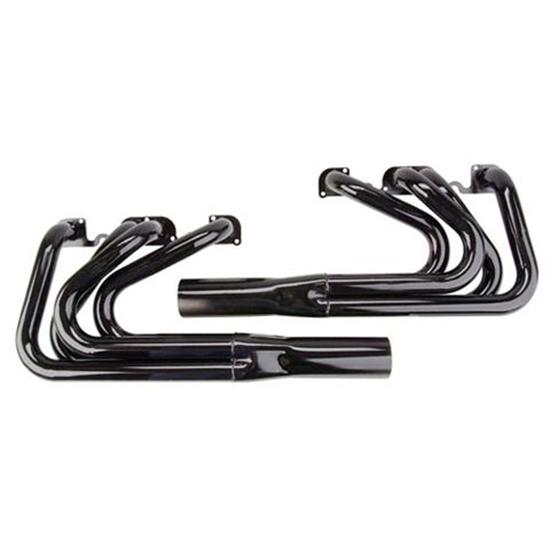

Schoenfeld Swept Forward Sprint Headers, 2 Inch, 3-1/2 Cltr, Spread Port

Price:$219.99
1026LDN - Schoenfeld Swept Forward Sprint Headers, 2" Spread Port
Price:
$219.99
PR
In Stock
Item #:
9171026LDN
Schoenfeld Swept Forward Sprint Headers, 2 Inch, 3-1/2 Cltr, Spread Port
Click image to enlarge Click image to enlarge
No video at this time.


Swept forward for muffler clearance. Fits Chevy, Brodix Spread Port and now all Pro Spread Port pattern heads. Laser cut flanges to clear down nozzles. Headers welded to clear 4" from head to inside tube. Approximately 32" 18 ga. primary tubes and 3-1/2" x 14" collectors, may be shortened. Bolts directly to your head and comes with bolts and gaskets.

Header Dimension Chart

  • 9171026LDN
    MFG. Part #
    1026LDN
    Tube O.D.
    2.000"
    Collector Diameter
    3.500" (3 1/2")
    Collector Length
    13.000"
    Flange Style
    Spread Port
    Flange Thickness
    0.250" (1/4")
    Port Height
    1.970"
    Port Width
    1.980"
    Drivers Side Dimension A
    9.950"
    Drivers Side Dimension B
    13.500" (13 1/2")
    Drivers Side Dimension C
    30.250" (30 1/4")
    Passenger Side Dimension A
    10.550"
    Passenger Side Dimension B
    13.300"
    Passenger Side Dimension C
    30.630"
    Hardware Included
    Yes
    Gasket(s) Included
    Yes
    Material Type
    Steel
    Finish
    Painted
    Sold in Quantity
    Pair
