Schoenfeld Swept Forward Sprint Headers, 1-3/4, 3-1/2 Cltr, Port

SAME DAY SHIPPING! Order within the next 11 hours 25 minutes and receive same day shipping

Specs
Material Type:
Steel
Sold in Quantity:
Pair
Finish:
Painted
Tube O.D.:
1.75
Port Height:
1.66
Port Width:
1.49
Flange Thickness:
.25
Flange Style:
Square Port
Collector Diameter :
3.50
Gasket(s) Included:
Yes
Hardware Included:
Yes
Drivers Side Dimension A:
9.63
Drivers Side Dimension B:
13.30
Drivers Side Dimension C:
30.75
Passenger Side Dimension A:
10.60
Passenger Side Dimension B:
13.35
Passenger Side Dimension C:
30.50
Collector Length:
13.25
MFG. Part #:
1024L
Garage Sale:
No
Header Tube Type:
Long Tube

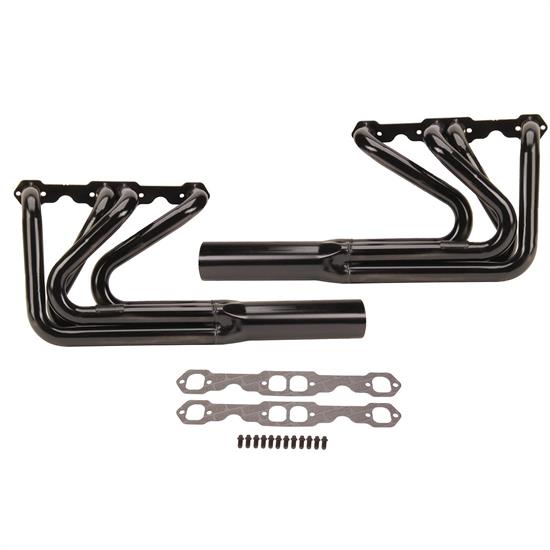

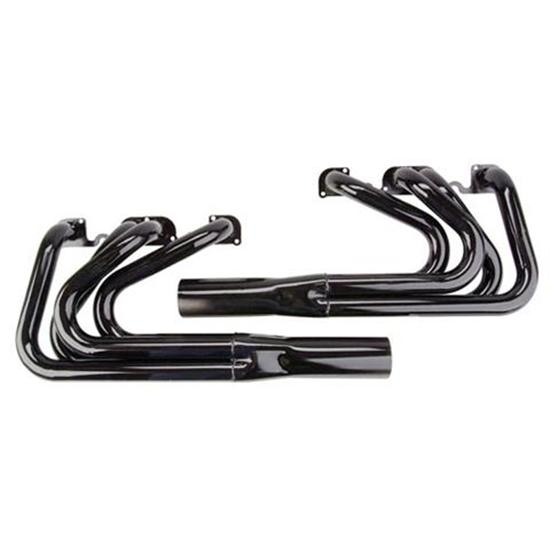

Schoenfeld Swept Forward Sprint Headers, 1-3/4, 3-1/2 Cltr, PortSchoenfeld Swept Forward Sprint Headers, 1-3/4, 3-1/2 Cltr, Port
Schoenfeld Swept Forward Sprint Headers, 1-3/4, 3-1/2 Cltr, Port

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

Swept forward for muffler clearance. Fits Chevy, Brodix Spread Port and now all Pro Spread Port pattern heads. Laser cut flanges to clear down nozzles. Headers welded to clear 4" from head to inside tube. Approximately 32" 18 ga. primary tubes and 3-1/2" x 14" collectors, may be shortened. Bolts directly to your head and comes with bolts and gaskets.

Header Dimension Chart
