Schoenfeld Straight Tube Sprint Car Headers-2 Inch-Spread Port

SAME DAY SHIPPING! Order within the next 6 hours 29 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Material Type:
Steel
Sold in Quantity:
Pair
Finish:
Painted
Flange Style:
Spread Port
Header Tube Type:
Long Tube
MFG. Part #:
1056LDN
Gasket(s) Included:
Yes
Hardware Included:
Yes
Garage Sale:
No
Tube O.D.:
2.00
Port Height:
1.96
Port Width:
2.00
Flange Thickness:
.25
Collector Diameter :
3.50
Drivers Side Dimension A:
9.80
Drivers Side Dimension B:
13.435
Drivers Side Dimension C:
39.75
Passenger Side Dimension A:
10.75
Passenger Side Dimension B:
13.25
Passenger Side Dimension C:
40.25
Collector Length:
12.75

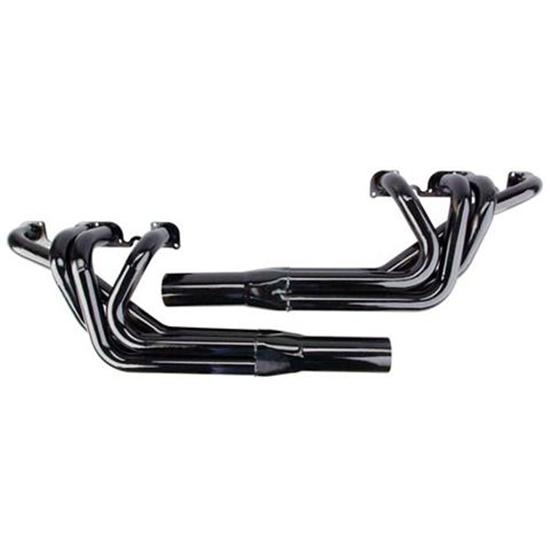

Schoenfeld Straight Tube Sprint Car Headers-2 Inch-Spread Port
Schoenfeld Straight Tube Sprint Car Headers-2 Inch-Spread Port
Schoenfeld Straight Tube Sprint Car Headers-2 Inch-Spread Port

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

Over 200 degrees of bends removed for increased flow and 8-10 hp increase. Fits standard Chevy, Brodix spread port and now all pro spread port pattern heads. Laser cut flanges to clear down nozzles. Headers welded to clear 4" from head to inside tube. Approximately 32" 18-gauge primary tubes and 3-1/2" collectors. Comes with bolts and gaskets.

Header Dimension Chart

Item Details

Spread Port

Customer Reviews

This product has no reviews.

Product Q&A

0 questions : 0 answers

No questions have been asked.
