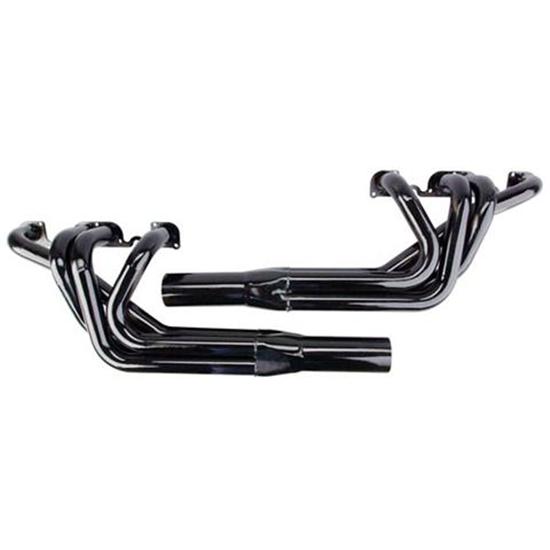

Schoenfeld Straight Tube Sprint Car Headers, 1-7/8 To 2, All Pro Head

Price:$269.99
1055LVAP - Straight Tube Sprint Car Header, 1-7/8" To 2"
Price:
$269.99
PR
In Stock
Item #:
9171055LVAP
Item Details:
All Pro Head
Schoenfeld Straight Tube Sprint Car Headers, 1-7/8 To 2, All Pro Head
Click image to enlarge Click image to enlarge
No video at this time.


Over 200 degrees of bends removed for increased flow and 8-10 hp increase. Fits standard Chevy, Brodix spread port and now all pro spread port pattern heads. Laser cut flanges to clear down nozzles. Headers welded to clear 4" from head to inside tube. Approximately 32" 18-gauge primary tubes and 3-1/2" collectors. Comes with bolts and gaskets.

Header Dimension Chart

  • 9171055LVAP
    MFG. Part #
    1055LVAP
    Tube O.D.
    1.880"
    Collector Diameter
    3.500" (3 1/2")
    Collector Length
    12.750" (12 3/4")
    Flange Style
    Spread Port
    Flange Thickness
    0.250" (1/4")
    Port Height
    1.750" (1 3/4")
    Port Width
    1.880"
    Drivers Side Dimension A
    10.100"
    Drivers Side Dimension B
    13.450"
    Drivers Side Dimension C
    40.250" (40 1/4")
    Passenger Side Dimension A
    10.000"
    Passenger Side Dimension B
    13.550"
    Passenger Side Dimension C
    40.250" (40 1/4")
    Hardware Included
    Yes
    Gasket(s) Included
    Yes
    Material Type
    Steel
    Finish
    Painted
    Sold in Quantity
    Pair
