Schoenfeld Straight Tube Sprint Car Headers, 1-3/4, Standard Chevy

SAME DAY SHIPPING! Order within the next 11 hours 31 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Material Type:
Steel
Sold in Quantity:
Pair
Finish:
Painted
Tube O.D.:
1.75
Port Height:
1.67
Port Width:
1.51
Flange Thickness:
.25
Flange Style:
Square Port
Collector Diameter :
3.50
Gasket(s) Included:
Yes
Hardware Included:
Yes
Drivers Side Dimension A:
9.40
Drivers Side Dimension B:
13.15
Drivers Side Dimension C:
40.75
Passenger Side Dimension A:
10.85
Passenger Side Dimension B:
13.15
Passenger Side Dimension C:
40.25
Collector Length:
13.25
MFG. Part #:
1054L
Garage Sale:
No
Header Tube Type:
Long Tube

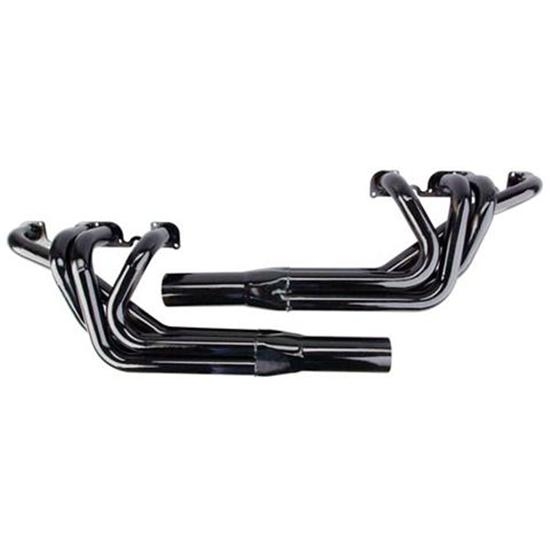

Schoenfeld Straight Tube Sprint Car Headers, 1-3/4, Standard Chevy
Schoenfeld Straight Tube Sprint Car Headers, 1-3/4, Standard Chevy
Schoenfeld Straight Tube Sprint Car Headers, 1-3/4, Standard Chevy

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

Over 200 degrees of bends removed for increased flow and 8-10 hp increase. Fits standard Chevy, Brodix spread port and now all pro spread port pattern heads. Laser cut flanges to clear down nozzles. Headers welded to clear 4" from head to inside tube. Approximately 32" 18-gauge primary tubes and 3-1/2" collectors. Comes with bolts and gaskets.

Header Dimension Chart

Customer Reviews

This product has no reviews.

Product Q&A

0 questions : 0 answers

No questions have been asked.
