Schoenfeld Std Sprint Car Headers, 1-7/8 To 2, 3-1/2 Cltr, Chevy

SAME DAY SHIPPING! Order within the next 11 hours 8 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Material Type:
Steel
Sold in Quantity:
Pair
Finish:
Painted
Tube O.D.:
1.88
Port Height:
1.75
Port Width:
1.42
Flange Thickness:
.25
Flange Style:
Rectangular Port
Collector Diameter :
3.50
Gasket(s) Included:
Yes
Hardware Included:
Yes
Drivers Side Dimension A:
10.20
Drivers Side Dimension B:
13.15
Drivers Side Dimension C:
32.50
Passenger Side Dimension A:
10.95
Passenger Side Dimension B:
13.25
Passenger Side Dimension C:
31.75
Collector Length:
8.25
MFG. Part #:
1015LV
Garage Sale:
No
Header Tube Type:
Long Tube

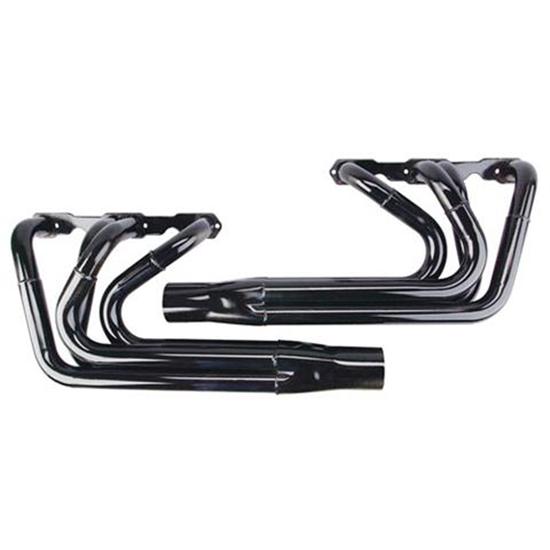

Schoenfeld Std Sprint Car Headers, 1-7/8 To 2, 3-1/2 Cltr, Chevy
Schoenfeld Std Sprint Car Headers, 1-7/8 To 2, 3-1/2 Cltr, Chevy
Schoenfeld Std Sprint Car Headers, 1-7/8 To 2, 3-1/2 Cltr, Chevy

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a set.

Details

Reviews

Q & A

What's in the Box

Track proven for S/B Chevy.  Extra thick flanges. Headers feature 3-1/2" from flange to bend and approximately 32" primary tubes. Bolt directly to aluminum standard port heads.

Complete with gaskets and bolts. Available with 1-3/4", 1-7/8", or 2" primary tubes.

Header Dimension Chart

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

will they fit g-body 78 monte carlo?

lynchmob
Hephzibah, GA, USA
August 04, 2014

will they fit g-body 78 monte carlo?

Answers

August 05, 2014
EricM
No these will not fit your 78 Monte Carlo. See part number 917186 or 91013186.
Page 1 of 1
