Schoenfeld Inc. Demo Derby Headers, 1-3/4 Primary, 3-1/2 In Collector

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Steel
Overall Height:
32.25
Sold in Quantity:
Pair
Finish:
Painted
Tube O.D.:
1.75
Port Height:
1.68
Port Width:
1.50
Flange Thickness:
.23
Flange Style:
D Port
Collector Diameter :
3.50
Header Dimension A:
5.00
Header Dimension B:
2.50
Header Dimension C:
18.25
Gasket(s) Included:
Yes
Hardware Included:
Yes
Collector Length:
7.75
MFG. Part #:
1514
Garage Sale:
No
Header Tube Type:
Zoomie

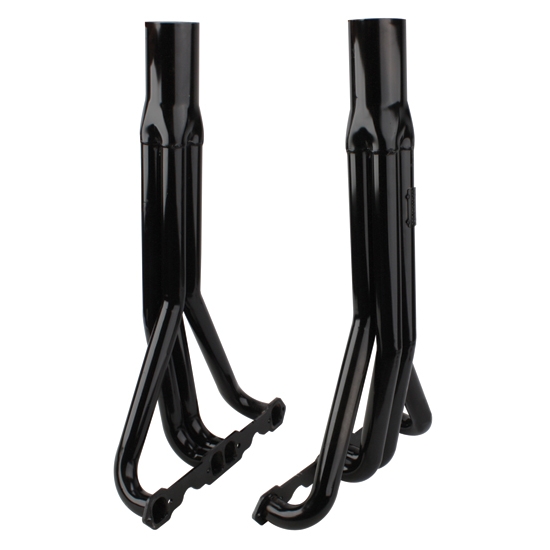

Schoenfeld Inc. Demo Derby Headers, 1-3/4 Primary, 3-1/2 In CollectorSchoenfeld Inc. Demo Derby Headers, 1-3/4 Primary, 3-1/2 In Collector
Schoenfeld Inc. Demo Derby Headers, 1-3/4 Primary, 3-1/2 In Collector

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

  • Fits Small Block Chevy
  • Standard Port
  • Bolts & gaskets included
  • High flow mandrel bent tubing

Header Dimension Chart
