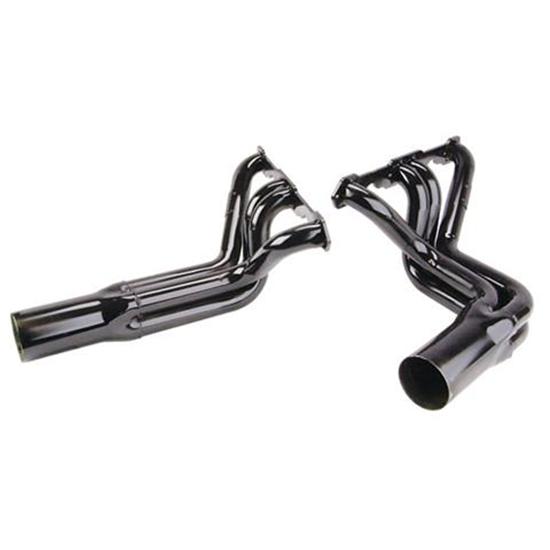

Schoenfeld IMCA Modified Headers - Fits Dirtworks and D&M Chassis

Price:$179.99
172 - Dirtworks S/B Chevy Adjustable IMCA Headers
Price:
$179.99
PR
In Stock
Item #:
917172
Item Details:
Not step design, 1-3/4" primary, 3-1/2" collector
Schoenfeld IMCA Modified Headers - Fits Dirtworks and D&M Chassis
Click image to enlarge Click image to enlarge
No video at this time.


Schoenfeld IMCA modified headers for DirtWorks, D&M, and other chassis. 1-3/4" tube with 3-1/2" collector. Not a step design. Non-adjustable.

Header Dimension Chart

  • 917172
    MFG. Part #
    172
    Tube O.D.
    1.750" (1 3/4")
    Collector Diameter
    3.500" (3 1/2")
    Collector Length
    7.750" (7 3/4")
    Flange Style
    Square Port
    Flange Thickness
    0.250" (1/4")
    Port Height
    1.700"
    Port Width
    1.500" (1 1/2")
    Drivers Side Dimension A
    22.750" (22 3/4")
    Drivers Side Dimension B
    9.500" (9 1/2")
    Drivers Side Dimension C
    18.250" (18 1/4")
    Passenger Side Dimension A
    15.000"
    Passenger Side Dimension B
    8.600"
    Passenger Side Dimension C
    24.130"
    Hardware Included
    Yes
    Gasket(s) Included
    Yes
    Material Type
    Steel
    Finish
    Painted
    Sold in Quantity
    Pair
