Small Block Chevy Clipster Headers, Stainless

SAME DAY SHIPPING! Order within the next 16 hours 8 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Sold in Quantity:
Pair
Finish:
Polished
Material Type:
Stainless Steel
Flange Style:
Round Port
Header Tube Type:
Mid-Length
Gasket(s) Included:
Yes
Hardware Included:
Yes
Garage Sale:
No
Overall Height:
16.00
Tube O.D.:
1.63
Port Height:
1.72
Port Width:
1.38
Flange Thickness:
.38
Collector Diameter :
3.00
Header Dimension A:
4.00
Header Dimension B:
16.00
Header Dimension C:
25.00
Drivers Side Dimension A:
6.13
Drivers Side Dimension B:
13.50
Drivers Side Dimension C:
23.00
Passenger Side Dimension A:
4.85
Passenger Side Dimension B:
11.30
Passenger Side Dimension C:
26.38
Collector Length:
5.00

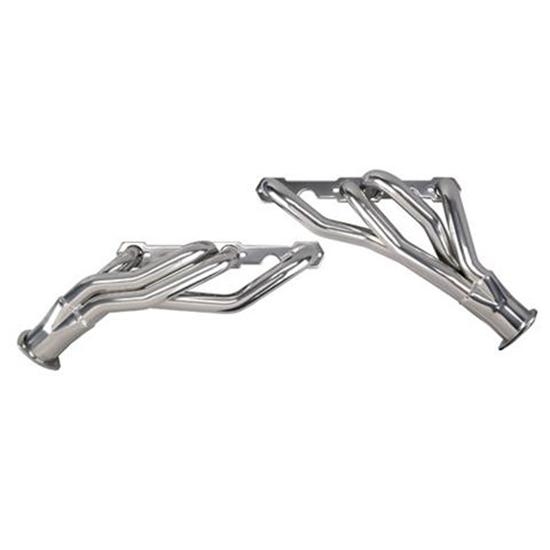

Small Block Chevy Clipster Headers, Stainless
Small Block Chevy Clipster Headers, Stainless
Small Block Chevy Clipster Headers, Stainless

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a set.

Details

Reviews

Q & A

What's in the Box

These S/B Chevy Clipster headers are for 1964-87 GM A*, F* and G-Body cars and fit many street rod applications with uni-body front clip suspensions. Clipster headers use longer primaries than Tight Tucks, yet shorter than full length headers. Collectors exit toward the rear of the engine compartment providing excellent ground clearance on "slammed" applications as well as clearing steering and suspension components.

1-5/8" primaries and 3" collectors. Fits straight or angle plug heads.

Header Sizing Chart (GIF)

 * See NOTES tab for chassis fittment details.

NOTE: Stainless header tubing when exposed to exhaust temperature will cause the finish to change color which will vary with the exhaust temperature. Please note that the finish of the header when the engine is started, will change to a light champagne color to a darker gold finish and in some instance may even turn dark blue or purple. This can be polished back out when utilizing Blue-away or Simi-chrome polish, but please note that when the headers reach running temperature again, they will immediately change color.

Application

Applications include, but not limited to:

  • 1967-1981 Camaro
  • 1964-1981 Chevelle, Malibu
  • 1964-1988 El Camino
  • 1968-1979 Nova
  • 1970-1988 Monte Carlo

Notes

  1. Works with angle plug heads.
  2. Will not work with D-port heads.
  3. May interfere with mechanical clutch linkage (substitute headers 930-0109).
  4. If fitting on an early A-Body, #5 primary tube may interfere with steering shaft. Some 'massaging' may be required.
  5. Will not fit with Saginaw Close Ratio 825 Steering Box.
  6. Does not fit 1967-69 Camaro with A/C.
  7. Will fit Detroit Speed & Engineering front subframes with rack and pinion steering.

Customer Reviews

Rated 4 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
0
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

JONESY70
Cincinnati, OH, USA

THESE FIT JUST RIGHT

September 03, 2013
THESE HEADERS ARE JUST WHAT THE DR ORDERED. THEY LOOK AND SOUND AWESOME ON MY 70 MONTE CARLO.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

2 questions : 2 answers

1 answers

Will these fit a 1979 chevy K10 with a 350 Would these headers fit a 1979 chevy K10 4 wheel drive with a 350.

Buzzard
Lanark County, ON, Canada
September 09, 2013

Will these fit a 1979 chevy K10 with a 350 Would these headers fit a 1979 chevy K10 4 wheel drive with a 350.

Answers

September 10, 2013
Jason
The small block chevy clipster headers are listed as fitting the following applications: * 1967-1981 Camaro * 1964-1981 Chevelle, Malibu * 1964-1988 El Camino * 1968-1979 Nova * 1970-1988 Monte Carlo. For possible fit to your application you would need to do some basic homework measuring in relation to the following chart. Tube O.D. : 1.63 " Collector Diameter : 3.00 " Collector Length : 5.00 " Flange Style : Round Port Flange Thickness : .38 " Port Height : 1.72 " Port Width : 1.38 " Drivers Side Dimension A : 6.13 " Drivers Side Dimension B : 13.50 " Drivers Side Dimension C : 23.00 " Passenger Side Dimension A : 4.85 " Passenger Side Dimension B : 11.30 " Passenger Side Dimension C : 26.38 "
1 answers

will they fit 82 camaro front clip on a 50 merc

Dlab
Norwalk ca.90650
December 17, 2012

will they fit 82 camaro front clip on a 50 merc

Answers

December 18, 2012
Jason
We offer the following information to help determine fit. Width of header at widest point from exhaust port - 4.0" Height of header from top of flange to lowest point - 16" Length of header from front of flange to collector - 25" THE MANUFACTURER OF THESE HEADERS SAYS: OK FOR ANGLE PLUG HEADS NOT FOR MANUAL TRANSMISSION (CLUTCH LINKAGE ISSUES)(USE 930-0109) GREAT GROUND CLEARANCE # Will not work with D-port heads. # May interfere with mechanical clutch # Will not fit with Saginaw Close Ratio 825 Steering Box. # Does not fit 1967-69 Camaro with A/C. # Will fit Detroit Speed & Engineering front subframes with rack and pinion steering
Page 1 of 1

You may also be interested in:

Small Block Chevy Clipster Headers, Black
(Part #9300108)


These S/B Chevy Clipster headers are for 1964-87 GM A*, F* and G-Body cars and fit many street rod applications with uni-body front clip suspensions. Clipster headers use longer primaries than Tight Tucks, yet shorter than full length headers. Collectors exit toward the rear of the engine compartment providing excellent ground clearance on "slammed" applications as well as clearing steering and suspension components.

1-5/8" primaries and 3" collectors. Fits straight or angle plug heads.

Header Sizing Chart (GIF)

WARNING: This header will require the use of Autolite 'short' style spark plugs OR NGK BR8ECM type plugs to be used for clearance purposes.  No other plugs or shorty plugs offered other than Autolite branded 'shorty' plugs will clear.

Small Block Chevy Clipster Headers, AHC Coated
(Part #9300108H)


These S/B Chevy Clipster headers are for 1964-87 GM A*, F* and G-Body cars and fit many street rod applications with uni-body front clip suspensions. Clipster headers use longer primaries than Tight Tucks, yet shorter than full length headers. Collectors exit toward the rear of the engine compartment providing excellent ground clearance on "slammed" applications as well as clearing steering and suspension components. These ceramic coated headers provide superior performance and durability.

1-5/8" primaries and 3" collectors. Fits straight or angle plug heads.

Header Sizing Chart (GIF)

 * See NOTES tab for chassis fittment details.

Small Block Chevy Clipster Headers, Chrome
(Part #9300108C)


These S/B Chevy Clipster headers are for 1964-87 GM A*, F* and G-Body cars and fit many street rod applications with uni-body front clip suspensions. Clipster headers use longer primaries than Tight Tucks, yet shorter than full length headers. Collectors exit toward the rear of the engine compartment providing excellent ground clearance on "slammed" applications as well as clearing steering and suspension components.

1-5/8" primaries and 3" collectors. Fits straight or angle plug heads.

Header Sizing Chart (GIF)

 * See NOTES tab for chassis fitment details.

Chrome Warning: Due to a revised chroming process brought on by recent EPA regulations and high labor costs, today's chrome is not the quality of days gone by. Be Aware: Exhaust components which are chrome plated are now much more susceptible to blueing, blistering, peeling & corrosion. No warranty or returns on chrome exhaust items once them have been installed.

Not legal for sale or use in California on pollution controlled vehicles
