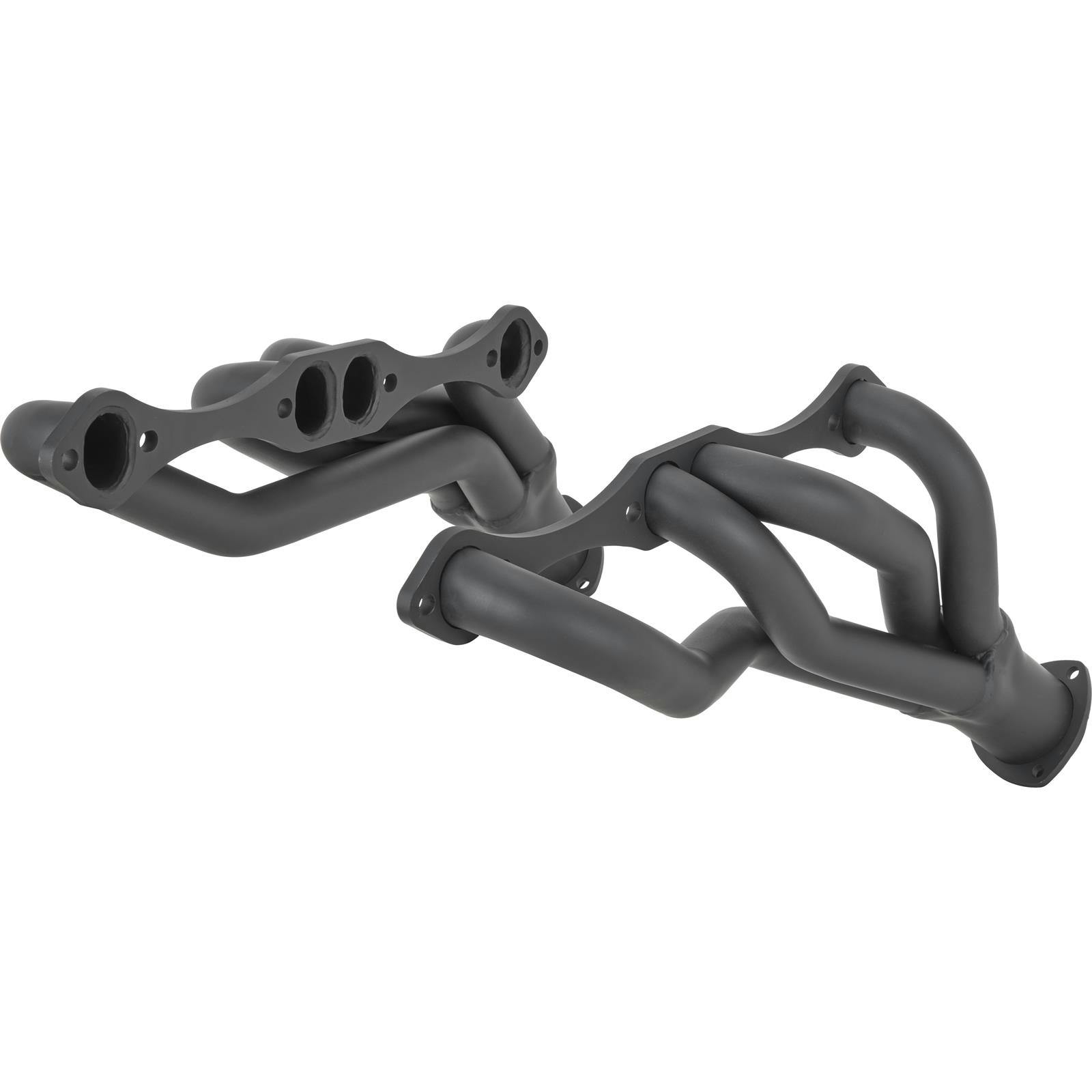

Small Block Chevy Clipster Headers, Black

SAME DAY SHIPPING! Order within the next 16 hours 34 minutes and receive same day shipping

Specs
Material Type:
Steel
Overall Height:
16.00
Sold in Quantity:
Pair
Finish:
Painted
Tube O.D.:
1.63
Port Height:
1.72
Port Width:
1.38
Flange Thickness:
.38
Flange Style:
Round Port
Collector Diameter :
3.00
Header Dimension A:
4.00
Header Dimension B:
16.00
Header Dimension C:
25.00
Gasket(s) Included:
Yes
Hardware Included:
Yes
Drivers Side Dimension A:
6.13
Drivers Side Dimension B:
13.50
Drivers Side Dimension C:
23.00
Passenger Side Dimension A:
4.85
Passenger Side Dimension B:
11.30
Passenger Side Dimension C:
26.38
Collector Length:
5.00
Garage Sale:
No
Header Tube Type:
Mid-Length
Small Block Chevy Clipster Headers, Black
Small Block Chevy Clipster Headers, Black
Small Block Chevy Clipster Headers, Black

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

These S/B Chevy Clipster headers are for 1964-87 GM A*, F* and G-Body cars and fit many street rod applications with uni-body front clip suspensions. Clipster headers use longer primaries than Tight Tucks, yet shorter than full length headers. Collectors exit toward the rear of the engine compartment providing excellent ground clearance on "slammed" applications as well as clearing steering and suspension components.

1-5/8" primaries and 3" collectors. Fits straight or angle plug heads.

Header Sizing Chart (GIF)

WARNING: This header will require the use of Autolite 'short' style spark plugs OR NGK BR8ECM type plugs to be used for clearance purposes.  No other plugs or shorty plugs offered other than Autolite branded 'shorty' plugs will clear.

Application

Applications include, but not limited to:

  • 1967-1981 Camaro
  • 1964-1981 Chevelle, Malibu
  • 1964-1988 El Camino
  • 1968-1979 Nova
  • 1970-1988 Monte Carlo

Notes

  1. Works with angle plug heads.
  2. Will not work with D-port heads.
  3. May interfere with mechanical clutch linkage (substitute headers 930-0109).
  4. If fitting on an early A-Body, #5 primary tube may interfere with steering shaft. Some 'massaging' may be required.
  5. Will not fit with Saginaw Close Ratio 825 Steering Box.
  6. Does not fit 1967-69 Camaro with A/C.
  7. Will fit Detroit Speed & Engineering front subframes with rack and pinion steering.

Customer Reviews

Rated 3.3 out of 5 by 3 reviewers.
RATING BREAKDOWN
3 reviews
5 Stars
1
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
1
RECOMMEND THIS PRODUCT:

WERNER17
CLIFTON SPRINGS N.Y.
Product Rating

# 5 SPARK PLUG IS 1/4" FROM THE HEADER

January 05, 2014
FIT GREAT HOWEVER #5 SPARK PLUG IS SO TIGHT TO THE HEADER I'M NOT EVEN SURE THAT THE SPARK PLUG WIRE WILL FIT WITHOUT TOUCHING. IS THIS A PROBLEM WITH THE HEADER DESIGN OR IS THE SET I HAVE INCORRECTLY WELDED TOGETHER? THE HEADS ARE A STRAIGHT PLUG SET I DID TRY THEM ON A SET OF ANGLE PLUGS AND THERE IS NO REAL DIFFERENCE. ANYBODY ELSE HAVING THIS PROBLEM?
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

SeanT
Livermore CA
Product Rating

Check you r application carefully

September 02, 2010
These are a nice product, HOWEVER, they are advertised as fitting a '64 and up GM "A" body. These WILL NOT fit a '64 - '66 A body as the driver's side header hits the front crossmember. I ordered a set for my '65 Malibu, and they do not fit. The box they came in clearly states "'67-'81 Camaro" They will fit '67-up models.
Pros:
  • Thick flange design
  • Hardware and gaskets
  • Comes with all necessary
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Jon159
Verified Purchaser
Product Rating

100% happy

October 08, 2014
I have a small-block Chevy in my '67 Cutlass and had a hard time finding headers that would fit this application. I stumbled upon these headers and they fit perfectly. I thought the price was very reasonable and the delivery was just as promised. I will definitely recommend this product to others.
Pros:
  • Reasonably Priced
  • Perfect Fit
  • Fast delivery
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1
9300108

Product Q&A

11 questions : 12 answers

1 answers

LT1 fitting? Will these headers fit an LT1 350 small block? I know it has the listed vehicles that it can fit but I am not sure if that camaro year is when they had LT1 in them. Please let me know. I appreciate it in advance.

TauntDevil
Mesa, AZ, USA
February 25, 2014

LT1 fitting? Will these headers fit an LT1 350 small block? I know it has the listed vehicles that it can fit but I am not sure if that camaro year is when they had LT1 in them. Please let me know. I appreciate it in advance.

Answers

February 25, 2014
EricM
Yes these headers will fit an LT1 engine.
1 answers

Headers Will these headers fit on a 1967-1972 chevy truck

Tdimmitt
April 10, 2013

Headers Will these headers fit on a 1967-1972 chevy truck

Answers

April 10, 2013
Jason
Speedway can not guarantee fitment but here is some helpful information to help varify: Will work with angle plug heads Not for manual transmission (clutch linkage issue) Will not work with D-port heads. May interfere with mechanical clutch Will not fit with Saginaw Close Ratio 825 Steering Box. Does not fit 1967-69 Camaro with A/C. Will fit Detroit Speed & Engineering front subframes with rack and pinion steering. The port shape is round,measures app. 1-1/2" id. Width of header at widest point from exhaust port - 4" Height of header from top of flange to lowest point - 16" Length of header from front of flange to collector - 25"
1 answers

Will they fit 1964 nova

Meatcleaver
Utah, USA
February 15, 2013

Will they fit 1964 nova

Answers

February 15, 2013
Jason
These small block chevy clipster headers are not listed to fit the Nova. We do offer the following information to help determine fit: Width of header at widest point from exhaust port - 4.00" Height of header from top of flange to lowest point - 16.00" Length of header from front of flange to collector - 25.00" Tube size - 1-5/8" Collector size - 3.0" Will not work with D-port heads. May interfere with mechanical clutch Will not fit with Saginaw Close Ratio 825 Steering Box. Does not fit 1967-69 Camaro with A/C. Will fit Detroit Speed & Engineering front subframes with rack and pinion steering If fitting on a early "A" body car the #5 primary may interfere with steering shaft
1 answers

I have a 1954 chevy truck with a chassis engineering mustang rack and pinon clip.Will these work with my truck? Thanks

ragmop
January 15, 2013

I have a 1954 chevy truck with a chassis engineering mustang rack and pinon clip.Will these work with my truck? Thanks

Answers

January 15, 2013
Jason
Part number 9300108 These headers are designed for the A, F, and G body cars and your pickup should have sufficient room for clearance. Some basic measuring at home for dimension comparison is always suggested. Below is a chart. Width of header at widest point from exhaust port - 4" Height of header from top of flange to lowest point - 16" Length of header from front of flange to collector - 16" Tube size - 1-5/8" Collector size - 3.00"
1 answers

i have a 61 gmc with a 305 will these work in there?

big Al
Pocatello Idaho
December 04, 2011

i have a 61 gmc with a 305 will these work in there?

Answers

December 05, 2011
John
Part number 9300108 These headers are designed for the A, F, and G body cars and your pickup should have sufficient room for clearance. Some basic measuring at home for dimension comparison is always suggested. Below is a chart. Width of header at widest point from exhaust port - 4" Height of header from top of flange to lowest point - 16" Length of header from front of flange to collector - 16" Tube size - 1-5/8" Collector size - 3.00"
1 answers

I have a '64 Skylark with 350 CI Chevy motor....Will these fit???

Jimbob
Rsbg, OR
November 06, 2011

I have a '64 Skylark with 350 CI Chevy motor....Will these fit???

Answers

November 08, 2011
John
Part # 9300108 These headers should work on your 1964 Skylark with engine in original location. The Mid Size Buick falls in the category of A body GM cars.
1 answers

will these fit 87 s-10 pu with 383 stroker motor? i need 1 5/8 primaries 3 in collectors! thank you!! jeff

January 31, 2011

will these fit 87 s-10 pu with 383 stroker motor? i need 1 5/8 primaries 3 in collectors! thank you!! jeff

Answers

February 03, 2011
Craig
Those headers part # 9300108 will not work with a V8 in the S10 chassis. We do have a header part # 41869520 that is made to work with the Small block Chevy in the S10 chassis. It does have 1 1/2" primaries and they have a 2 1/2" collector but will work in your truck and shouldn't cost you any noticeable amount of power.
1 answers

Will these fit a small block chevy in a 1966 Chevy Truck?

Tracy
Wichita, Ks
October 06, 2011

Will these fit a small block chevy in a 1966 Chevy Truck?

Answers

October 07, 2011
Jason
Speedway can not guarantee fitment but here is some helpful information to help varify. THE MANUFACTURER OF THESE HEADERS SAYS: OK FOR ANGLE PLUG HEADS NOT FOR MANUAL TRANSMISSION (CLUTCH LINKAGE ISSUES)(USE 930-0109) GREAT GROUND CLEARANCE # Will not work with D-port heads. # May interfere with mechanical clutch # Will not fit with Saginaw Close Ratio 825 Steering Box. # Does not fit 1967-69 Camaro with A/C. # Will fit Detroit Speed & Engineering front subframes with rack and pinion steering. The port shape is round,measures app. 1-1/2" id. Width of header at widest point from exhaust port - 4" Height of header from top of flange to lowest point - 16" Length of header from front of flange to collector - 25"
1 answers

Will these headers fit an 89 Chevy 3/4 ton 4x4?

August 13, 2011

Will these headers fit an 89 Chevy 3/4 ton 4x4?

Answers

August 16, 2011
John
Part number 93600108 These headers are quoted as fitting the following applications: * 1967-1981 Camaro * 1964-1981 Chevelle, Malibu * 1964-1988 El Camino * 1968-1979 Nova * 1970-1988 Monte Carlo For possible fit to your application you would need to do some basic homework measuring in relation to the following chart: Width of header at widest point from exhaust port - 4" Height of header from top of flange to lowest point - 16" Length of header from front of flange to collector - 25" Tube size - 1-5/8" Collector size - 3"
2 answers

Hi I have a 1987 monte carlo ss and i need a set of headers for the motor i am dropping into it, its a 383 STROKER with ANGLED plug heads. will these fit?

john
nj
June 04, 2011

Hi I have a 1987 monte carlo ss and i need a set of headers for the motor i am dropping into it, its a 383 STROKER with ANGLED plug heads. will these fit?

Answers

June 08, 2011
Craig
Those headers will fit your chassis and the SBC motor with angled plug heads. There are always many factors to remember for headers so a guaranteed fit can not be made.
June 08, 2011
Cra
Those headers will fit your chassis and the SBC motor with angled plug heads. There are always many factors to remember for headers so a guaranteed fit can not be made.
Page 1 of 2
