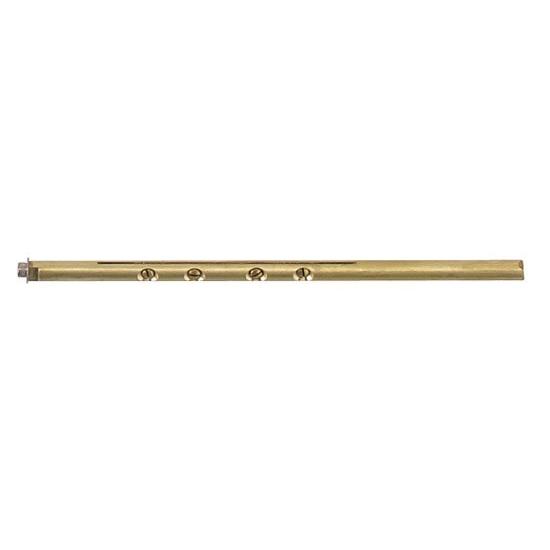

Rochester 2G Extended Primary Carb Shaft

SAME DAY SHIPPING! Order within the next 12 hours 36 minutes and receive same day shipping

Specs
Centerline of Holes:
.700
Material Type:
Brass
Overall Length:
7
Sold in Quantity:
Each
Finish:
Natural
Overall Diameter:
.311
Notes
Works with 1968-earlier "small base" 2GC carburetors. Throttle bores are 1.6".
Rochester 2G Extended Primary Carb Shaft
Rochester 2G Extended Primary Carb Shaft

Click image to enlarge

Speeday Motors Logo
X
Rochester 2G Extended Primary Carb Shaft

Details

Reviews

Q & A

What's in the Box

Extended throttle shaft for Rochester 2G or 2GC carbs. For use in primary carbs in tri-power three deuce setups with progressive linkage. Fits "small base" Rochester 2 barrel carburetors w/ 1.6" throttle bore centers used on 1950's thru approximately 1968 GM cars.

Use with factory throttle plates or aftermarket plates.

  • Shaft Groove:  .039"
  • Factory throttle arm end to 1st butterfly screw hole center:  1.725"
  • Butterfly Screw Hole Centers:  11/16"  (.685")

Specs


Item Details

with Screws

You may also be interested in:

Rochester 2G Extended Secondary Carb Shaft


Extended throttle shaft for Rochester 2G carbs. This shaft is for a secondary carb in a tri-power three deuce setup with progressive linkage. Fits small base 2G and 2GC carbs from the mid '50s through approximately 1968 with throttle bore centers of 1.6".

  • Brass construction
  • 6-7/8" shaft  (6.695")
  • 5/16" diameter  (.312")
  • 6-32 x 1/4" socket head screw at the end
  • 1.645" distance from factory linkage end to 1st butterfly screw hole center
  • 11/16" butterfly screw hole centers  (.685")
Rochester 2G Secondary Carb Throttle Plate


For use on the secondary carbs in a tri-power three deuce setup. Fits small base Rochester 2G and 2GC carbs from the mid '50s through approximately 1968 with throttle bore centers of 1.6".

Two throttle plates required per carburetor. Screws NOT included (sold separately with extended throttle shafts).

Rochester Tri-Power Base Kit with Linkage


There's nothing cooler than a TriPower on your small block, but man are the carbs expensive and hard to find! With this kit you can use three junkyard 2G small base style Rochester carbs and put together a three deuce set-up for a fraction of the cost.  Includes two rebuilt bases for the secondary carbs, gaskets, jets, power valve and modified piston, idle tubes, plugs, hardware and new primary throttle shaft and butterflies. This kit includes an adjustable progressive linkage kit.

910-11569 Instructions (PDF)

Rochester Tri-Power Base Installation Instructions (PDF)

Lokar TRP-4003 Tri-Power Throttle Cable Bracket and Springs, Stainless


Designed for Rochester Tri-Power. Kit includes stainless steel throttle cable bracket and stainless steel springs. Stainless bracket mounts under rear carburetor on Rochester 3-2 set-up. Cables operate from center carburetor. Stainless bracket and dual stainless springs are used to mount Lokar's throttle cable and kickdown assemblies.

  • For Rochester Tri-Power
  • Includes stainless steel throttle cable bracket and stainless steel springs
  • Mounts under rear carburetor on Rochester 3-2 set-up
  • Cables operate from center carburetor
Rochester 2G Primary Carb Throttle Plate


For use on the primary (center) carb in a Tri Power setup. Fits small base Rochester 2G and 2GC carbs from the mid '50s through approximately 1968 with throttle bore centers of 1.6".

Two throttle plates required per carburetor. Screws NOT included (sold separately with extended throttle shafts).
