These kits include our gasser straight front axle, semi-elliptical springs, spindles, king pins, steering arms, tierod kit, brake kit, and hardware. Choose either 5 on 4-1/2" or 5 on 4-3/4" bolt pattern with standard brake kit or Wilwood brake kit. Standard brake kits use new rotors and GM metric style calipers. Brake lines not included. Shocks not included, but shock mounts are included. Assembly required. Gasser Info (PDF) Note : Wilwood brakes increase hub-to-hub width by 1/2". 910-3544 Instructions (PDF)
These kits include our gasser straight front axle, semi-elliptical springs, spindles, king pins, steering arms, tierod kit, brake kit, and hardware. Choose either 5 on 4-1/2" or 5 on 4-3/4" bolt pattern with standard brake kit or Wilwood brake kit. Standard brake kits use new rotors and GM metric style calipers. Brake lines not included. Shocks not included, but shock mounts are included. Assembly required. Gasser Info (PDF) Note : Wilwood brakes increase hub-to-hub width by 1/2". 910-3944 Instructions (PDF)
Our 3" dropped axle for your classic '47-'54 Chevy half-ton pick-up will get the front end down where you want it. The center portion of the axle is made of 2" DOM tubing while the ends are CNC milled for solid steel. These axles give you 3" of drop. The Chevy axles require the steering arm to be modified to accept rod ends or tie rods. U-bolts sold separately. King pin to king pin centers = 50.5" 6" drop measured from spring pad to spindle boss center Axle accepts a ...
This Ultra Lite steel midget axle comes with a staggered spindle inclination. Must use with Ultra Lite midget spindles only try 940-35040. 1/2" hole steel.This item is garage sale priced because it has been discontinued from our current product line.NO WARRANTY NO RETURNS ON GARAGE SALE ITEMS
We offer you the choice of these 4130 chromoly Sprint axles which are replacements for Maxim J&J Eagle and many other chassis. These axles are available in a plain steel finish and are all reamed for correct kingpin fit.44"Works with any chassis8° LF \ 10° RF Camber
This Stallard Micro/Mini Sprint Oval Racing Coil Over Style Front Axle is for torsion bar cars and is jig built for quality and exact fit. 4130 steel constructionForCoilover cars Axle diameter: 1-3/4" Axle wall thickness: .095"Length: 40" center of king pin boss to center of king pin boss Axle king pin bosses are reemed & honed for perfect fit; no need to reem anymore Boss: 1-3/4" in length Left Front: 10 degree Right Front: 10 degree Panhard mount: Threaded 3/8" stud Shock mounts: Threaded FitsTriple X PMP andsimilar Mini-Sprint & ...
These newly redesigned front axles for Sprint racing feature optimized caster/camber splits for precise balance and 9 degree/11 degree king pins. They are 50" long and 2.5" diameter with aero brackets.50" long 2.5" diameter with aero brackets9 degree/11 degree king pinsTotally enclosed LH boss for superior strengthOptimized caster/camber splits for precise balance

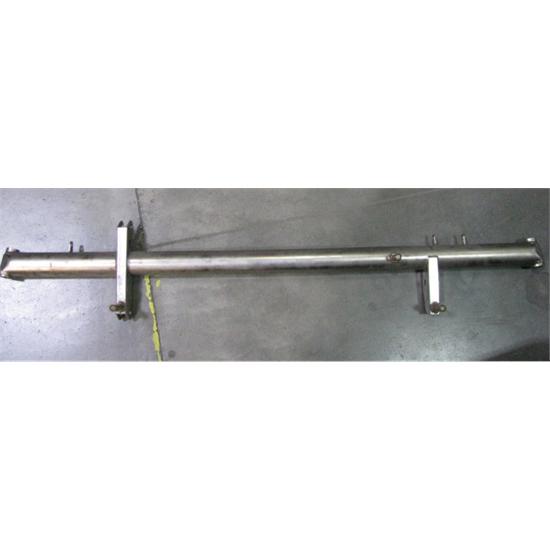

This 2-1/4" x .120 wall axle is 50" 10° kingpin inclination on both sides. This axle is clearance priced because it is different than the ones we currently offer. NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS
We offer you the choice of these 4130 chromoly Sprint axles which are replacements for Maxim, J&J, Eagle, and many other chassis. These axles are available in a plain steel finish and are all reamed for correct kingpin fit. 44" Works with any chassis 8° LF \ 10° RF Camber
Garton Jeep Front AxleSelect the link below to view all parts for your pedal car. Please refer to application tab to double check part fitment. Parts shown in the exploded view but not listed are currently not available. Sorry! Exploded Parts View for Garton Jeep (Link)
Hand crafted front axles are constructed of 2-1/4" diameter, .120" wall 4130 chromoly steel for durability and longevity. Has an 8° left /12° right kingpin inclination. Plain steel finish only. Speedway axles are all reamed for correct kingpin fit. 49" axle built with 1/2" offset 50" axle built with 1-1/2" offset 52" axle built with 3-1/2" offset 53" axle includes sway bar studs Front Axle Geometry (Link) Squaring the Front Axle (Link)
We offer you the choice of these 4130 chromoly Sprint axles which are replacements for Maxim, J&J, Eagle, and many other chassis. These axles are no longer chrome or nickel plated, available in a plain steel finish. Speedway axles are all reamed for correct kingpin fit. The 2-1/2" x .095 wall axle is available on 49" with 1/2" offset, 50" with 1-1/2" offset, or 52" with 3-1/2" offset. It has 8° kingpin inclination on the left and 12° inclination on the right. Front Axle Geometry (Link) Squaring the Front Axle ...
We offer you the choice of these 4130 chromoly Sprint axles which are replacements for Maxim, J&J, Eagle, and many other chassis. These axles are no longer chrome or nickel plated, available in a plain steel finish. Speedway axles are all reamed for correct kingpin fit. The 2-1/4" x .120 wall axle is available on 50" with 1-1/2" offset and has 10° kingpin inclination on both sides. Front Axle Geometry (Link) Squaring the Front Axle (Link)
This Stallard Micro/Mini Sprint Oval Racing Coil Over Style Front Axle is for torsion bar cars and is jig built for quality and exact fit. 4130 steel construction For Coilover cars Axle diameter: 1-3/4" Axle wall thickness: .095" Length: 40" center of king pin boss to center of king pin boss Axle king pin bosses are reemed & honed for perfect fit; no need to reem anymore Boss: 1-3/4" in length Left Front: 10 degree Right Front: 10 degree Panhard mount: Threaded 3/8" stud Shock mounts: Threaded Fits Triple X, PMP, and similar ...
We offer you the choice of these 4130 chromoly Sprint axles which are replacements for Maxim J&J Eagle and many other chassis. These axles are no longer chrome or nickel plated available in a plain steel finish. Speedway axles are all reamed for correct kingpin fit.The 2-1/4" x .120 wall axle is available on 50" with 1-1/2" offset and has 10° kingpin inclination on both sides.Front Axle Geometry (Link)Squaring the Front Axle (Link)
We offer you the choice of these 4130 chromoly Sprint axles which are replacements for Maxim J&J Eagle and many other chassis. These axles are no longer chrome or nickel plated available in a plain steel finish. Speedway axles are all reamed for correct kingpin fit.The 2-1/2" x .095 wall axle is available on 49" with 1/2" offset 50" with 1-1/2" offset or 52" with 3-1/2" offset. It has 8° kingpin inclination on the left and 12° inclination on the right.Front Axle Geometry (Link)Squaring the Front Axle (Link)
Get your sprint car headed in the right direction with a new front axle from J&J. This strong, lightweight, 50” axle has 8- and 12-degree kingpin inclination, and is set up with the necessary brackets and shock bolts so you can install it quickly and go racing. Direct replacement from J&J Necessary mounts and bolts already in place Plain finish allows you to paint your preferred color 50" kingpin to kingpin 8- and 12-degree kingpin inclination 2-3/8" O.D. chromoly tubing
Speedway Double Dropped axles are constructed from 2" x .250" wall steel tubing. They feature welded-on radius rod and spring brackets and work with 1937-1948 Ford style spindles. Spring-Behind Axle design 48" eye-to-eye Use with 26" spring Spring Behind Axle Illustration (GIF) Leaf Spring Measuring Guide (Link) Caster Angle Illustration (GIF)
Get your sprint car headed in the right direction with a new front axle from J&J. This strong lightweight 50” axle has 8- and 12-degree kingpin inclination and is set up with the necessary brackets and shock bolts so you can install it quickly and go racing.Direct replacement from J&JNecessary mounts and bolts already in placePlain finish allows you to paint your preferred color50" kingpin to kingpin8- and 12-degree kingpin inclination2-3/8" O.D. chromoly tubing
Don't cut corners on the foundation of your front suspension! Make sure you use a quality axle like this lightweight steel version from Eagle Chassis. It measures 50" x 2-1/2" and has 8- and 12-degree kingpin inclination. Direct Eagle replacement front axle 50" axle with built-in offset for steering arm clearance NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS
4" Drop 47" Wide Accepts stock or new '37-'48 Ford spindles Use with 29" spring 34" perch centers Front Axle/Suspension Tech Tips (GIF)
Hand crafted front axles are constructed of 2-1/4" diameter .120" wall 4130 chromoly steel for durability and longevity. Has an 8° left /12° right kingpin inclination. Plain steel finish only. Speedway axles are all reamed for correct kingpin fit.49" axle built with 1/2" offset50" axle built with 1-1/2" offset52" axle built with 3-1/2" offset 53" axle includes sway bar studsFront Axle Geometry (Link)Squaring the Front Axle (Link)
Speedways 3" drop tube axles are a one-piece design featuring precision welded ends and perch bolt holes. Axle is formed from high strength 2" x .250" wall steel tubing. Use with 1937-48 Ford style spindles. Leaf Spring Measuring Guide (Link) Caster Angle Illustration (GIF)
Speedway 3" drop tube axles are a one-piece design featuring precision welded ends and perch bolt holes. Axle is formed from high strength 2" x .250" wall steel tubing. Use with 1949-1954 Chevy-style spindles. Leaf Spring Measuring Guide (Link) Caster Angle Illustration (GIF)
